CA-632146 - Tecumseh Carburetor Carburetor Parts Diagram

Carburetor

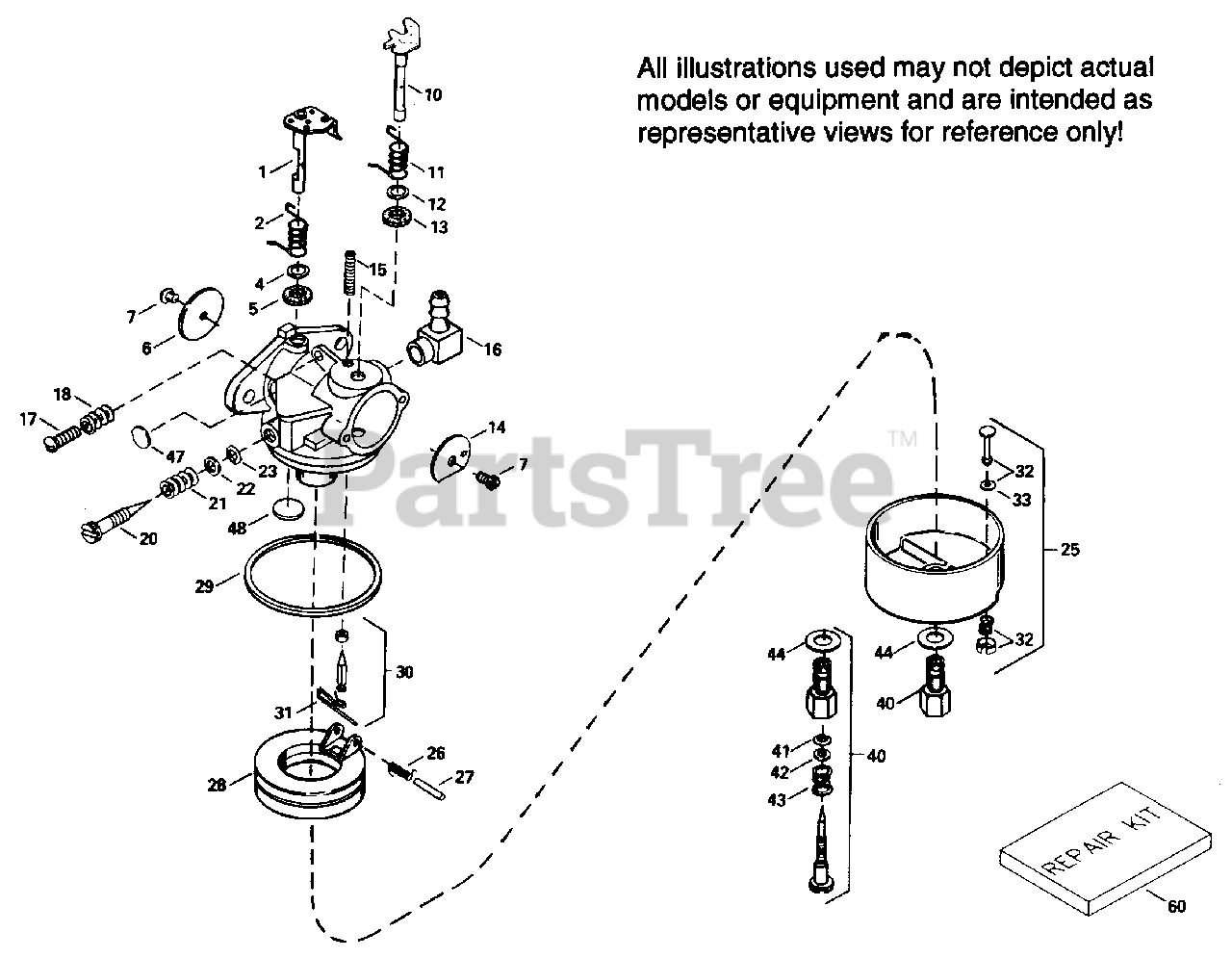

Carburetor Parts Diagram

  • Title

Tecumseh 632146

"Carburetor

$75.99

$

Usually ships in 3-12 days

0

1

Tecumseh 631615

Throttle Shaft & Lever Assy.

$9.49

$

Usually ships in 3-12 days

0

2

Tecumseh 631767

Throttle Return Spring

$1.99

$

In Stock, only 4 left!

0

4

Tecumseh 631184

Dust Seal Washer

$1.99

$

In Stock, Qty 17

0

5

Tecumseh 631971

Dust Seal (Throttle)
(Superseded to 631183)

$1.99

$

In Stock, Qty 12

0

6

Tecumseh 631036

Throttle Shutter

$1.99

$

In Stock, only 1 left!

0

7

Tecumseh 650506

Throttle & Choke Shutter Screw

$1.49

$

In Stock, Qty 17

0

10

Tecumseh 632145

Choke Shaft & Lever Assy.

$7.49

$

Usually ships in 3-12 days

0

11

Tecumseh 632042

Choke Return Spring

$4.49

$

Usually ships in 3-12 days

0

12

Tecumseh 631184

Dust Seal Washer (Choke)

$1.99

$

In Stock, Qty 17

0

13

Tecumseh 631183

Dust Seal (Choke)

$1.99

$

In Stock, Qty 12

0

14

Tecumseh 31837

Choke Shutter

$1.99

$

In Stock, only 1 left!

0

15

Tecumseh 630735

Choke Positioning Spring

$1.99

$

In Stock, only 4 left!

0

16

Tecumseh 632527

Fuel Fitting

$8.49

$

In Stock, only 2 left!

0

17

Tecumseh 650417

Idle Speed Screw
(Superseded to 651025)

$1.99

$

In Stock, Qty 5

0

18

Tecumseh 630766

Tension Spring

$1.99

$

In Stock, only 2 left!

0

20

Tecumseh 631838

* Idle Mixture Screw

$3.99

$

In Stock, only 2 left!

0

21

Tecumseh 630766

Idle Tension Spring

$1.99

$

In Stock, only 2 left!

0

22

Tecumseh 630739

Washer, Idle Screw

$1.99

$

In Stock, Qty 7

0

23

Tecumseh 630740

* O Ring, Idle Screw

$2.49

$

Usually ships in 3-12 days

0

25

Tecumseh 631867

Float Bowl

$3.49

$

In Stock, Qty 12

0

27

Tecumseh 631024

* Shaft, Float

$1.99

$

In Stock, Qty 11

0

28

Tecumseh 632019

Float
(Superseded to 632019A)

$7.49

$

In Stock, Qty 12

0

29

Tecumseh 631028

* O Ring, Float Bowl to Body
(Superseded to 631028A)

$2.49

$

In Stock, Qty 15

0

30

Tecumseh 631021

* Inlet Needle, Seat & Clip (Incl. 31)
(Superseded to 631021B)

$6.99

$

Usually ships in 3-12 days

0

31

Tecumseh 631022

Spring Clip

$1.99

$

In Stock, only 4 left!

0

40

Tecumseh 31839

* Main Adj.Screw Assy. Incl. 41 thru 44

$15.99

$

Usually ships in 3-12 days

0

41

Tecumseh 630740

* O Ring, High Speed Mixture Screw

$2.49

$

Usually ships in 3-12 days

0

42

Tecumseh 630739

Washer, High Speed Mixture Screw

$1.99

$

In Stock, Qty 7

0

43

Tecumseh 630738

Tension Spring, High Speed Mixture Sc rew

$1.99

$

In Stock, Qty 9

0

44

Tecumseh 27110

* Bowl Nut Washer
(Superseded to 27110A)

$2.49

$

Usually ships in 3-12 days

0

47

Tecumseh 630748

* Welch Plug, Idle Mixture Well

$1.99

$

In Stock, only 3 left!

0

48

Tecumseh 631027

* Welch Plug, Atmospheric Vent

$1.99

$

In Stock, only 2 left!

0

60

Tecumseh 31840

Repair Kit (Incl. Parts Marked with * )

$20.99

$

In Stock, only 3 left!

0
