CA-632139 - Tecumseh Carburetor Carburetor Parts Diagram

Carburetor

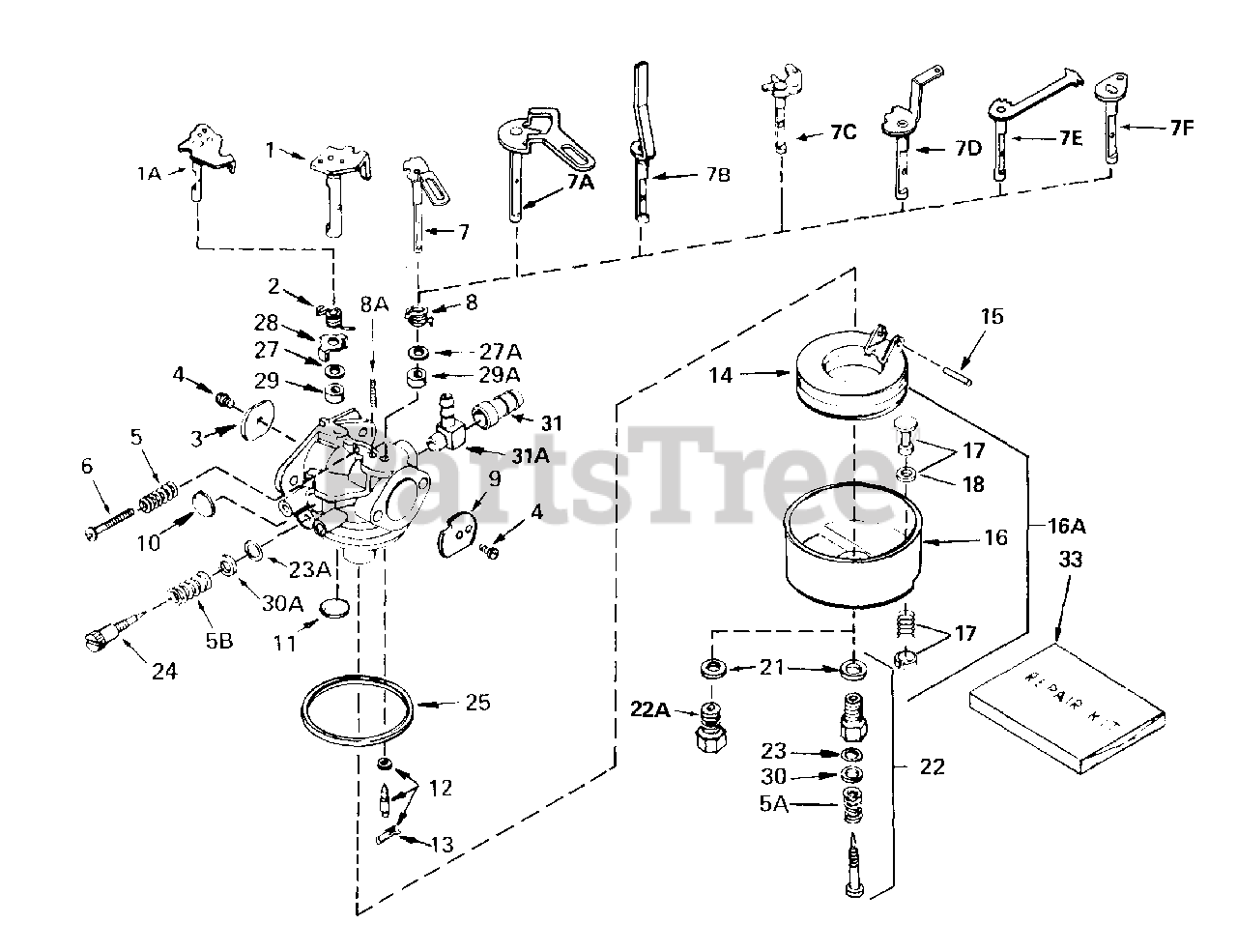

Carburetor Parts Diagram

  • Title
1

Tecumseh 631776A

"Shaft & Lever Assy., Throttle

$16.99

$

Usually ships in 3-12 days

0

2

Tecumseh 631970

Spring, Throttle return

$4.49

$

Usually ships in 3-12 days

0

3

Tecumseh 631778

Shutter, Throttle

$1.99

$

In Stock, only 3 left!

0

4

Tecumseh 650506

Screw, Throttle & Choke shutter

$1.49

$

In Stock, Qty 17

0

5

Tecumseh 630766

Spring, Adj.

$1.99

$

In Stock, only 2 left!

0

5A

Tecumseh 630738

Spring, Adj. screw

$1.99

$

In Stock, Qty 9

0

5B

Tecumseh 630766

Spring, Adj. screw

$1.99

$

In Stock, only 2 left!

0

6

Tecumseh 650417

Screw, Idle regulating
(Superseded to 651025)

$1.99

$

In Stock, Qty 5

0

7C

Tecumseh 631779

Shaft & Lever Assy., Choke

$7.49

$

In Stock, only 2 left!

0

8

Tecumseh 631780A

Spring, Choke return
(Superseded to 631780B)

$1.99

$

In Stock, Qty 6

0

9

Tecumseh 631753

Shutter, Choke

$1.99

$

In Stock, only 4 left!

0

10

Tecumseh 630748

Plug, Welch

$1.99

$

In Stock, only 3 left!

0

11

Tecumseh 631027

Plug, Welch

$1.99

$

In Stock, only 1 left!

0

12

Tecumseh 631021

Inlet Needle, Seat & Clip Assy.
(Superseded to 631021B)

$6.99

$

In Stock, only 4 left!

0

13

Tecumseh 631022

Clip, Inlet needle

$1.99

$

In Stock, only 4 left!

0

14

Tecumseh 632019

Float, Carburetor
(Superseded to 632019A)

$7.49

$

In Stock, Qty 10

0

15

Tecumseh 631024

Shaft, Float

$1.99

$

In Stock, Qty 11

0

16

Tecumseh 631867

Bowl, Float

$3.49

$

In Stock, Qty 12

0

21

Tecumseh 27110

Gasket, Bowl-to-body
(Superseded to 27110A)

$2.49

$

Usually ships in 3-12 days

0

22

Tecumseh 631583

Adj. Screw Assy., Main

$14.99

$

Usually ships in 3-12 days

0

23

Tecumseh 630740

"O" Ring, Adj. screw

$2.49

$

Usually ships in 3-12 days

0

23A

Tecumseh 630740

"O" Ring, Adj. screw

$2.49

$

Usually ships in 3-12 days

0

24

Tecumseh 630898

Screw, Idle adj.

$2.49

$

In Stock, Qty 8

0

25

Tecumseh 631028

Gasket, Bowl-to-body
(Superseded to 631028A)

$2.49

$

In Stock, Qty 12

0

27

$1.99

$

In Stock, Qty 17

0

27A

$1.99

$

In Stock, Qty 17

0

28

Tecumseh 631972

Retainer, Seal

$1.99

$

Usually ships in 3-12 days

0

29

Tecumseh 631971

Seal, Dust
(Superseded to 631183)

$1.99

$

In Stock, Qty 12

0

29A

Tecumseh 631183

Seal, Dust

$1.99

$

In Stock, Qty 12

0

30A

Tecumseh 630739

Washer, Flat

$1.99

$

In Stock, Qty 7

0

30

Tecumseh 630739

Washer, Flat

$1.99

$

In Stock, Qty 7

0

31A

Tecumseh 631775

Fitting, Fuel
(Superseded to 632527)

$8.49

$

In Stock, only 2 left!

0

33

Tecumseh 631978

Repair Kit

$15.99

$

Usually ships in 3-12 days

0
