CA-631550 - Tecumseh Carburetor Carburetor Parts Diagram

Carburetor

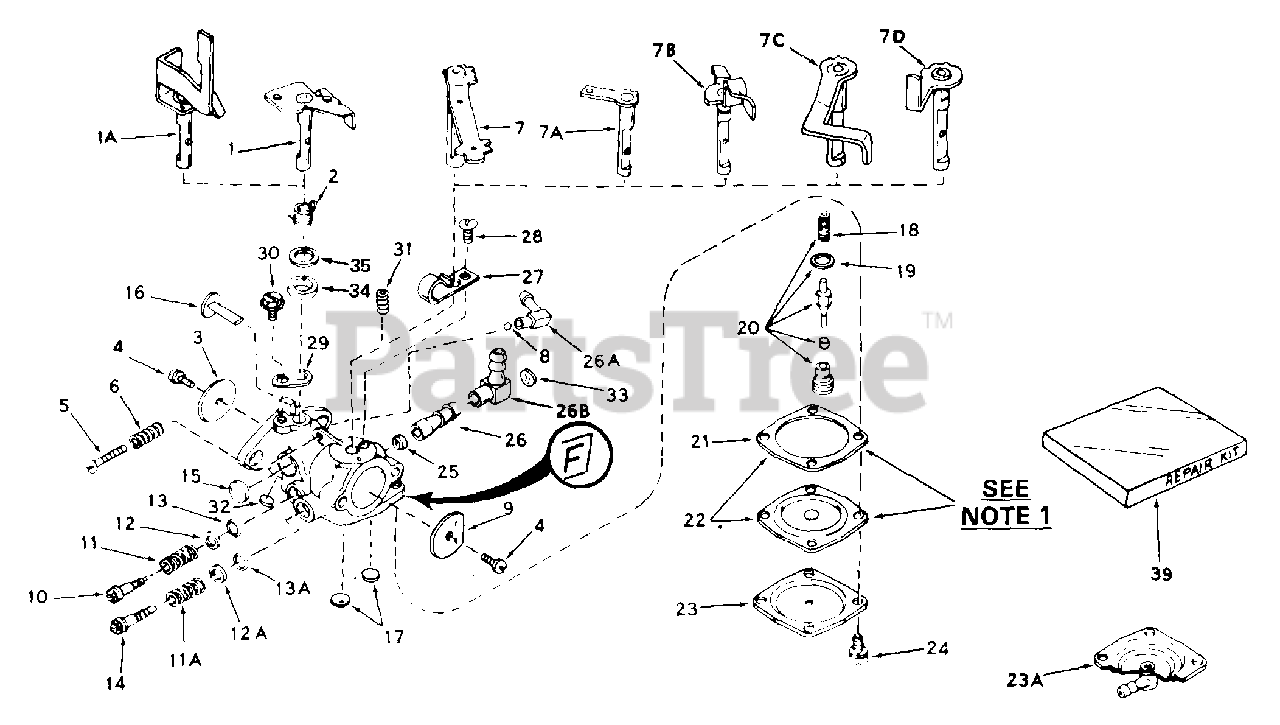

Carburetor Parts Diagram

  • Title
1A

Tecumseh 31296

"Shaft & Lever Assy., Throttle

$

$

Currently unavailable

2

Tecumseh 631066

Spring, Throttle return

$

$

Not available

3

Tecumseh 631036

Shutter, Throttle

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650506

Screw, Throttle & Choke shutter

$1.49

$

In Stock, Qty 14

0

5

Tecumseh 650417

Screw, Idle regulating
(Superseded to 651025)

$1.99

$

In Stock, only 4 left!

0

6

Tecumseh 630766

Spring, Idle Regulating Screw

$1.99

$

In Stock, Qty 5

0

7C

Tecumseh 30971

Shaft & Lever Assy., Choke
(Superseded to 590535)

$9.49

$

In Stock, Qty 12

0

9

Tecumseh 630736

Shutter, Choke

$3.49

$

Usually ships in 3-12 days

0

10

Tecumseh 631562

Screw, Idle adj

$5.49

$

In Stock, Qty 11

0

11

Tecumseh 630738

Spring, Adj. screw

$1.99

$

In Stock, Qty 8

0

11A

Tecumseh 630738

Spring, Adj. screw

$1.99

$

In Stock, Qty 8

0

12A

Tecumseh 630739

Washer, Adj. screw

$1.99

$

In Stock, Qty 6

0

12

Tecumseh 630739

Washer, Adj. screw

$1.99

$

In Stock, Qty 6

0

13

Tecumseh 630740

"O" Ring, Adj. screw

$2.49

$

Usually ships in 3-12 days

0

13A

Tecumseh 630740

"O" Ring, Adj. screw

$2.49

$

Usually ships in 3-12 days

0

14

Tecumseh 630737

Screw, Main adj

$5.99

$

Usually ships in 3-12 days

0

15

Tecumseh 630748

Plug, Welch

$1.99

$

In Stock, only 1 left!

0

17

Tecumseh 630746

Plug, Welch
(Superseded to 632554)

$1.99

$

In Stock, only 1 left!

0

18

Tecumseh 631049

Spring, Valve

$1.99

$

In Stock, only 1 left!

0

19

Tecumseh 630742

Gasket, Valve seat

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 630932A

Inlet Needle, Seat, Gasket & Spring A ssy.

$9.49

$

In Stock, Qty 11

0

21

Tecumseh 630750

Gasket, Diaphragm
(Superseded to 630750A)

$4.49

$

In Stock, only 2 left!

0

22

Tecumseh 630978

Diaphragm Assy.

$5.99

$

In Stock, only 4 left!

0

23

Tecumseh 630751

Cover, Diaphragm

$12.99

$

Usually ships in 3-12 days

0

24

Tecumseh 650545

Screw, Cover

$1.99

$

Usually ships in 3-12 days

0

26B

Tecumseh 631289

Fitting, Fuel inlet

$

$

Currently unavailable

29

Tecumseh 630955

Retainer, Throttle shaft

$

$

Not available

31

Tecumseh 630735

Spring, Choke positioning

$1.99

$

In Stock, only 4 left!

0

39

Tecumseh 631893

Repair Kit
(Superseded to 631893A)

$23.99

$

In Stock, Qty 5

0
