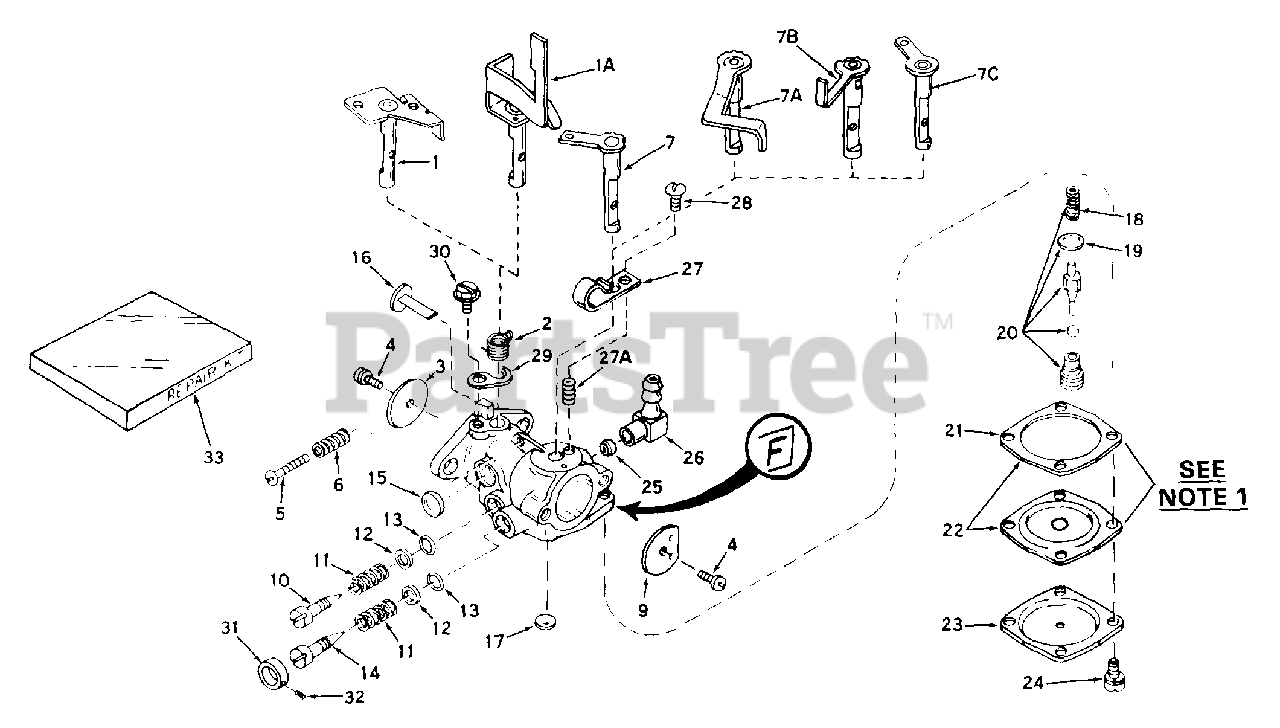

Carburetor Parts Diagram

  • Title
1

Tecumseh 631059

"Shaft & Lever Assy., Throttle

$

$

Currently unavailable

2

Tecumseh 631045

Spring, Throttle return

$0.99

$

Usually ships in 3-12 days

0

3

Tecumseh 631036

Shutter, Throttle

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650506

Screw, Shutter, 4-40 x 3/16

$1.49

$

In Stock, Qty 14

0

5

Tecumseh 650417

Screw, Idle regulating, 8-32 x 3/4
(Superseded to 651025)

$1.99

$

In Stock, only 4 left!

0

6

Tecumseh 630766

Spring, Idle speed screw

$1.99

$

In Stock, Qty 5

0

7B

Tecumseh 631076

Shaft, Lever Assy., Choke

$

$

Currently unavailable

9

Tecumseh 630736

Shutter, Choke

$3.49

$

Usually ships in 3-12 days

0

10

Tecumseh 631562

Screw, Idle adjustment

$5.49

$

In Stock, Qty 11

0

11

Tecumseh 630738

Spring, Adjustment screw

$1.99

$

In Stock, Qty 8

0

12

Tecumseh 630739

Washer, Adjustment screw

$1.99

$

In Stock, Qty 6

0

13

Tecumseh 630740

"O" Ring, Adjustment screw

$2.49

$

Usually ships in 3-12 days

0

14

Tecumseh 630737

Screw, Main adj.

$5.99

$

Usually ships in 3-12 days

0

15

Tecumseh 630748

Plug, Welch

$1.99

$

In Stock, only 1 left!

0

17

Tecumseh 630746

Plug, Welch
(Superseded to 632554)

$1.99

$

In Stock, only 1 left!

0

18

Tecumseh 631049

Spring, Valve

$1.99

$

In Stock, only 1 left!

0

19

Tecumseh 630742

Gasket, Valve seat

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 630932A

Inlet Needle, Seat, Gasket & Spring A ssy.

$9.49

$

In Stock, Qty 11

0

21

Tecumseh 630750

Gasket, Diaphragm
(Superseded to 630750A)

$4.49

$

In Stock, only 2 left!

0

22

Tecumseh 630978

Diaphragm Assy.

$5.99

$

In Stock, only 4 left!

0

23

Tecumseh 630751

Cover, Diaphragm

$12.99

$

Usually ships in 3-12 days

0

24

Tecumseh 650545

Screw, Cover

$1.99

$

Usually ships in 3-12 days

0

26

Tecumseh 631775

Fitting, Fuel line
(Superseded to 632527)

$8.49

$

In Stock, only 1 left!

0

27

Tecumseh 631048

Spring, Detent

$

$

Currently unavailable

28

$1.49

$

Usually ships in 3-12 days

0

29

Tecumseh 630955

Retainer, Throttle shaft

$

$

Not available

30

$1.99

$

Usually ships in 3-12 days

0

33

Tecumseh 631893

Repair Kit
(Superseded to 631893A)

$23.99

$

In Stock, Qty 5

0
