CA-630905 - Tecumseh Carburetor Carburetor Parts Diagram

Carburetor

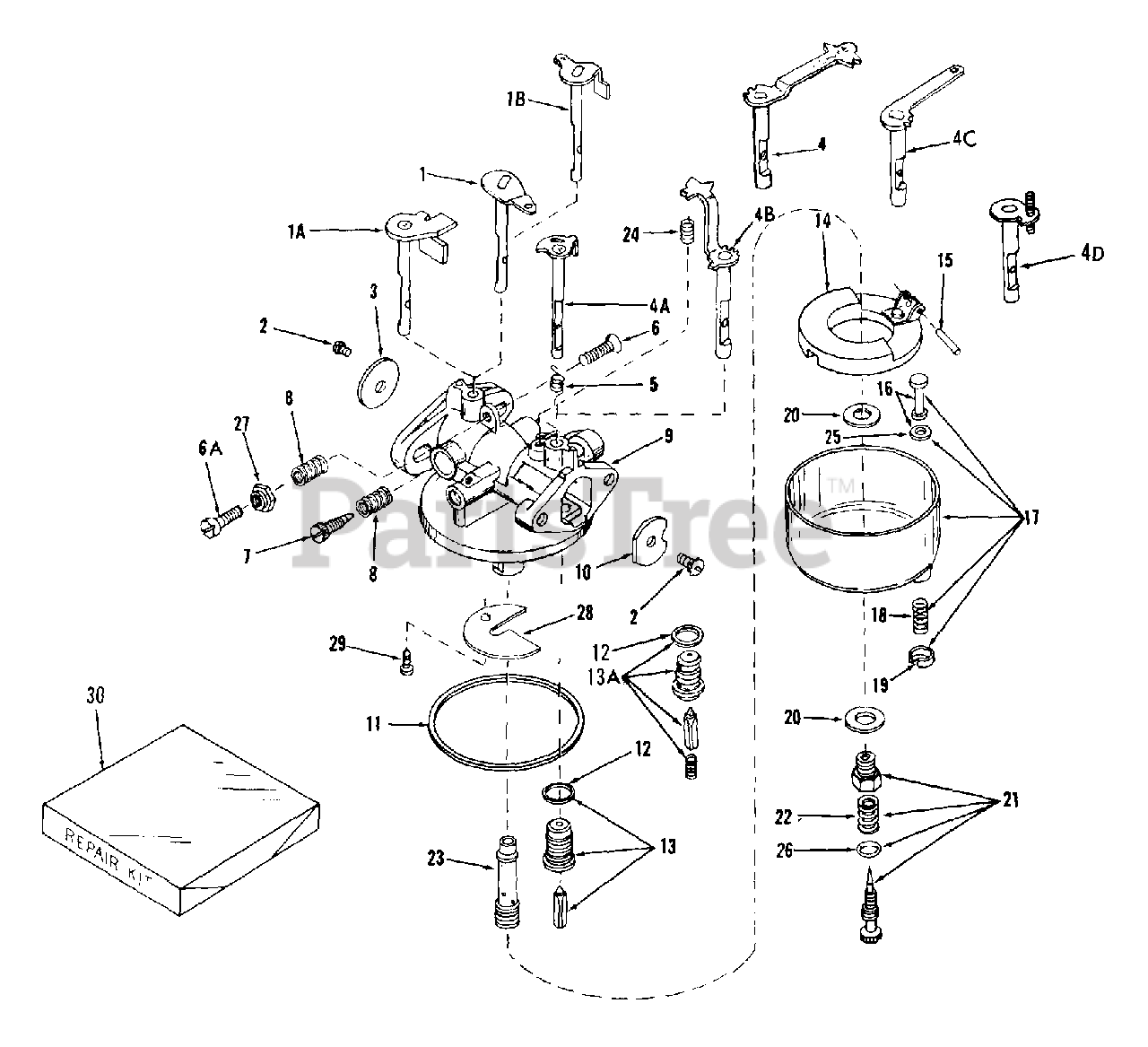

Carburetor Parts Diagram

  • Title
1

Tecumseh 30855

"Shaft & Lever Assy., Throttle

$

$

Currently unavailable

2

Tecumseh 30357

Screw, Sems, 6-32 x 3/16

$3.99

$

Usually ships in 3-12 days

0

3

Tecumseh 30726

Shutter, Throttle

$

$

Currently unavailable

4

Tecumseh 30716

Shaft & Lever Assy., Choke

$

$

Currently unavailable

6

Tecumseh 30717

Screw, Throttle adjusting

$

$

Currently unavailable

8

Tecumseh 27114

Spring, Adj. needle

$3.99

$

In Stock, only 1 left!

0

9

Tecumseh 30854

Body Assy., Carburetor

$

$

Currently unavailable

10

Tecumseh 28924

Shutter, Choke

$

$

Currently unavailable

11

Tecumseh 30356

Gasket, Bowl-to-body

$

$

Not available

12

Tecumseh 27108

Gasket, Seat

$

$

Not available

13

Tecumseh 29154

Valve, Seat & Gasket Assy. (Incl. No. 12)

$12.99

$

Usually ships in 3-12 days

0

14

$22.99

$

Usually ships in 3-12 days

0

15

Tecumseh 27106

Shaft, Float

$2.99

$

In Stock, only 1 left!

0

16

Tecumseh 27136

Stem Assy., Bowl drain
(Superseded to 27136A)

$7.49

$

In Stock, only 1 left!

0

17

Tecumseh 30350

Bowl Assy.
(Superseded to 32131)

$15.99

$

Usually ships in 3-12 days

0

18

Tecumseh 27137

Spring, Bowl drain
(Superseded to 27136A)

$7.49

$

In Stock, only 1 left!

0

19

Tecumseh 27138

Retainer, Bowl drain stem .
(Superseded to 27136A)

$7.49

$

In Stock, only 1 left!

0

20

Tecumseh 27110

Gasket, Bowl-to-body
(Superseded to 27110A)

$2.49

$

Usually ships in 3-12 days

0

21

Tecumseh 28945

Neede Assy., Power adjusting (Inc.22, 26)

$

$

Not available

22

Tecumseh 630786

Spring, Power needle

$1.99

$

In Stock, only 1 left!

0

23

Tecumseh 30355

Nozzle, Main

$

$

Not available

24

Tecumseh 27113

Spring, Choke stop

$3.99

$

In Stock, only 1 left!

0

25

Tecumseh 27554

Gasket, Drain stem

$1.49

$

In Stock, Qty 16

0

26

Tecumseh 27544

"O" Ring

$1.99

$

In Stock, Qty 7

0

27

Tecumseh 30719

Nut, Flexloc

$

$

Currently unavailable

30

Tecumseh 30359

Repair Kit

$

$

Not available
