CA-630795A - Tecumseh Carburetor Carburetor Parts Diagram

Carburetor

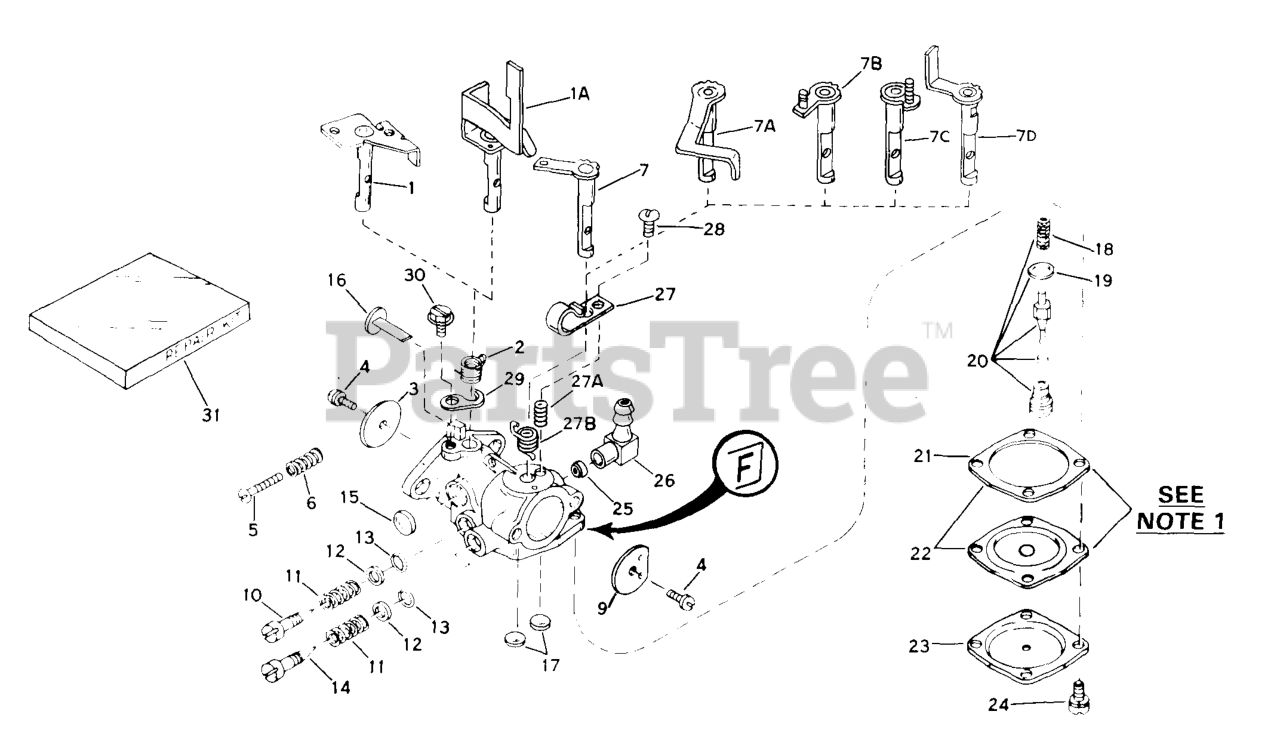

Carburetor Parts Diagram

  • Title
1

Tecumseh 630796

Shaft & Lever Assy, Throttle

Note:

$

$

Currently unavailable

2

Tecumseh 631045

Spring, Throttle return

Note:

$0.99

$

Usually ships in 3-12 days

0

3

Tecumseh 630733

Shutter, Throttle
(Superseded to 631036)

Note:

$1.99

$

Usually ships in 3-12 days

0

4

Tecumseh 650446

Screw, Shutter

Note:

$

$

Currently unavailable

5

Tecumseh 650417

Screw, Idle regulating
(Superseded to 651025)

Note:

$1.99

$

In Stock, only 4 left!

0

6

Tecumseh 630766

Spring, Idle speed screw

Note:

$1.99

$

In Stock, Qty 5

0

7

Tecumseh 630977

Shaft & Lever Assy., Choke

Note:

$

$

Currently unavailable

9

Tecumseh 630736

Shutter, Choke

Note:

$3.49

$

Usually ships in 3-12 days

0

10

Tecumseh 631562

Screw, Idle adj

Note:

$5.49

$

In Stock, Qty 11

0

11

Tecumseh 630738

Spring, Adj. screw

Note:

$1.99

$

In Stock, Qty 8

0

12

Tecumseh 630739

Washer, Adj. screw

Note:

$1.99

$

In Stock, Qty 6

0

13

Tecumseh 630740

O-Ring, Adj. screw

Note:

$2.49

$

Usually ships in 3-12 days

0

14

Tecumseh 630737

Screw, Main adj

Note:

$5.99

$

Usually ships in 3-12 days

0

15

Tecumseh 630748

Plug, Welch

Note:

$1.99

$

In Stock, only 1 left!

0

17

Tecumseh 630746

Plug, Welch
(Superseded to 632554)

Note:

$1.99

$

In Stock, only 1 left!

0

18

Tecumseh 631049

Spring, Valve

Note:

$1.99

$

In Stock, only 1 left!

0

19

Tecumseh 630742

Gasket, Valve seat

Note:

$1.99

$

Usually ships in 3-12 days

0

20

Tecumseh 630932A

Inlet Needle, Seat, Gasket & Spring A ssy.

Note:

$9.49

$

In Stock, Qty 11

0

21

Tecumseh 630750

Gasket, Diaphragm
(Superseded to 630750A)

Note:

$4.49

$

In Stock, only 2 left!

0

22

Tecumseh 630978

Diaphragm Assy, (Incl. No. 21)

Note:

$5.99

$

In Stock, only 4 left!

0

23

Tecumseh 630751

Cover, Diaphragm

Note:

$12.99

$

Usually ships in 3-12 days

0

24

Tecumseh 650545

Screw, Cover

Note:

$1.99

$

Usually ships in 3-12 days

0

26

Tecumseh 631854

Fitting, Fuel line
(Superseded to 632527)

Note:

$8.49

$

In Stock, only 1 left!

0

27A

Tecumseh 630735

Spring, Choke stop

Note:

$1.99

$

In Stock, only 4 left!

0

31

Tecumseh 631893

Repair Kit
(Superseded to 631893A)

Note:

$23.99

$

In Stock, Qty 5

0
