CA 330 (31AH57K9897) - Columbia 30" Snow Thrower (2014) Drive Assembly Parts Diagram

30" Snow Thrower

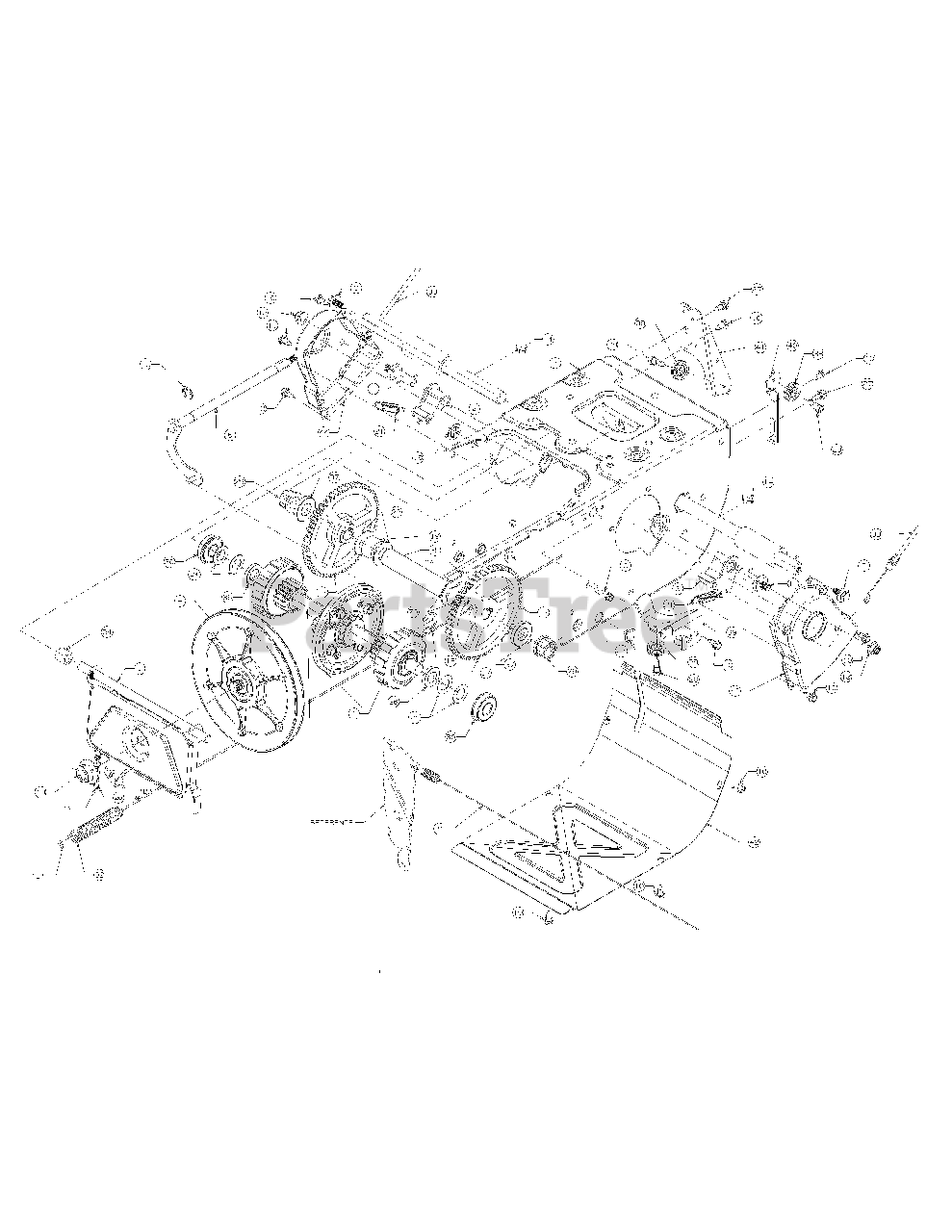

Drive Assembly Parts Diagram

  • Title

1

MTD 918-06072

Shift Asm-Plntr

$444.99

$

Usually ships in 3-6 days

0

2

MTD 618-06987

Dogg Asm-Rh

$21.99

$

In Stock, only 1 left!

0

3

MTD 618-06988

Dogg Asm-Lh

$21.99

$

Usually ships in 3-6 days

0

4

MTD 656-04055

Disc Assy-Friction
(Superseded to 656-04055A)

$59.99

$

In Stock, Qty 20+

0

5

MTD 684-04154B-0637

Bracket Assy-Support

$41.99

$

Usually ships in 3-6 days

0

6

MTD 684-04156A

Shift Asm-Rod S/T

$61.99

$

Usually ships in 3-6 days

0

7

MTD 684-05041

Frame Asm-Drive
(Superseded to 684-05041B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-05041-0606

FRAME ASM-DRIVE - MAJESTIC ORANGE (0606)

$101.99

$

Usually ships in 3-6 days

0

MTD 684-05041-0637

FRAME ASM-DRIVE - POWDER BLACK (0637)

$108.99

$

Usually ships in 3-6 days

0

MTD 684-05041-0638

FRAME ASM-DRIVE - MTD/TROY-BILT RED (0638)

$101.99

$

Usually ships in 3-6 days

0

MTD 684-05041-0691

FRAME ASM-DRIVE - BLACK JACK (0691)

$101.99

$

Usually ships in 3-6 days

0

MTD 684-05041-4021

FRAME-DRIVE HSG - CUB YELLOW 2 (4021)

$101.99

$

Usually ships in 3-6 days

0

$101.99

$

Usually ships in 3-6 days

0

8

MTD 710-05339

Hhcs-5/16-24 X .75
(Superseded to 710-05339A)

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0788

Screw-Tap 1/4-20

$7.49

$

In Stock, only 2 left!

0

10

MTD 710-1652

Screw Hex.Wash.Hd 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

11

MTD 711-1268B

Shaft:Actr:Dr 500 S/

$10.99

$

Usually ships in 3-6 days

0

12

MTD 712-04065

Nut-Flange Lk.Nylo

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-0417A

HEX NUT

$6.99

$

In Stock, Qty 20+

0

14

MTD 914-0126

Key 3/16 X 3/4 H
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 12

0

15

MTD 916-0104

Ring-E For .500

$3.99

$

In Stock, Qty 20+

0

16

MTD 716-0136

Ring-Retaining-E T

$8.99

$

In Stock, Qty 20+

0

17

MTD 917-04210

Gear-56T

$79.99

$

Usually ships in 3-6 days

0

18

MTD 726-0221

Cap-Push

$6.49

$

In Stock, only 2 left!

0

19

MTD 731-05297

Spacer: .76Id X .7

$9.99

$

In Stock, only 1 left!

0

20

MTD 932-0264

Spring-Extension

$4.99

$

In Stock, Qty 20+

0

21

MTD 732-04345

Spring:Extension

$10.99

$

Usually ships in 3-6 days

0

22

MTD 735-04063A

Plug-Hole 5/8

$3.99

$

Usually ships in 3-6 days

0

23

MTD 736-0188

Washer-Fl-.760Id X

$4.49

$

In Stock, Qty 20+

0

24

MTD 736-05031

Washer-Flat .67X 1

$3.49

$

Usually ships in 3-6 days

0

25

Grease

Note: (purchase locally)

$

$

Not available

26

Grease

Note: (purchase locally)

$

$

Not available

27

MTD 738-04184A

Screw:Shoulder

$6.99

$

In Stock, Qty 8

0

28

MTD 738-0924A

Screw-1/4-28 X .32

$6.99

$

In Stock, Qty 5

0

29

MTD 941-0245

Flange Bearing

$9.99

$

In Stock, Qty 20+

0

30

MTD 941-0563

Ball Bearing

$36.99

$

In Stock, Qty 11

0

31

MTD 946-04230A

Cable: Clutch
(Superseded to 946-04230B)

$23.99

$

In Stock, Qty 20+

0

32

MTD 946-05067

Cable-Drive Whe

$25.99

$

In Stock, Qty 20+

0

33

MTD 946-0956C

Cable-Steering

$23.99

$

In Stock, Qty 20+

0

34

MTD 748-0190

Spacer-.513 Id X .

$6.49

$

In Stock, Qty 11

0

35

MTD 750-04474

Tube:Supt:Axle

$42.99

$

In Stock, only 1 left!

0

36

MTD 750-06087

Spacer

$4.49

$

In Stock, only 2 left!

0

37

MTD 750-0767

Spacer-Axle

$5.99

$

Usually ships in 3-6 days

0

38

MTD 756-0625

Roller-Cable Guide

$9.49

$

In Stock, Qty 14

0

39

MTD 790-00096A-0637

Bracket-Auger Cable
(Superseded to 790-00096B-0637)

$9.49

$

In Stock, only 2 left!

0

40

MTD 790-00206A-0637

Bracket:G
(Superseded to 790-00206B)

$8.49

$

In Stock, only 1 left!

0

41

MTD 790-00207C

Bracket-Guide Clutch
(Superseded to 790-03997)

$5.49

$

In Stock, Qty 6

0

42

MTD 790-00316

Cover-Frame Snowth

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00316-0637

Frame Snowth Cover - POWDER BLACK (0637)

$47.99

$

In Stock, Qty 6

0

MTD 790-00316-4021

Snowthrower Frame Cover - CUB YELLOW 2 (4021)

$47.99

$

In Stock, only 4 left!

0

MTD 790-00316-0606

Snowthrower Frame Cover - MAJESTIC ORANGE (0606)

$47.99

$

Usually ships in 3-6 days

0

MTD 790-00316-0638

Frame Snowth Cover - MTD/TROY-BILT RED (0638)

$47.99

$

In Stock, Qty 5

0

MTD 790-00316-4033

Snowthrower Frame Cover - FLINT MICA (4033)

$47.99

$

Usually ships in 3-6 days

0

MTD 790-00316-4043

COVER-SNWTH FRAME - CRAFTSMAN METALLIC GRAY (4043)

$44.99

$

Usually ships in 3-6 days

0

MTD 790-00316-0691

Frame Snowth Cover - BLACK JACK (0691)

$47.99

$

Usually ships in 3-6 days

0

MTD 790-00316-0662

COVER-FRAME SNOWTH - OYSTER GRAY (0662)

$47.99

$

Usually ships in 3-6 days

0

MTD 790-00316-0665

COVER-FRAME SNOWTH - YARDMAN GREEN (0665)

$44.99

$

Usually ships in 3-6 days

0

MTD 790-00316-0667

COVER-FRAME SNOWTH - MIDNIGHT BLUE (0667)

$44.99

$

Usually ships in 3-6 days

0

MTD 790-00316-0689

COVER-FRAME SNOWTH - POLO GREEN (0689)

$44.99

$

Usually ships in 3-6 days

0

MTD 790-00316-0709

COVER-FRAME SNOWTH - MASTERCRAFT GREEN (0709)

$47.99

$

Usually ships in 3-6 days

0

MTD 790-00316-0729

COVER-FRAME SNOWTH - STORM GRAY (0729)

$44.99

$

Usually ships in 3-6 days

0

MTD 790-00316-4041

CVR-SNWTH FRAME - PURE ORANGE (4041)

$44.99

$

Usually ships in 3-6 days

0

MTD 790-00316-4044

COVER-SNWTH FRAME - CRAFTSMAN RED (4044)

$47.99

$

Usually ships in 3-6 days

0

MTD 790-00316-4062

CVR-SNWTH FRAME - COOL GRAY (4062)

$44.99

$

Usually ships in 3-6 days

0

$38.99

$

Usually ships in 3-6 days

0

43

MTD 790-00527

Retainer-Strbl Drv Shf

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00527-0606

RETAINER-STRBL DRIVE SHAFT - MAJESTIC ORANGE (0606)

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00527-0637

RET-STRBL DRV SHF - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00527-0638

RETAINER-STRBL DRIVE SHAFT - MTD/TROY-BILT RED (0638)

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00527-0662

RETAINER-STRBL DRIVE SHAFT - OYSTER GRAY (0662)

$24.99

$

Usually ships in 3-6 days

0

MTD 790-00527-0691

RETAINER-STRBL DRIVE SHAFT - BLACK JACK (0691)

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00527-0709

RETAINER-STRBL DRIVE SHAFT - MASTERCRAFT GREEN (0709)

$24.99

$

Usually ships in 3-6 days

0

MTD 790-00527-4021

RETAINER-STRBL DRIVE SHAFT - CUB YELLOW 2 (4021)

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00527-4033

RETAINER-STRBL DRIVE SHAFT - FLINT MICA (4033)

$24.99

$

Usually ships in 3-6 days

0

MTD 790-00527-4044

RETAINER-STRBL DRIVE SHAFT - CRAFTSMAN RED (4044)

$28.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

44

MTD 790-00528

Retainer-Strbl Drv Shf

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00528-0606

RETAINER-STRBL DRIVE SHAFT - MAJESTIC ORANGE (0606)

$24.99

$

Usually ships in 3-6 days

0

MTD 790-00528-0637

RET-STRBL DRV SHF - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00528-0638

RETAINER-STRBL DRIVE SHAFT - MTD/TROY-BILT RED (0638)

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00528-0662

RETAINER-STRBL DRIVE SHAFT - OYSTER GRAY (0662)

$24.99

$

Usually ships in 3-6 days

0

MTD 790-00528-0691

RETAINER-STRBL DRIVE SHAFT - BLACK JACK (0691)

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00528-0709

RETAINER-STRBL DRIVE SHAFT - MASTERCRAFT GREEN (0709)

$24.99

$

Usually ships in 3-6 days

0

MTD 790-00528-4021

RETAINER-STRBL DRIVE SHAFT - CUB YELLOW 2 (4021)

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00528-4033

RETAINER-STRBL DRIVE SHAFT - FLINT MICA (4033)

$28.99

$

Usually ships in 3-6 days

0

MTD 790-00528-4044

RETAINER-STRBL DRIVE SHAFT - CRAFTSMAN RED (4044)

$28.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0
