CA 330 (31AH57K9897) - Columbia 30" Snow Thrower (2014) Chute Control Parts Diagram

30" Snow Thrower

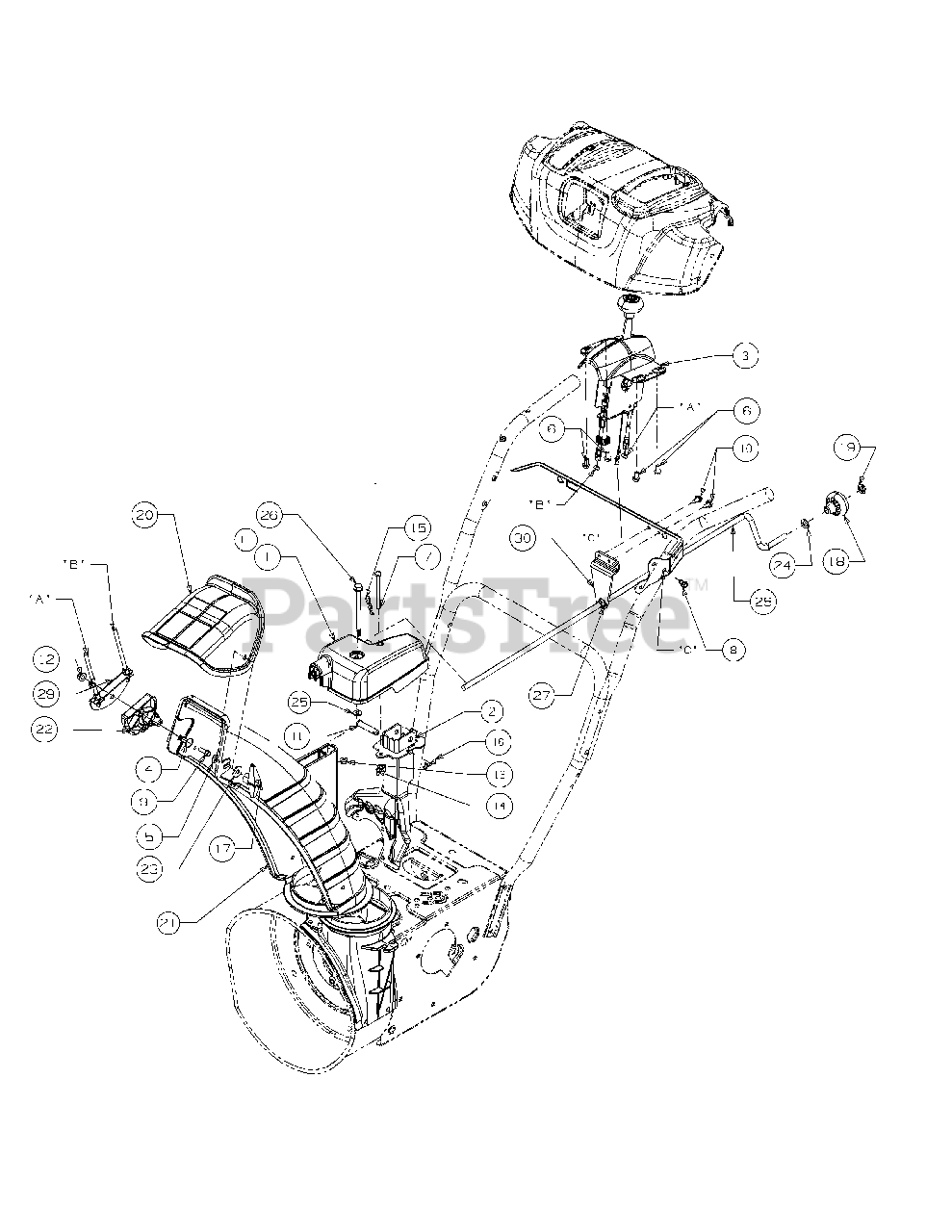

Chute Control Parts Diagram

  • Title
1

MTD 918-04933B

Gearbox Asm-Wo

$93.99

$

In Stock, only 1 left!

0

2

MTD 684-04310A-0637

Bracket A
(Superseded to 684-04310B-0637)

$40.99

$

Usually ships in 3-6 days

0

3

MTD 984-04325A

Control Assy-C

$98.99

$

Usually ships in 3-6 days

0

4

MTD 710-0262

Bolt-Carriage 5/16

$3.99

$

In Stock, Qty 11

0

5

MTD 710-04071

Bolt-Carriage 5/

$4.49

$

In Stock, Qty 13

0

6

MTD 710-04187

Screw-Hex
(Superseded to 710-04187A)

$6.99

$

In Stock, Qty 20+

0

7

MTD 710-04370

Screw-Hex Cap 1/4

$4.49

$

In Stock, Qty 11

0

8

MTD 710-0599

Screw-Hex Wash Sf

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0895

Screw-Hex Tap 1/4

$6.49

$

In Stock, only 4 left!

0

10

MTD 710-1652

Screw Hex.Wash.Hd

$4.49

$

In Stock, Qty 20+

0

11

MTD 711-04469A

Pin:Clevis

$5.99

$

In Stock, only 3 left!

0

12

MTD 712-04063

Nut-Flglk 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04064

Nut-Flglk

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-3087

WING NUT 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

MTD 914-0101

Pin-Intern Cot-1
(Superseded to 714-0101)

$

$

Not available

16

MTD 714-04040

Pin-Cotter

$1.49

$

In Stock, Qty 20+

0

17

MTD 920-0284

Knob-Wing Nut
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

18

MTD 720-04102

Knob-Shift Snow

$6.99

$

In Stock, Qty 20+

0

19

MTD 926-0100

Nut-Push
(Superseded to 726-0100)

$

$

Not available

20

MTD 931-04425B

Chute-Upper:W/

$22.99

$

Usually ships in 3-6 days

0

21

MTD 731-06440A

Chute-Lower 5" Dia

$51.99

$

In Stock, Qty 16

0

22

MTD 731-06451

Guide-Cable Chute

$4.99

$

In Stock, Qty 16

0

23

MTD 936-0159

Washer-Fl
(Superseded to 736-0159)

$

$

Not available

24

MTD 936-0185

Washer-Fl
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 20+

0

25

MTD 736-04446

Washer-Flat Hrdn

$4.49

$

In Stock, Qty 20+

0

26

MTD 738-04367

Screw-Shoulder Flg

$4.99

$

In Stock, Qty 11

0

27

MTD 941-0475

Bushing .380 Id

$4.49

$

In Stock, Qty 20+

0

28

MTD 747-05386-0637

Crank-Chut
(Superseded to 747-05386A-0637)

$31.99

$

In Stock, only 1 left!

0

29

MTD 784-5594

Bracket-Cable

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5594-0498

Cable Bracket - OLD CUB YELLOW (0498)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0637

Cable Bracket - POWDER BLACK (0637)

$11.99

$

In Stock, only 3 left!

0

MTD 784-5594-0716

Cable Bracket - CUB YELLOW-99 (0716)

$11.99

$

In Stock, only 3 left!

0

$10.99

$

Usually ships in 3-6 days

0

30

MTD 790-00341-0637

Bracket-Rod Suppor

$16.99

$

In Stock, only 1 left!

0
