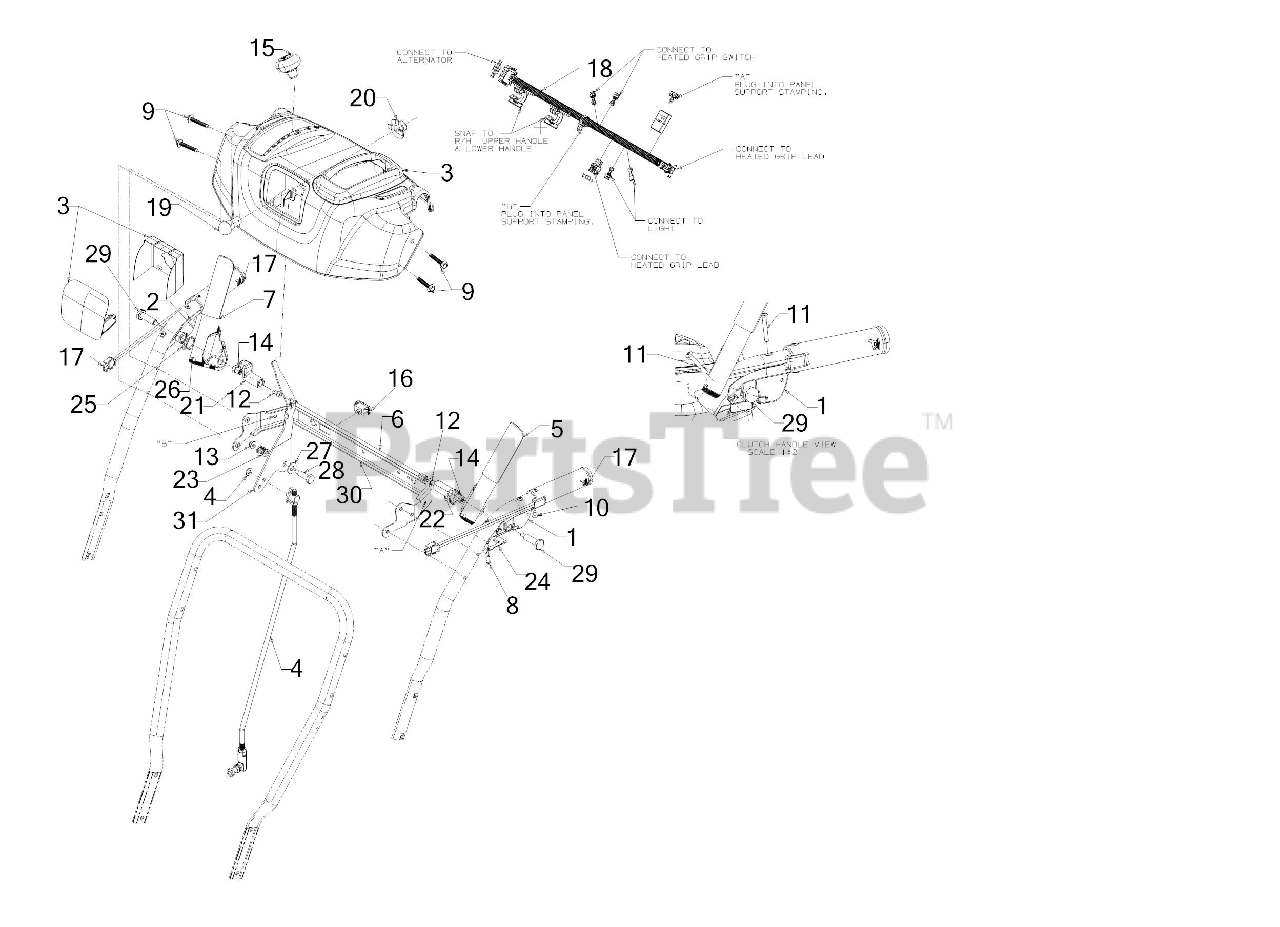

CA 328 HDT (31AH7EKY897) - Columbia 28" Snow Thrower (2017) Panel Parts Diagram

28" Snow Thrower

Panel Parts Diagram

  • Title

1

MTD 631-04133A

CLUTCH LOCK HANDLE ASSEMBLY (LH)

$15.99

$

In Stock, Qty 8

0

1

MTD 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

2

MTD 631-04134B

CLUTCH LOCK HANDLE ASSEMBLY (RH)

$15.99

$

In Stock, only 1 left!

0

2

MTD 712-0161

HEX NUT

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

3

MTD 931-04183

HANDLE PANEL ASSEMBLY (BLACK)

$108.99

$

Usually ships in 3-6 days

0

3

MTD 731-05320

HANDLE PANEL LENS

Note: (Not Shown)

$12.99

$

Usually ships in 3-6 days

0

3

MTD 777X41803

LABEL-LENS

Note: (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

4

MTD 947-05032

SHIFT ROD ASSEMBLY

Note: (See Separate Breakdown)

$39.99

$

Usually ships in 3-6 days

0

5

MTD 684-04105C

HANDLE ASSEMBLY (LH)
(Superseded to 684-04105D)

$22.99

$

In Stock, only 4 left!

0

6

MTD 684-04250

PIVOT ROD

$12.99

$

In Stock, only 4 left!

0

7

MTD 684-05226

HANDLE ASSEMBLY (RH)
(Superseded to 684-05226A)

$29.99

$

Usually ships in 3-6 days

0

8

MTD 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, only 2 left!

0

9

MTD 710-04586

SCREW 1/4-20 x 1.625

$6.99

$

In Stock, only 2 left!

0

10

MTD 710-0837

SCREW #10-16 x .625

$4.49

$

In Stock, Qty 5

0

11

MTD 710-1233

SCREW #10-24 x 1.375

$4.99

$

In Stock, Qty 11

0

12

MTD 710-3069

SCREW 1/4-20 x .50

$4.99

$

In Stock, Qty 11

0

13

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04081A

HEX NUT W/PATCH

$7.49

$

In Stock, Qty 20+

0

15

MTD 720-04039

SHIFT KNOB

$10.99

$

In Stock, only 1 left!

0

16

MTD 725-04393

HEATED GRIP SWITCH

$16.99

$

Usually ships in 3-6 days

0

17

MTD 925-06107

HARNESS

$78.99

$

Usually ships in 3-6 days

0

18

MTD 925-06839

HEATED GRIPS HARNESS

$70.99

$

Usually ships in 3-6 days

0

19

MTD 925-1629

LAMP-12V

$11.99

$

In Stock, Qty 13

0

20

MTD 925-1649

HEADLIGHT SOCKET
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

21

MTD 731-04894D

LOCK PLATE

$5.49

$

In Stock, Qty 11

0

22

MTD 731-04896B

CLUTCH LOCK CAM
(Superseded to 731-04896C)

$4.49

$

In Stock, Qty 20+

0

23

MTD 732-0193

COMPRESSION SPRING

$4.99

$

In Stock, Qty 6

0

24

MTD 732-04219C

CLUTCH SPRING

$4.49

$

In Stock, Qty 20+

0

25

MTD 732-04238B

TORSION SPRING

$5.49

$

In Stock, Qty 11

0

26

MTD 935-0199A

RUBBER BUMPER
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

27

MTD 936-0267

FLAT WASHER
(Superseded to 736-0267)

$4.49

$

In Stock, Qty 20+

0

28

MTD 738-04125

SHOULDER SCREW

$4.99

$

In Stock, only 3 left!

0

29

MTD 738-04348

SHOULDER SCREW .437 x 1.345 1/4-20

$3.99

$

In Stock, Qty 20+

0

30

MTD 790-00248D

HANDLE SUPPORT BRACKET
(Superseded to 790-00248E-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 790-00248D-0637

Handle Support Bracket - POWDER BLACK (0637)

$24.99

$

In Stock, Qty 5

0

$24.99

$

In Stock, Qty 5

0

31

MTD 790-00311C-0637

SHIFT LEVER

$27.99

$
