CA 328 (31AH55K8897) - Columbia 28" Snow Thrower (2015) Extended Chute 2-Way Parts Diagram

28" Snow Thrower

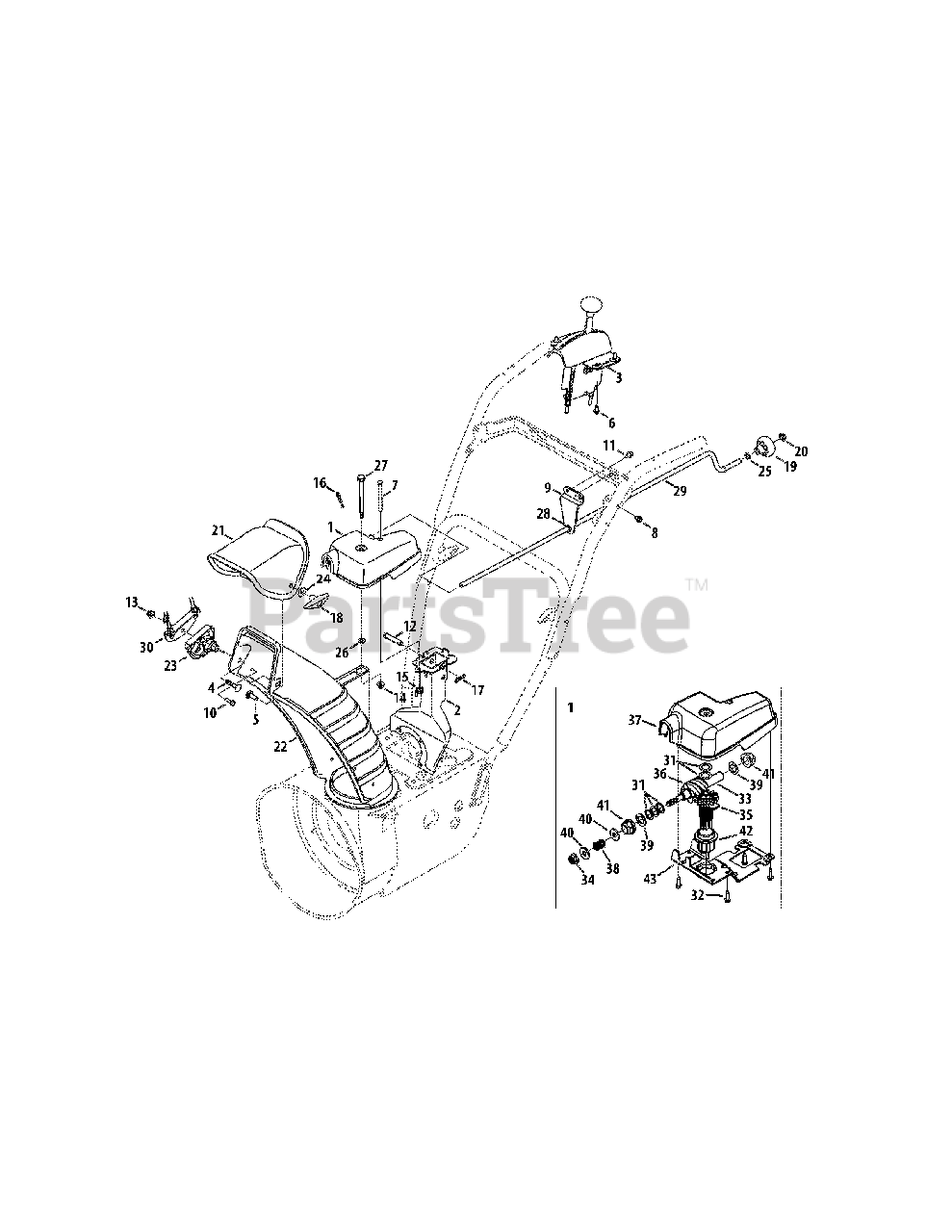

Extended Chute 2-Way Parts Diagram

  • Title

1

MTD 918-04933B

Chute Rotation Gearbox

$93.99

$

In Stock, only 1 left!

0

2

MTD 684-04310A-0637

Chute Support Bracket
(Superseded to 684-04310B-0637)

$40.99

$

Usually ships in 3-6 days

0

3

MTD 984-04325A

Chute Control, 2-Way

$98.99

$

Usually ships in 3-6 days

0

4

MTD 710-0262

Bolt, Carriage, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

5

MTD 710-04071

Bolt, Carrier, 5/16-18 x 1.00

$4.49

$

In Stock, Qty 15

0

6

MTD 710-04187A

Screw, Hi-Lo, 1/4-15 x 0.50

$6.99

$

In Stock, Qty 7

0

7

MTD 710-04370

Hex Head Screw, 1/4-20 x 3.00

$4.49

$

In Stock, only 1 left!

0

8

MTD 710-0599

Screw, TT, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

9

MTD 790-00341-0637

Support Rod Bracket

$16.99

$

In Stock, only 1 left!

0

10

MTD 710-0895

Screw, Hi-Lo, 1/4-15 x 0.750

$6.49

$

In Stock, Qty 5

0

11

MTD 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

12

MTD 711-04469A

Clevis Pin, 3/8 x 1.87

$5.99

$

In Stock, only 4 left!

0

13

MTD 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-3087

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

16

MTD 914-0101

Internal Cotter Pin
(Superseded to 714-0101)

$

$

Not available

17

MTD 714-04040

Bow-Tie Cotter Pin

$1.49

$

In Stock, Qty 20+

0

18

MTD 920-0284

Wing Knob, 5/16-18
(Superseded to 720-0284)

$6.99

$

In Stock, Qty 20+

0

19

MTD 720-04102

Shift Knob, .390

$6.99

$

In Stock, only 2 left!

0

20

MTD 926-0100

Push Cap, 3/8
(Superseded to 726-0100)

$

$

Not available

21

MTD 931-04425B

Upper Chute

$22.99

$

Usually ships in 3-6 days

0

22

MTD 731-06440A

Lower Chute, 5.0

$51.99

$

In Stock, Qty 19

0

23

MTD 731-06451

Cable Guide, Chute Tilt

$4.99

$

Usually ships in 3-6 days

0

24

MTD 936-0159

Washer, Flat, .349 x .879
(Superseded to 736-0159)

$

$

Not available

25

MTD 936-0185

Flat Washer, .375 x .738 x .063
(Superseded to 736-0185)

$3.99

$

In Stock, only 2 left!

0

26

MTD 736-04446

Washer, Flat, .25 x .630

$4.49

$

In Stock, only 2 left!

0

27

MTD 738-04367

Shoulder Screw, .312 x 3.5 x 1/4-20

$4.99

$

In Stock, only 1 left!

0

28

MTD 941-0475

Plastic Bushing, .380 ID

$4.49

$

In Stock, Qty 20+

0

29

MTD 747-05386-0637

Chute Crank
(Superseded to 747-05386A-0637)

$31.99

$

In Stock, only 1 left!

0

30

MTD 784-5594-0637

Cable Bracket

$11.99

$

In Stock, only 1 left!

0

31

MTD 736-04337

Shim Washer, .632 x 1.00 x .010

$3.99

$

In Stock, Qty 11

0

32

MTD 710-04373A

Screw, 12-16 x .75

$4.49

$

In Stock, Qty 15

0

33

MTD 711-05329A

Worm Shaft

$22.99

$

Usually ships in 3-6 days

0

34

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

35

MTD 717-04667B

Gear Assembly

$10.99

$

In Stock, only 4 left!

0

36

MTD 717-04672

Worm
(Superseded to 717-04672A)

$9.49

$

In Stock, only 3 left!

0

37

MTD 731-07529A

Gear Cover

$18.99

$

Usually ships in 3-6 days

0

38

MTD 732-04756

Compression Spring, .39 x .60 x .88

$3.49

$

Usually ships in 3-6 days

0

39

MTD 736-0290

Flat Washer, .625 x 1.0 x .067

$6.99

$

In Stock, only 2 left!

0

40

MTD 736-3072

Flat Washer, .380 x .93 x .110

$4.49

$

In Stock, Qty 20+

0

41

MTD 941-0225

Hex Bearing

$7.49

$

In Stock, Qty 20+

0

42

MTD 741-04388A

Flange Bearing

$7.49

$

In Stock, only 1 left!

0

43

MTD 790-00342C-0637

Gear Bracket

$28.99

$

Usually ships in 3-6 days

0
