C950-62909-3 - Craftsman Cultivator, Canada (2005) Shield & Tine Assembly Parts Diagram

Cultivator, Canada

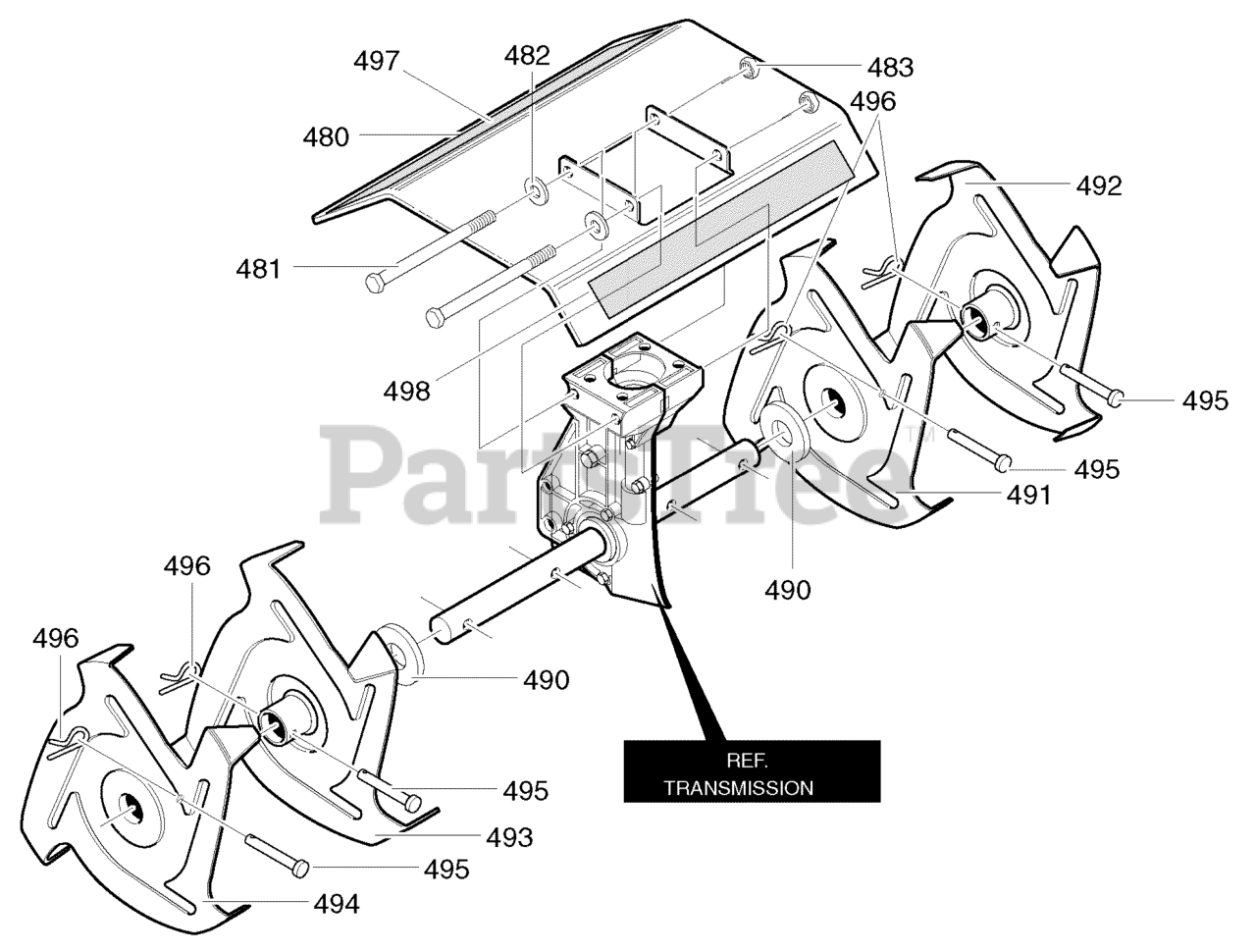

Shield & Tine Assembly Parts Diagram

  • Title

480

Murray 1901013E549

Shield, Tine

Note: (Includes Ref. No's. 497 & 498)

$

$

Currently unavailable

481

Murray 273869

Screw, 1/4-20x5.50

$3.99

$

Usually ships in 2-12 days

0

482

Murray 120392

Washer

$

$

Not available

483

Murray 46931

Nut, 1/4-20

$4.49

$

Usually ships in 2-12 days

0

490

Murray 56158

Washer, Felt

$4.99

$

Usually ships in 2-12 days

0

491

Murray 56157E701

Tine Assy. Inner LH

$37.99

$

Usually ships in 2-12 days

0

492

Murray 56155E701

Tine Assy. Outer LH

$20.99

$

Usually ships in 2-12 days

0

493

Murray 56156E701

Tine Assy. Inner RH

$35.99

$

Usually ships in 2-12 days

0

494

Murray 56154E701

Tine Assy. Outer RH

$

$

Not available

495

Murray 56123

Clevis Pin

$4.49

$

Usually ships in 2-12 days

0

496

Murray 0031X4

Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

497

Murray 48X4017

Decal, Caution

$27.99

$

Usually ships in 2-12 days

0

498

Murray 713032

Decal, Tine Shield

$10.99

$

Usually ships in 2-12 days

0
