C950-62909-3 - Craftsman Cultivator, Canada (2005) Handle Parts Diagram

Cultivator, Canada

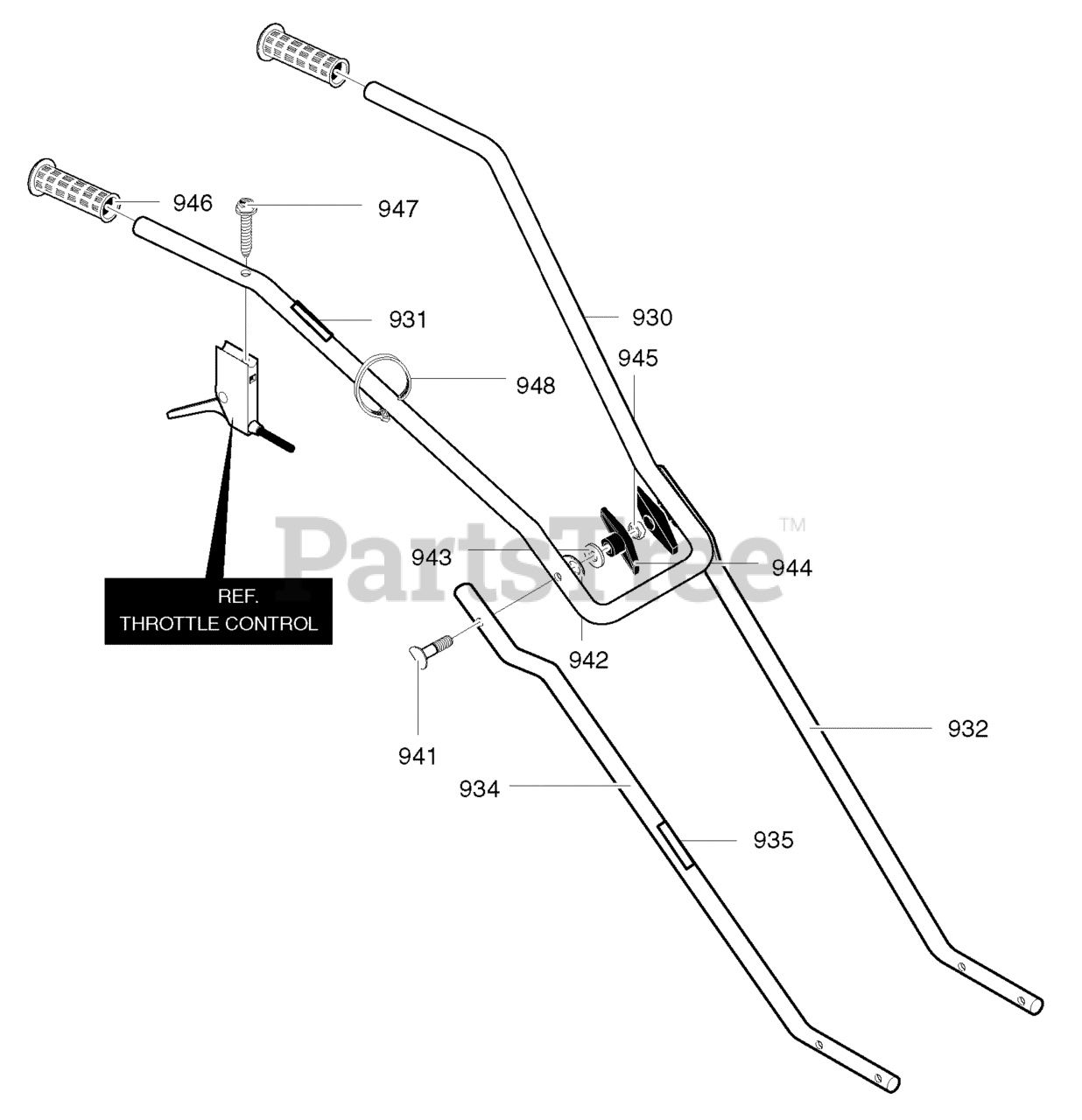

Handle Parts Diagram

  • Title

930

Murray 56237E701

Upper Handle

Note: (Includes Ref. No. 931)

$

$

Not available

931

Murray 48X4018

Decal, Throttle Control

$

$

Not available

932

Murray 339398E701

Lower Handle LH

$59.99

$

Usually ships in 2-12 days

0

934

Murray 339399E701

Lower Handle RH

Note: (Includes Ref. No. 935.)

$59.99

$

Usually ships in 2-12 days

0

935

Murray 577434

Decal, Starting

$9.99

$

Usually ships in 2-12 days

0

941

Murray 1901029

Bolt 5/16-18x1.63

$3.99

$

Usually ships in 2-12 days

0

942

Murray 783000

Formed Washer

$5.49

$

Usually ships in 2-12 days

0

943

Murray 120393

Flat Washer

$

$

Not available

944

Murray 1901018

T Knob

$

$

Not available

945

Murray 120376

Nut, 5/16-18

$

$

Not available

946

Murray 56778

Hand Grip

$9.99

$

Usually ships in 2-12 days

0

947

Murray 426635

Screw

$3.49

$

Usually ships in 2-12 days

0

948

Murray 712267

Cable Tie

$3.99

$

Usually ships in 2-12 days

0
