C950-60928-0 (7800538) - Craftsman ZTS6000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton, Canada (2009) 52" Mower Deck - Clutch & Support Group (7501432) Parts Diagram

ZTS6000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton, Canada

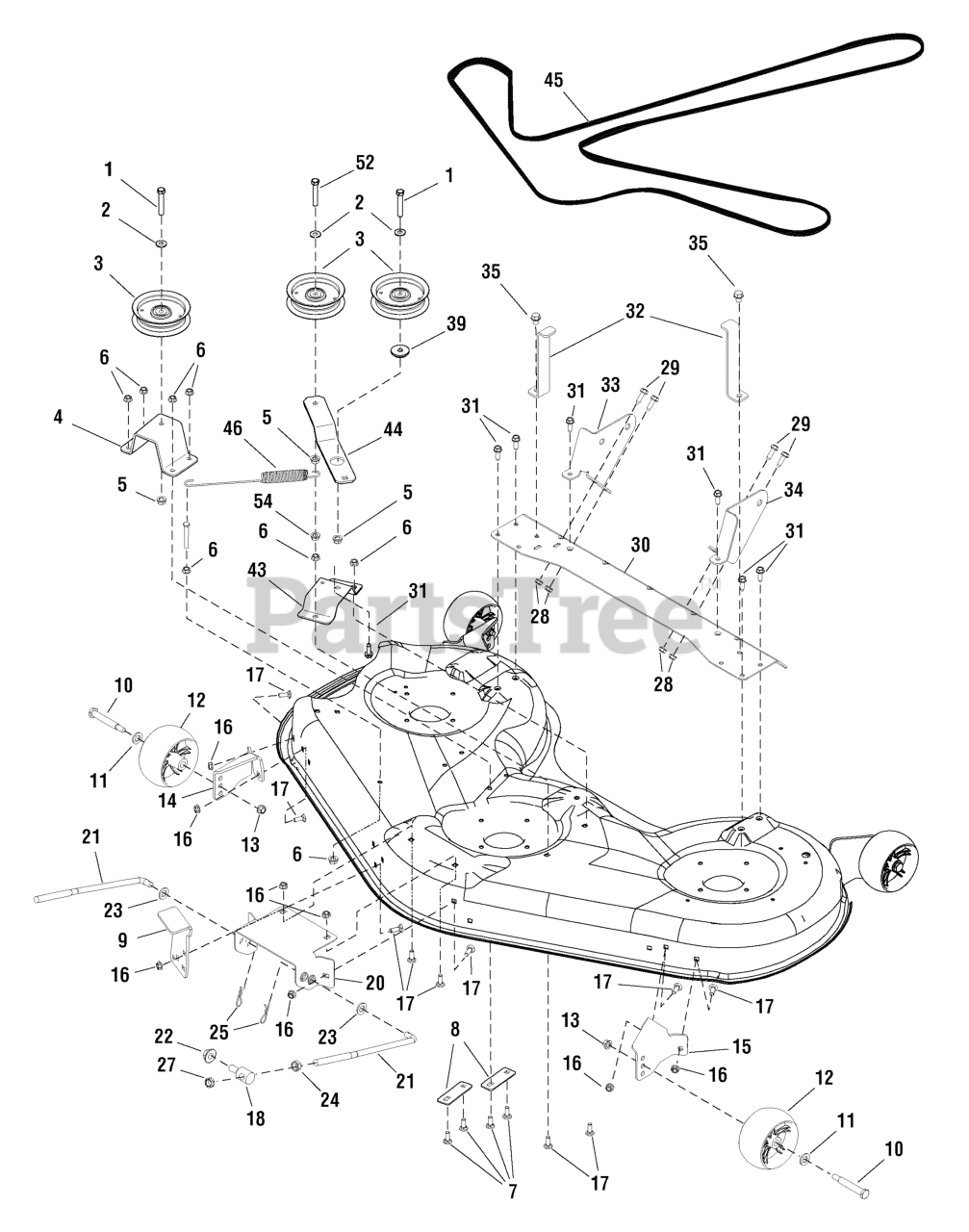

52" Mower Deck - Clutch & Support Group (7501432) Parts Diagram

  • Title

1

Murray 1922130SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/4
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

2

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

3

Murray 1736540YP

PULLEY, Idler

$35.99

$

In Stock, only 2 left!

0

4

Murray 1736438BMYP

BRACKET, Fixed Idler, Rear

$69.99

$

Usually ships in 2-12 days

0

5

Murray 1931211SM

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

6

Murray 1927557SM

NUT, Hex Flange, 5/16-18

$4.99

$

Usually ships in 2-12 days

0

7

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

8

Murray 1737229BMYP

PLATE, Backing

$8.49

$

Usually ships in 2-12 days

0

9

Murray 1737439BMYP

UPSTOP, Front, 52" Mower

$20.99

$

Usually ships in 2-12 days

0

10

Murray 1736539YP

BOLT, Shoulder, 3/8-16 x 3-7/8

$8.99

$

Usually ships in 2-12 days

0

11

Murray 1960170SM

WASHER 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

12

Murray 1736896YP

WHEEL, Gauge, 5"

$16.99

$

In Stock, only 4 left!

0

13

Murray 1960687SM

NUT, Hex Flange, 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

14

Murray 1736075BMYP

BRACKET, Gauge Wheel, Left

$14.99

$

In Stock, Qty 14

0

15

Murray 1736074BMYP

BRACKET, Gauge Wheel, Right

$15.99

$

In Stock, only 1 left!

0

16

Murray 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

17

Murray 1931334SM

BOLT, Carriage, 5/16-18 x 7/8
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

18

Murray 1737417YP

TRUNNION, Unthreaded

$21.99

$

In Stock, only 2 left!

0

20

Murray 1736071BMYP

HITCH, Front

$29.99

$

Usually ships in 2-12 days

0

21

Murray 1736081YP

ROD, Front Rail

$12.99

$

Usually ships in 2-12 days

0

22

Murray 1930644SM

NUT, Hex Flange, Two-Way Lock, 1/2-13

$3.49

$

In Stock, Qty 6

0

23

Murray 1960170SM

WASHER 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

24

Murray 1913744SM

NUT, Hex Jam, 1/2-13

$4.99

$

In Stock, Qty 19

0

25

Murray 1960074SM

CLIP, Hairpin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

28

Murray 1960686SM

NUT, Hex Flange 5/16-18 ESNA
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

29

Murray 1930591SM

CAPSCREW, Whizlock 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

30

Murray 1736070BMYP

SUPPORT, Rear Cross

$82.99

$

Usually ships in 2-12 days

0

31

Murray 1960373SM

SCREW, Hex Washer Head, Taptit, 5/16-18 x 1
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

32

Murray 1737219BMYP

UPSTOP, Rear, 46" + 52" MOWERS

$31.99

$

In Stock, only 3 left!

0

33

Murray 1736398BMYP

BRACKET, Rear mower Pickup, Right

$19.99

$

Usually ships in 2-12 days

0

34

Murray 1736397BMYP

BRACKET, Rear mower Pickup, Left

$19.99

$

Usually ships in 2-12 days

0

35

Murray 9344MA

SCREW, 3/8-16 x 1/2
(Superseded to 704213)

$5.49

$

In Stock, only 1 left!

0

39

Murray 1714255SM

SPACER, 3/8

$6.49

$

In Stock, Qty 17

0

43

Murray 1736437BMYP

BRACKET, Idler Mount, Front

$21.99

$

Usually ships in 2-12 days

0

44

Murray 1736439BMYP

ARM, Idler

$80.99

$

In Stock, only 1 left!

0

45

Murray 1736516YP

V-BELT, HA 132"

$77.99

$

In Stock, Qty 20+

0

46

Murray 1737415YP

SPRING, Extension, PTO

$12.99

$

In Stock, only 1 left!

0

52

Murray 1933685SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/2

$5.49

$

In Stock, only 1 left!

0

54

Murray 1960339SM

NUT, Hex Flange, 3/8-16

$

$

Not available
