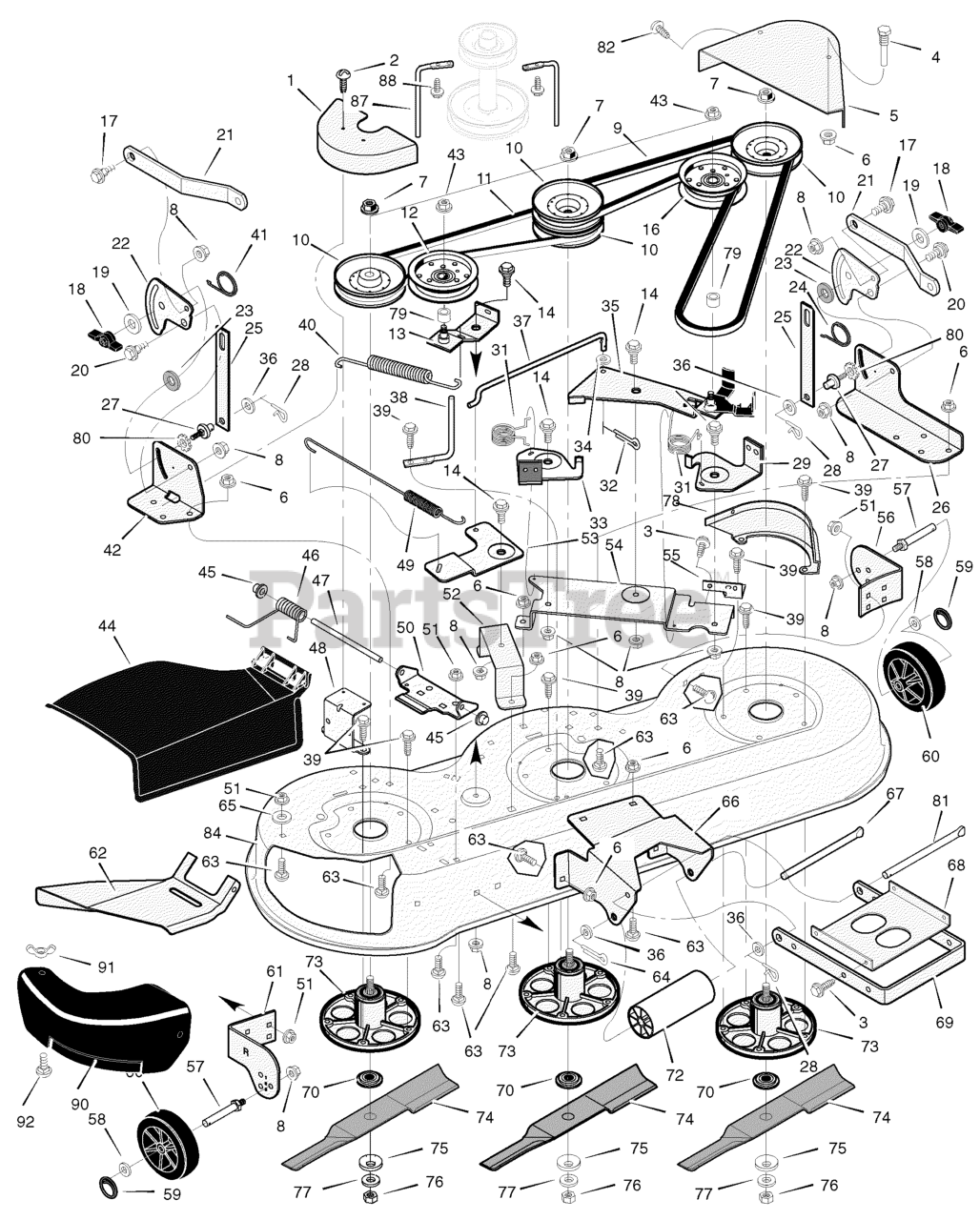

C950-60473-0 - Craftsman 46" Lawn Tractor, Canada (2004) (Sears) Mower Housing Parts Diagram

46" Lawn Tractor, Canada

Mower Housing Parts Diagram

  • Title

1

Murray 094607E701

Cover, Right Pulley
(Superseded to 7300857BMYP)

$82.99

$

Usually ships in 2-12 days

0

2

Murray 26X250

Screw

$

$

Not available

3

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

4

Murray 91754

Guide, Belt

$16.99

$

Usually ships in 2-12 days

0

5

Murray 094645E701

Cover, Left Pulley

$75.99

$

Usually ships in 2-12 days

0

6

Murray 015X79

Nut, Hex

$5.49

$

In Stock, Qty 20+

0

7

Murray 15X140

Nut, Flange

$9.99

$

In Stock, Qty 7

0

8

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

9

Murray 037X89

Belt, Primary

$49.99

$

Usually ships in 2-12 days

0

10

Murray 94592

Pulley
(Superseded to 690346)

$7.49

$

Usually ships in 2-12 days

0

11

Murray 037X66

Belt, Secondary

$24.99

$

In Stock, only 1 left!

0

12

Murray 690549

Pulley, Idler

$9.99

$

Usually ships in 2-12 days

0

13

Murray 094639E701

Arm, Idler

$108.99

$

In Stock, only 1 left!

0

14

Murray 009X39

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

16

Murray 690387

Pulley, Idler

$

$

Not available

17

Murray 009X52

Bolt, Shoulder
(Superseded to 009X52MA)

$6.49

$

In Stock, only 2 left!

0

18

Murray 94068

Knob

$6.99

$

In Stock, Qty 20+

0

19

Murray 017X45

Washer
(Superseded to 017X45MA)

$

$

Not available

20

Murray 009X51

Bolt, Shoulder
(Superseded to 009X51MA)

$4.99

$

In Stock, only 2 left!

0

21

Murray 094055E701

Bracket, Rear Suspension

$13.99

$

Usually ships in 2-12 days

0

22

Murray 094128E700

Plate, Suspension

$8.99

$

Usually ships in 2-12 days

0

23

Murray 94137

Pad, Friction
(Superseded to 690326)

$6.49

$

Usually ships in 2-12 days

0

24

Murray 166X43

Spring
(Superseded to 166X43MA)

$4.99

$

In Stock, only 2 left!

0

25

Murray 690212E701

Link, Lift

$37.99

$

Usually ships in 2-12 days

0

26

Murray 094600E700

Bracket, Left Lift

$25.99

$

Usually ships in 2-12 days

0

27

Murray 95194

Pin, Hanger

$

$

Not available

28

Murray 0031X4

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

29

Murray 094640E701

Brake Assembly, Left

$

$

Not available

31

Murray 166X41

Spring

$4.99

$

In Stock, only 2 left!

0

32

Murray 030X20

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

33

Murray 094641E701

Brake Assembly, Right

$39.99

$

Usually ships in 2-12 days

0

34

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

35

Murray 690579E701

Idler, Arm

$

$

Not available

36

Murray 17X103

Washer
(Superseded to 17X103MA)

$4.99

$

In Stock, only 2 left!

0

38

Murray 092116 Z

Guide, Belt

$

$

Currently unavailable

39

Murray 0025X7

Screw
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

40

Murray 165X79

Spring, Extension
(Superseded to 165X79MA)

$6.49

$

In Stock, Qty 5

0

41

Murray 166X42

Spring, Torsion
(Superseded to 166X42MA)

$4.99

$

In Stock, Qty 8

0

42

Murray 094598E701

Bracket, Suspension

$15.99

$

Usually ships in 2-12 days

0

43

Murray 015X98

Nut
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

44

Murray 92100

Deflector, Chute

$93.99

$

Usually ships in 2-12 days

0

45

Murray 028X23

Push On Cap
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

46

Murray 166X34

Spring, Torsion
(Superseded to 166X34MA)

$9.49

$

Usually ships in 2-12 days

0

47

Murray 092159ZMA

Rod, Deflector

$

$

Not available

48

Murray 092140E701

Bracket, Cover

$33.99

$

Usually ships in 2-12 days

0

49

Murray 165X120

Spring, Extension
(Superseded to 165X120MA)

$11.99

$

In Stock, only 1 left!

0

50

Murray 092104E701

Bracket, Hinge

$9.99

$

Usually ships in 2-12 days

0

51

Murray 015X88

Nut, Flange
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

52

Murray 094601E701

Bracket, Bell Crank

$12.99

$

In Stock, only 1 left!

0

53

Murray 094603E701

Crank, Bell

$55.99

$

Usually ships in 2-12 days

0

54

Murray 094596E701

Plate, Brake Arm

$94.99

$

In Stock, only 1 left!

0

55

Murray 094602E701

Bracket, Brake Plate

$38.99

$

Usually ships in 2-12 days

0

56

Murray 094919E700

Bracket, Left Gauge Wheel

$

$

Currently unavailable

57

Murray 94025

Axle

$2.99

$

Usually ships in 2-12 days

0

58

Murray 017X91

Washer
(Superseded to 017X91MA)

$5.49

$

In Stock, Qty 11

0

59

Murray 031X11

Ring, Locking
(Superseded to 031X11MA)

$4.49

$

In Stock, only 2 left!

0

60

Murray 92683

Wheel, Gauge
(Superseded to 092683MA)

$15.99

$

In Stock, only 3 left!

0

61

Murray 094918E701

Bracket, Right Gauge Wheel
(Superseded to 094918E701MA)

$21.99

$

Usually ships in 2-12 days

0

62

Murray 092103E701

Deflector, Inside

$83.99

$

Usually ships in 2-12 days

0

63

Murray 002X53

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

64

Murray 030X49

Pin, Cotter
(Superseded to 030X49MA)

$4.49

$

In Stock, Qty 11

0

65

Murray 017X57

Washer

$4.49

$

Usually ships in 2-12 days

0

66

Murray 094997E701

Bracket, Front Deck

$49.99

$

Usually ships in 2-12 days

0

67

Murray 94996

Rod, Hanger

$

$

Not available

68

Murray 094604E701

Stiffener

$68.99

$

Usually ships in 2-12 days

0

69

Murray 690539E701

Bracket, Suspension

$54.99

$

Usually ships in 2-12 days

0

70

Murray 690411

Adapter, Blade

$

$

Not available

72

Murray 1001252

Roller
(Superseded to 1001252MA)

$20.99

$

Usually ships in 2-12 days

0

73

Murray 1001200

Housing, Jackshaft
(Superseded to 1001200MA)

$82.99

$

In Stock, only 3 left!

0

74

Murray 056631E701

Blade

$19.99

$

In Stock, only 3 left!

0

75

Murray 17X166

Washer, Belleville
(Superseded to 17X166MA)

$13.99

$

In Stock, Qty 18

0

76

Murray 15X100

Nut
(Superseded to 15X100MA)

$3.99

$

In Stock, Qty 10

0

77

Murray 17X165

Washer
(Superseded to 17X165MA)

$16.99

$

In Stock, only 4 left!

0

78

Murray 690221E701

Bracket, Pulley Cover

$

$

Not available

79

Murray 690369

Spacer

$5.99

$

Usually ships in 2-12 days

0

80

Murray 019X35

Washer
(Superseded to 019X35MA)

$4.99

$

In Stock, Qty 11

0

81

Murray 94996

Rod, Hanger

$

$

Not available

82

Murray 26X277

Screw
(Superseded to 26X277MA)

$4.99

$

Usually ships in 2-12 days

0

84

Murray 094936E701

Housing, Mower

$

$

Currently unavailable

87

Murray 091797 Z

Guide, Belt

$

$

Currently unavailable

88

Murray 025X15

Screw

$

$

Not available

90

Murray 95086

Cover, Mulch
(Superseded to 691143)

$3.49

$

Usually ships in 2-12 days

0

91

Murray 014X86

Wingnut
(Superseded to 703141)

$3.49

$

In Stock, only 3 left!

0

92

Murray 002X64

Bolt, Carriage

$4.49

$

In Stock, only 1 left!

0

37

Murray 094606 Z

Link, Bell Crank

$

$

Currently unavailable
