C950-60472-0 - Craftsman 46" Lawn Tractor, Canada (2004) (Sears) Rear Body Parts Diagram

46" Lawn Tractor, Canada

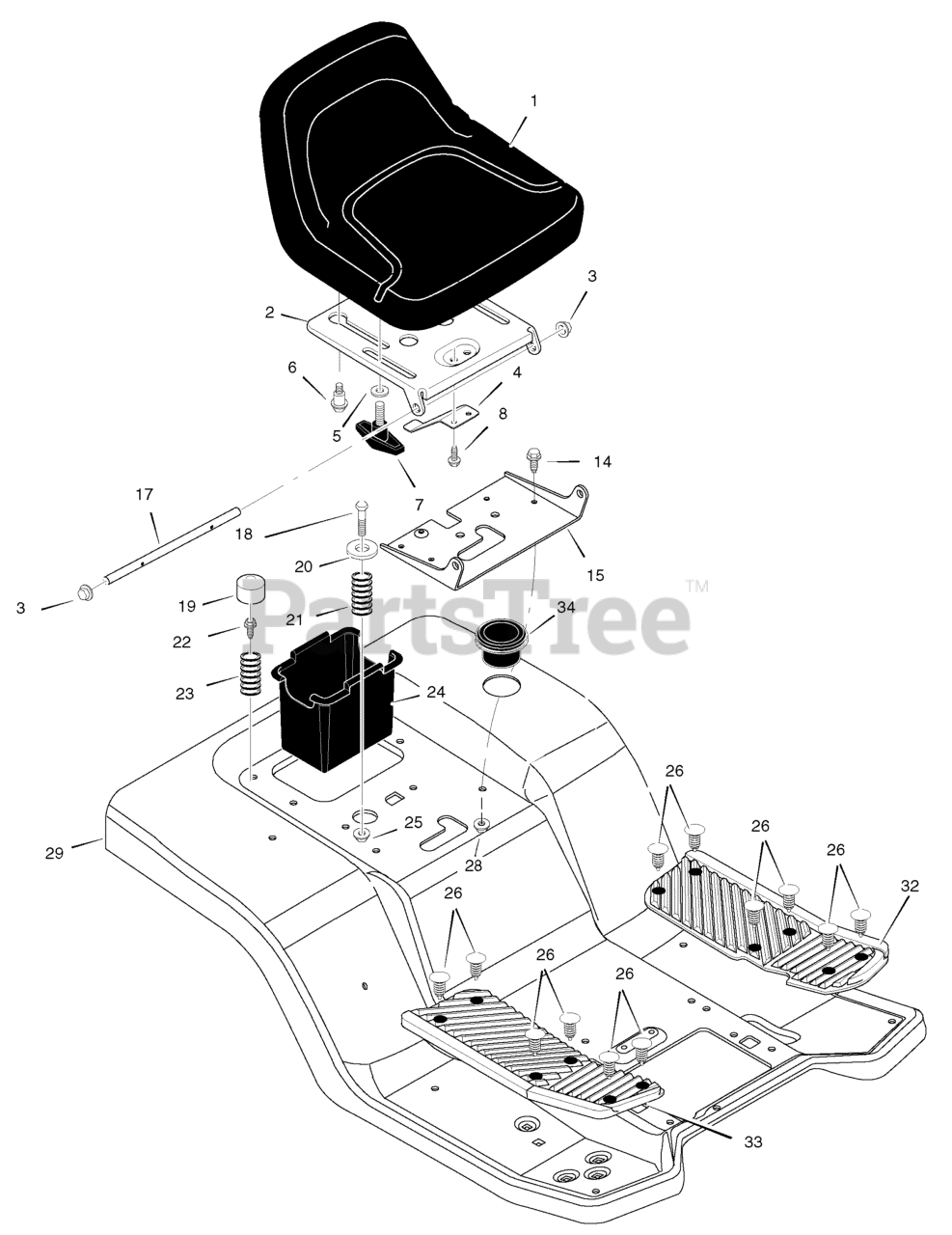

Rear Body Parts Diagram

  • Title

1

Murray 95415

Seat

$433.99

$

Usually ships in 2-12 days

0

2

Murray 094154E701

Support, Seat

$

$

Not available

3

Murray 028X23

Cap, Push
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

4

Murray 94057

Spring, Leaf
(Superseded to 94124)

$14.99

$

In Stock, only 1 left!

0

5

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

6

Murray 009X56

Bolt, Shoulder
(Superseded to 009X56MA)

$3.49

$

Usually ships in 2-12 days

0

7

Murray 1001054

Bolt, Wing
(Superseded to 1001054MA)

$6.99

$

Usually ships in 2-12 days

0

8

Murray 26X229

Screw
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

14

Murray 001X45

Bolt, Hex
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

15

Murray 1001648E701

Bracket, Pivot

$

$

Not available

17

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

18

Murray 009X55

Bolt, Shoulder
(Superseded to 009X55MA)

$3.49

$

Usually ships in 2-12 days

0

19

Murray 20107

Cap
(Superseded to 5020107)

$2.99

$

Usually ships in 2-12 days

0

20

Murray 094155 Z

Washer, Cup

$

$

Currently unavailable

21

Murray 164X31

Spring, Compression
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

22

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

23

Murray 164X30

Spring, Compression
(Superseded to 164X30MA)

$15.99

$

Usually ships in 2-12 days

0

24

Murray 690424

Container, Battery

$8.99

$

Usually ships in 2-12 days

0

25

Murray 015X89

Nut, Centerlock
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

26

Murray 0193X1

Fastener, Panel
(Superseded to 0193X1MA)

$3.99

$

In Stock, only 1 left!

0

28

Murray 15X123

Nut, Nylock
(Superseded to 15X123MA)

$3.99

$

Usually ships in 2-12 days

0

29

Murray 1001905E201

Deck, Seat

$

$

Currently unavailable

32

Murray 95408

Mat, Left

$

$

Not available

33

Murray 95409

Mat, Right

$

$

Not available

34

Murray 1001542

Holder, Cup

$11.99

$

Usually ships in 2-12 days

0
