C950-60472-0 - Craftsman 46" Lawn Tractor, Canada (2004) (Sears) Chassis & Hood Parts Diagram

46" Lawn Tractor, Canada

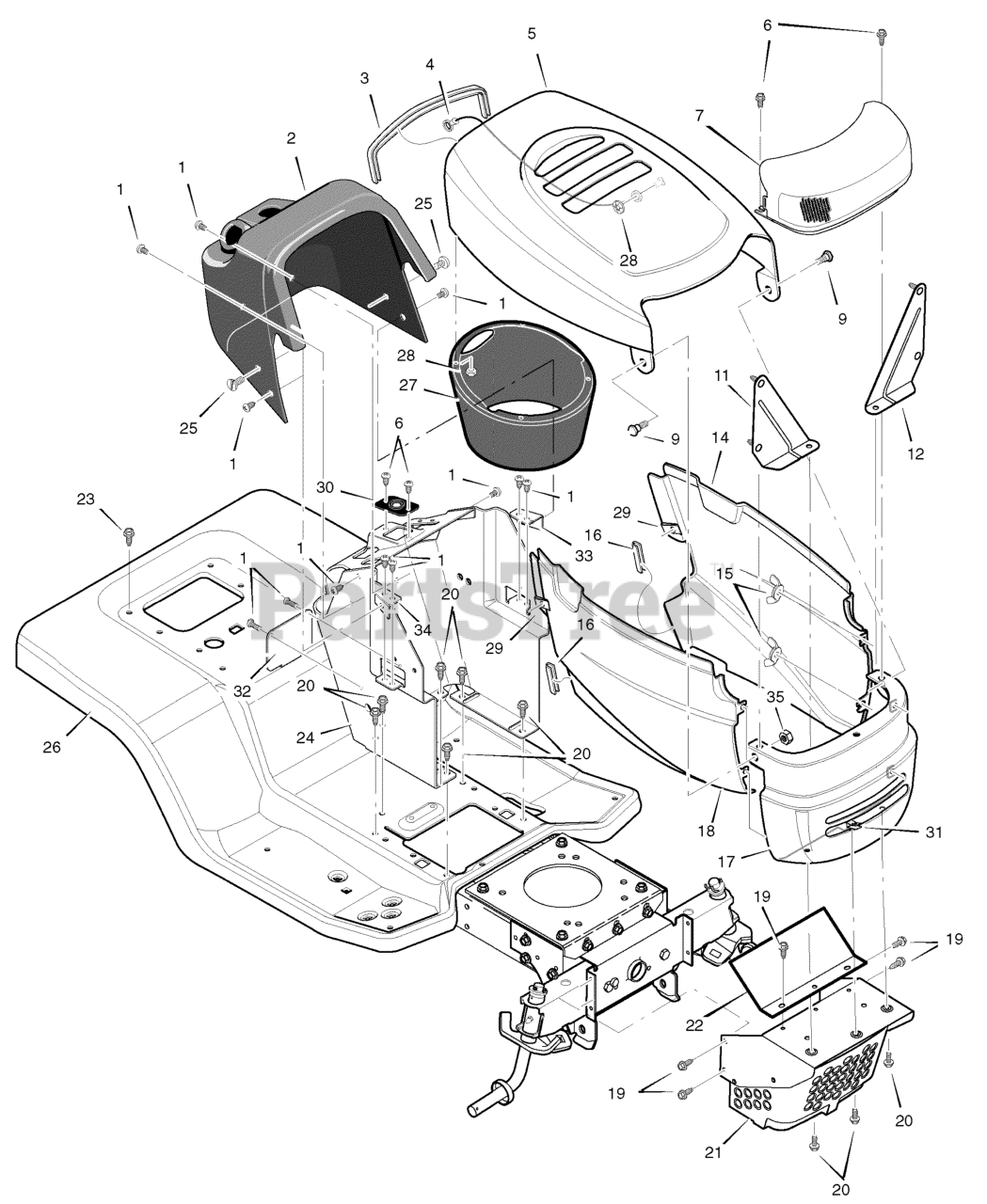

Chassis & Hood Parts Diagram

  • Title

1

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

2

Murray 1001868

Dash

$104.99

$

Usually ships in 2-12 days

0

3

Murray 7601029

Trim 2.23"

$5.99

$

Usually ships in 2-12 days

0

4

Murray 643129

Cable

$

$

Not available

5

Murray 1001186E201

Hood Assembly

$

$

Currently unavailable

6

Murray 26X238

Screw

$3.99

$

Usually ships in 2-12 days

0

7

Murray 95234

Lens & Reflector Assembly
(Superseded to 95234GS)

$45.99

$

In Stock, only 1 left!

0

9

Murray 009X77

Bolt, Shoulder

$3.99

$

Usually ships in 2-12 days

0

11

Murray 1001169E701

Brace, Right Grille Assembly

$

$

Currently unavailable

12

Murray 1001171E701

Brace, Left Grille Assembly

$23.99

$

Usually ships in 2-12 days

0

14

Murray 1001746E201

Panel, Left Side

$

$

Currently unavailable

15

Murray 014X79

Wingnut
(Superseded to 014X79MA)

$4.99

$

Usually ships in 2-12 days

0

16

Murray 7601029

Trim 0.39"

$5.99

$

Usually ships in 2-12 days

0

17

Murray 1001126E201

Grille

$

$

Currently unavailable

18

Murray 1001745E201

Panel, Right Side

$

$

Currently unavailable

19

Murray 26X277

Screw
(Superseded to 26X277MA)

$4.99

$

Usually ships in 2-12 days

0

20

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

21

Murray 1001191

Guard Assembly, Muffler

$

$

Not available

22

Murray 1001504E701

Shield, Upper Heat

$

$

Currently unavailable

23

Murray 26X263

Screw
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

24

Murray 095175E201

Console

$

$

Currently unavailable

25

Murray 26X239

Screw
(Superseded to 26X239MA)

$4.49

$

In Stock, only 2 left!

0

26

Murray 1001905E201

Deck Seat

$

$

Currently unavailable

27

Murray 1001158

Plenum

$79.99

$

Usually ships in 2-12 days

0

28

Murray 028X49

Retainer, Push

$3.99

$

In Stock, Qty 13

0

29

Murray 028X33

J-Nut

$4.49

$

Usually ships in 2-12 days

0

30

Murray 1001491

Bearing, Steering
(Superseded to 1001491MA)

$5.49

$

Usually ships in 2-12 days

0

31

Murray 028X57

U-Nut

$4.99

$

Usually ships in 2-12 days

0

32

Murray 1001860E201

Panel, Access

$

$

Currently unavailable

33

Murray 94464

Bracket, Right Console

$4.49

$

Usually ships in 2-12 days

0

34

Murray 94465

Bracket, Left Console

$4.49

$

Usually ships in 2-12 days

0

35

Murray 15X148

Nut

$

$

Not available

--

Murray 1001937

Bag, Assembly Parts

$18.99

$

Usually ships in 2-12 days

0

--

Murray F-040771L

Book, Instruction

$

$

Currently unavailable
