C950-60471-0 - Craftsman 42" Lawn Tractor, Canada (2004) (Sears) Mower Housing Suspension Parts Diagram

42" Lawn Tractor, Canada

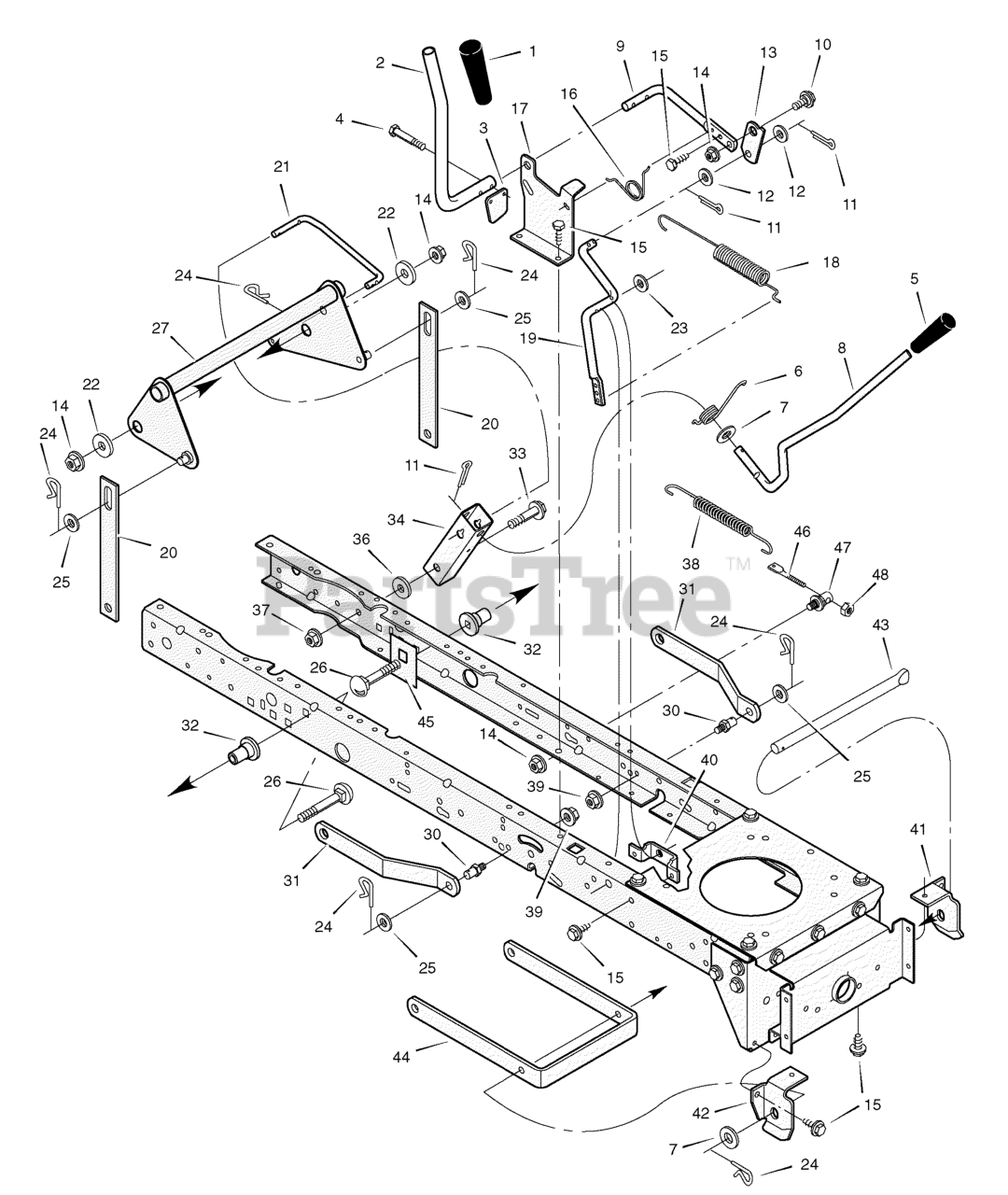

Mower Housing Suspension Parts Diagram

  • Title

1

Murray 94496

Grip, PTO

$6.99

$

In Stock, Qty 20+

0

2

Murray 094826 Z

Handle, PTO

$

$

Currently unavailable

3

Murray 094022 Z

Pad, Switch

$

$

Currently unavailable

4

Murray 0025X3

Screw, Hex
(Superseded to 0025X3MA)

$4.99

$

Usually ships in 2-12 days

0

5

Murray 94497

GRIP, Lift Lever
(Superseded to 690343)

$5.99

$

Usually ships in 2-12 days

0

6

Murray 166X40

Spring
(Superseded to 166X40MA)

$6.49

$

Usually ships in 2-12 days

0

7

Murray 17X103

Washer
(Superseded to 17X103MA)

$4.99

$

In Stock, only 2 left!

0

8

Murray 690533

Handle, Lift

$5.49

$

Usually ships in 2-12 days

0

9

Murray 094017 Z

Lever, PTO

$

$

Currently unavailable

10

Murray 009X39

Bolt, Shoulder

$6.49

$

In Stock, Qty 6

0

11

Murray 030X20

Pin, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

12

Murray 017X57

Washer

$4.49

$

Usually ships in 2-12 days

0

13

Murray 094004 Z

Link, PTO

$

$

Currently unavailable

14

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

15

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

16

Murray 166X39

Spring

$5.49

$

Usually ships in 2-12 days

0

17

Murray 094018E701

Bracket, PTO

$10.99

$

Usually ships in 2-12 days

0

18

Murray 165X120

Spring
(Superseded to 165X120MA)

$11.99

$

In Stock, only 1 left!

0

19

Murray 1001946E701

Crank, PTO

$91.99

$

Usually ships in 2-12 days

0

20

Murray 690212E701

Link, Lift

$37.99

$

Usually ships in 2-12 days

0

21

Murray 690122E701

Link, Lift Handle

$19.99

$

Usually ships in 2-12 days

0

22

Murray 17X168ZMA

Washer

$6.49

$

Usually ships in 2-12 days

0

23

Murray 017X57

Washer

$4.49

$

Usually ships in 2-12 days

0

24

Murray 0031X4

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

25

Murray 017X91 Z

Washer

$

$

Currently unavailable

26

Murray 002X85

Bolt, Carriage

$3.99

$

Usually ships in 2-12 days

0

27

Murray 1001111E701MA

Lever Assembly, Lift

$112.99

$

Usually ships in 2-12 days

0

30

Murray 94067

Pin

$5.99

$

Usually ships in 2-12 days

0

31

Murray 094055E701

Bracket, Rear Suspension

$13.99

$

Usually ships in 2-12 days

0

32

Murray 690151

Spacer, Lifter
(Superseded to 690151MA)

$6.99

$

Usually ships in 2-12 days

0

33

Murray 009X53

Bolt, Shoulder
(Superseded to 009X53MA)

$6.99

$

Usually ships in 2-12 days

0

34

Murray 094015E700

Bracket, Pivot

$

$

Currently unavailable

36

Murray 17X191

Washer
(Superseded to 17X191MA)

$3.99

$

Usually ships in 2-12 days

0

37

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

Murray 165X133

Spring

$20.99

$

Usually ships in 2-12 days

0

39

Murray 015X68

Nut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

40

Murray 094005E701

Bracket, PTO

$8.99

$

Usually ships in 2-12 days

0

41

Murray 094027E701

Hanger, Left Deck

$22.99

$

Usually ships in 2-12 days

0

42

Murray 094026E701

Hanger, Right Deck

$22.99

$

Usually ships in 2-12 days

0

43

Murray 094158ZMA

Rod, Hanger

$28.99

$

Usually ships in 2-12 days

0

44

Murray 690539E701

Bracket, Suspension

$54.99

$

Usually ships in 2-12 days

0

45

Murray 1001098E700

Plate, Stiffening

$

$

Currently unavailable

46

Murray 094042ZMA

Stud, Spring Mount

$4.49

$

Usually ships in 2-12 days

0

47

Murray 690182

Stud, Swivel

$11.99

$

Usually ships in 2-12 days

0

48

Murray 15X88

Nut

$3.99

$

In Stock, Qty 20+

0
