C950-60471-0 - Craftsman 42" Lawn Tractor, Canada (2004) (Sears) Electrical System Parts Diagram

42" Lawn Tractor, Canada

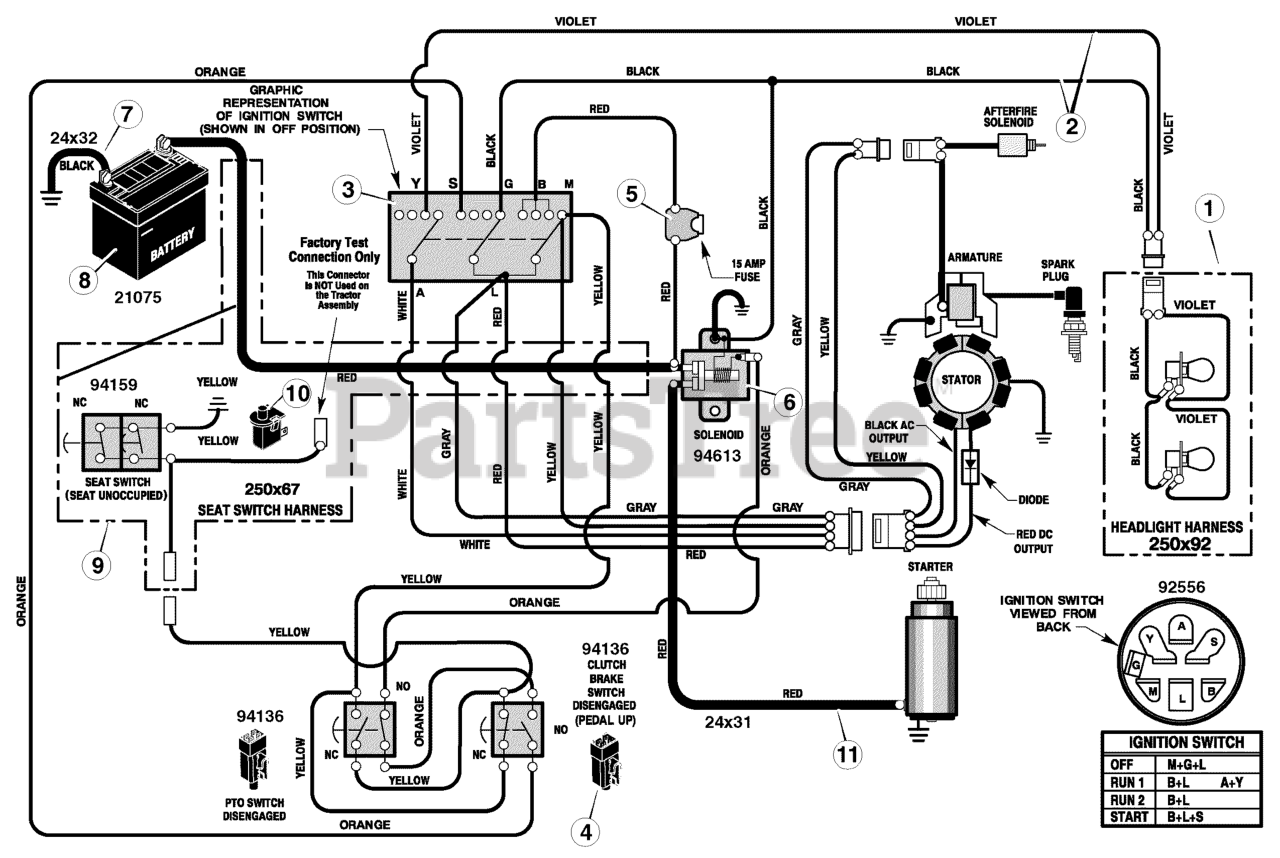

Electrical System Parts Diagram

  • Title
1

Murray 250X92

Harness, Light Wire

$16.99

$

Usually ships in 2-12 days

0

1

Murray 1001716

Socket, Light

$

$

Not available

1

Murray 90084

Bulb, Light
(Superseded to 7090639YP)

$3.49

$

In Stock, only 1 left!

0

2

Murray 250X117

Harness, Chassis Wire

$

$

Not available

3

Murray 92556

Switch, Ignition

$28.99

$

In Stock, only 1 left!

0

3

Murray 20729

Key, Ignition

$5.49

$

In Stock, Qty 11

0

3

Murray 91489

Nut, Hex
(Superseded to 91489GS)

$1.99

$

Usually ships in 2-12 days

0

3

Murray 91488

Cap, Ignition
(Superseded to 794903)

$5.49

$

Usually ships in 2-12 days

0

4

Murray 94136

Switch, Limit

$12.99

$

Usually ships in 2-12 days

0

5

Murray 302031

Fuse
(Superseded to 302031MA)

$6.49

$

Usually ships in 2-12 days

0

5

Murray 407078

Holder, Fuse

$20.99

$

Usually ships in 2-12 days

0

6

Murray 94613

Solenoid
(Superseded to 691680)

$5.99

$

In Stock, only 1 left!

0

6

Murray 26X229

Screw, Mounting
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

6

Murray 15X116

Locknut

$4.49

$

In Stock, Qty 20+

0

7

Murray 024X32

Cable, Battery Ground
(Superseded to 024X32MA)

$8.49

$

Usually ships in 2-12 days

0

7

Murray 26X229

Screw, Ground Cable
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

8

Murray 21075

Battery

$

$

Currently unavailable

8

Murray 002X82

Bolt, Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

8

Murray 014X79

Wingnut
(Superseded to 014X79MA)

$4.99

$

Usually ships in 2-12 days

0

9

Murray 250X67

Harness, Seat Switch Wire

$

$

Not available

10

Murray 94159

Switch, Seat Sensor

$12.99

$

In Stock, Qty 20+

0

11

Murray 024X31

Cable
(Superseded to 024X31MA)

$7.49

$

In Stock, only 1 left!

0
