C950-60471-0 - Craftsman 42" Lawn Tractor, Canada (2004) (Sears) Chassis & Hood Parts Diagram

42" Lawn Tractor, Canada

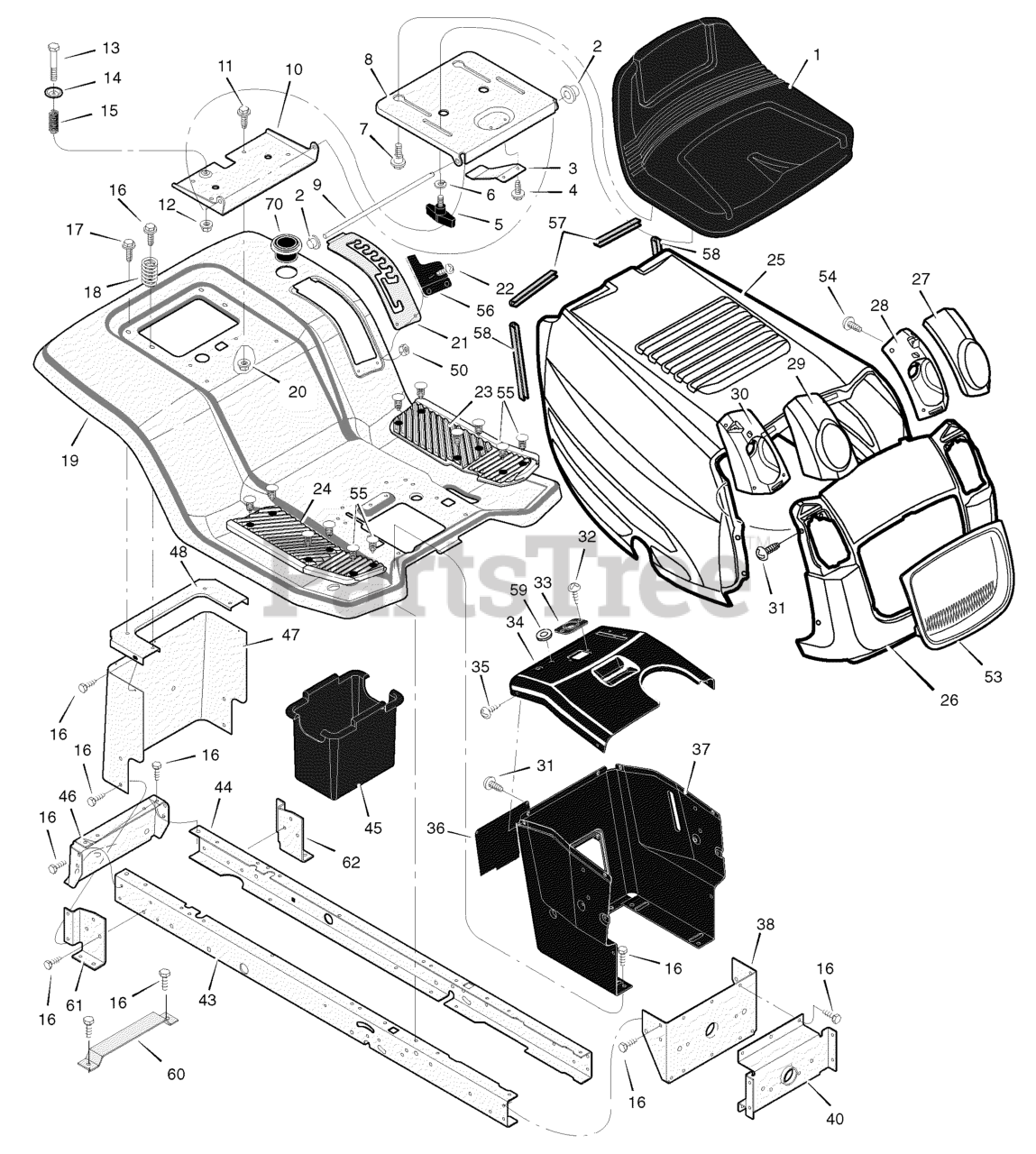

Chassis & Hood Parts Diagram

  • Title

1

Murray 95415

Seat

$433.99

$

Usually ships in 2-12 days

0

2

Murray 028X23

Cap, Push 0n
(Superseded to 703948)

$4.49

$

In Stock, Qty 20+

0

3

Murray 94057

Spring
(Superseded to 94124)

$14.99

$

In Stock, only 1 left!

0

4

Murray 26X229

Screw
(Superseded to 26X229MA)

$4.49

$

In Stock, only 1 left!

0

5

Murray 1001054

Bolt, Wing
(Superseded to 1001054MA)

$6.99

$

Usually ships in 2-12 days

0

6

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

7

Murray 009X56

Bolt, Shoulder
(Superseded to 009X56MA)

$3.49

$

Usually ships in 2-12 days

0

8

Murray 094154E700

Support, Seat

$

$

Currently unavailable

9

Murray 094156ZMA

Rod, Pivot

$7.99

$

Usually ships in 2-12 days

0

10

Murray 1001648E700

Bracket, Pivot

$

$

Currently unavailable

11

Murray 001X45

Bolt
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

12

Murray 015X89

Nut
(Superseded to 015X89MA)

$4.49

$

Usually ships in 2-12 days

0

13

Murray 009X55

Bolt, Shoulder
(Superseded to 009X55MA)

$3.49

$

Usually ships in 2-12 days

0

14

Murray 094155 Z

Washer

$

$

Currently unavailable

15

Murray 164X31

Spring
(Superseded to 164X31MA)

$7.99

$

In Stock, only 2 left!

0

16

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

17

Murray 26X263

Screw
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

18

Murray 164X30

Spring
(Superseded to 164X30MA)

$15.99

$

Usually ships in 2-12 days

0

19

Murray 1001556E201

Deck, Seat

$

$

Currently unavailable

20

Murray 15X123

Nut
(Superseded to 15X123MA)

$3.99

$

Usually ships in 2-12 days

0

21

Murray 094194E700

Plate, Index

$

$

Currently unavailable

22

Murray 009X47

Screw
(Superseded to 009X47MA)

$4.49

$

Usually ships in 2-12 days

0

23

Murray 95408

Mat, Left

$

$

Not available

24

Murray 95409

Mat, Right

$

$

Not available

25

Murray 1001537E201

Hood

$

$

Not available

26

Murray 1001533E201

Grille

$

$

Currently unavailable

27

Murray 1001552

Lens, Left

$

$

Not available

28

Murray 1001550

Housing, Left Headlamp

$

$

Not available

29

Murray 1001551

Lens, Right

$11.99

$

Usually ships in 2-12 days

0

30

Murray 1001549

Housing, Right Headlamp

$30.99

$

Usually ships in 2-12 days

0

31

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

32

Murray 26X238

Screw

$3.99

$

Usually ships in 2-12 days

0

33

Murray 1001491

Bearing, Steering
(Superseded to 1001491MA)

$5.49

$

Usually ships in 2-12 days

0

34

Murray 1001593E201

Dash

$131.99

$

Usually ships in 2-12 days

0

35

Murray 26X201

Screw
(Superseded to 26X201MA)

$4.49

$

In Stock, only 2 left!

0

36

Murray 093007E201

Panel, Access

$

$

Currently unavailable

37

Murray 095318E201

Support, Dash

$

$

Currently unavailable

38

Murray 1001270E700

Bracket, Rear Hanger

$165.99

$

Usually ships in 2-12 days

0

40

Murray 094007E700

Axle, Hanger

$

$

Currently unavailable

43

Murray 1001928E701

Frame, Right

$104.99

$

Usually ships in 2-12 days

0

44

Murray 1001927E701

Frame, Left

$103.99

$

Usually ships in 2-12 days

0

45

Murray 690424

Container, Battery

$8.99

$

Usually ships in 2-12 days

0

46

Murray 1001002E201

Plate, Hitch

$

$

Currently unavailable

47

Murray 1001906E201

Plate, Rear

$

$

Currently unavailable

48

Murray 094186E700

Top, Rear Plate

$

$

Currently unavailable

50

Murray 015X81

Nut
(Superseded to 015X81MA)

$4.99

$

Usually ships in 2-12 days

0

53

Murray 1001540

Insert, Grille

$34.99

$

In Stock, only 1 left!

0

54

Murray 26X270

Screw
(Superseded to 26X270MA)

$4.49

$

In Stock, Qty 13

0

55

Murray 0193X1

Fastener, Panel
(Superseded to 0193X1MA)

$3.99

$

In Stock, only 1 left!

0

56

Murray 94680

Cover, Detent
(Superseded to 691660)

$3.99

$

In Stock, Qty 8

0

57

Murray 1001652

Trim, Hood (3.75")

$

$

Not available

58

Murray 1001653

Trim, Hood (6.5")

$10.99

$

Usually ships in 2-12 days

0

59

Murray 1001755

Grommet, Parking Brake

$3.49

$

Usually ships in 2-12 days

0

60

Murray 690482E701

Bracket, Support

$

$

Not available

61

Murray 1001891E701

Bracket, Right Transaxle
(Superseded to 1001891E701MA)

$40.99

$

Usually ships in 2-12 days

0

62

Murray 1001890E701

Bracket, Left Transaxle
(Superseded to 1001890E701MA)

$40.99

$

Usually ships in 2-12 days

0

70

Murray 1001542

Holder, Cup

$11.99

$

Usually ships in 2-12 days

0

--

Murray F-040774L

Instruction Book & Parts List

$

$

Currently unavailable
