C950-60405-1 - Craftsman 30" Rear-Engine Riding Mower, Canada (2005) (Sears) Mower Housing Suspension Parts Diagram

30" Rear-Engine Riding Mower, Canada

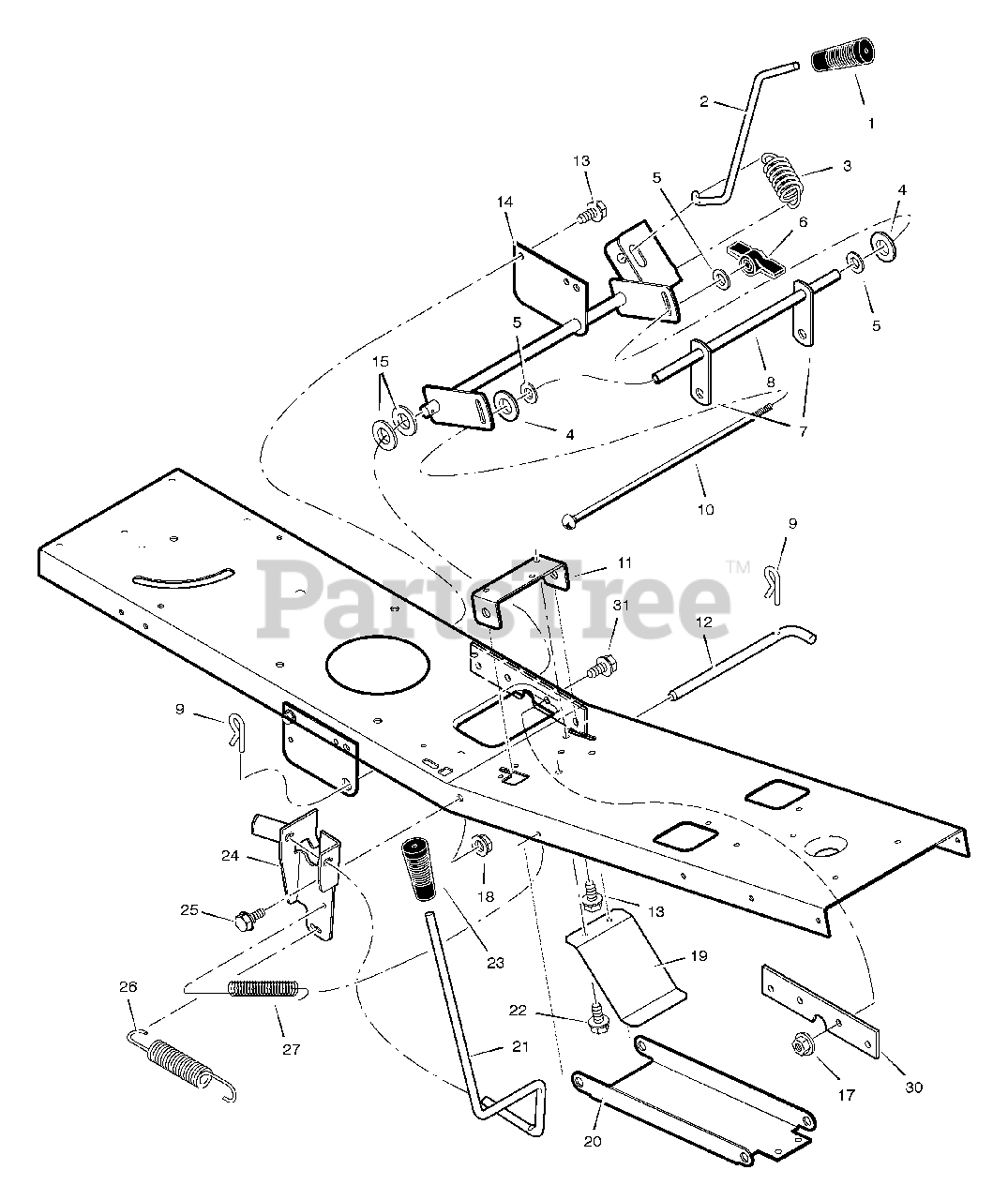

Mower Housing Suspension Parts Diagram

  • Title
1

Murray 092697MA

Grip, Lift Lever
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

2

Murray 1401117

Lever, Lift

$

$

Not available

3

Murray 165X154

Spring, Extension
(Superseded to 165X154MA)

$5.49

$

Usually ships in 2-12 days

0

4

Murray 094137MA

Pad, Friction

$6.99

$

In Stock, Qty 8

0

5

$

$

Not available

6

Murray 095004MA

Wingnut

$7.49

$

In Stock, only 2 left!

0

7

Murray 1401033E701

Link, Lift

$24.99

$

Usually ships in 2-12 days

0

8

Murray 1401096

Tube, Spacer

$

$

Not available

9

Murray 0031X4MA

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

10

Murray 002X93

Bolt, Carriage

$12.99

$

Usually ships in 2-12 days

0

11

Murray 1401030E701

Bracket, Front Hanger Pivot
(Superseded to 1401030E701MA)

$5.99

$

Usually ships in 2-12 days

0

12

Murray 1401118MA

Pin, Front Hanger

$43.99

$

Usually ships in 2-12 days

0

13

$

$

Not available

14

Murray 1401129E701

Arm Assembly, Lifter

$

$

Not available

15

Murray 17X206

Washer

$4.49

$

Usually ships in 2-12 days

0

17

Murray 015X79MA

Nut, Flange
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

18

Murray 015X84MA

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

19

Murray 1401147

Spring, Leaf

$8.99

$

Usually ships in 2-12 days

0

20

Murray 1401040E701MA

Hanger, Front

$48.99

$

Usually ships in 2-12 days

0

21

Murray 1401116

Lever, PTO

$51.99

$

Usually ships in 2-12 days

0

22

$4.99

$

In Stock, only 1 left!

0

23

Murray 094198MA

Grip, PTO

$6.49

$

Usually ships in 2-12 days

0

24

Murray 1401199E701

Bracket, PTO

$25.99

$

Usually ships in 2-12 days

0

25

Murray 009X42MA

Bolt, Shoulder
(Superseded to 704206)

$7.99

$

In Stock, only 1 left!

0

26

Murray 165X157MA

Spring, Extension

$11.99

$

Usually ships in 2-12 days

0

27

Murray 165X92MA

Spring, Extension

$5.49

$

In Stock, only 2 left!

0

30

Murray 1401260E701

Plate, Reinforcement

$

$

Not available

31

$4.99

$

In Stock, Qty 20+

0
