C950-60405-0 - Craftsman 30" Rear-Engine Riding Mower, Canada (2004) (Sears) Chassis & Hood Parts Diagram

30" Rear-Engine Riding Mower, Canada

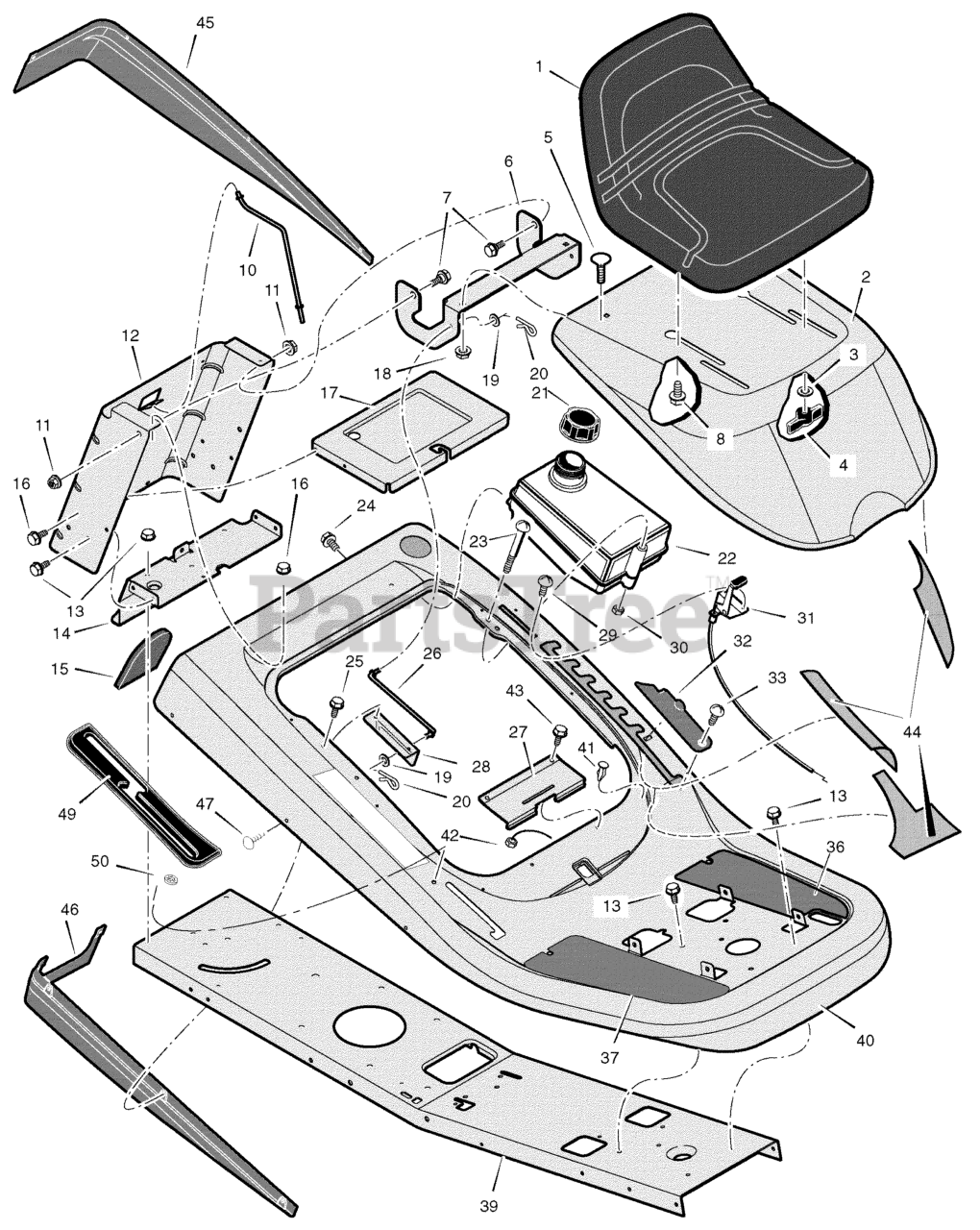

Chassis & Hood Parts Diagram

  • Title

1

Murray 690566

Seat

$20.99

$

Usually ships in 2-12 days

0

2

Murray 1401027E201

Hood

$267.99

$

Usually ships in 2-12 days

0

3

Murray 017X47MA

Washer
(Superseded to 704015)

$4.49

$

Usually ships in 2-12 days

0

4

Murray 1001054

Bolt, Wing
(Superseded to 1001054MA)

$6.99

$

Usually ships in 2-12 days

0

5

Murray 002X53

Bolt, Carriage
(Superseded to 703159)

$3.99

$

In Stock, Qty 19

0

6

Murray 1401036E701

Bracket, Hinge

$66.99

$

In Stock, only 1 left!

0

7

Murray 009X29

Bolt, Shoulder

$4.49

$

In Stock, only 1 left!

0

8

Murray 009X56

Bolt, Shoulder
(Superseded to 009X56MA)

$3.49

$

Usually ships in 2-12 days

0

10

Murray 1401113

Rod, Battery

$14.99

$

Usually ships in 2-12 days

0

11

Murray 015X84

Nut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

12

Murray 1401025E701

Plate, Rear

$131.99

$

Usually ships in 2-12 days

0

13

Murray 26X249

Screw
(Superseded to 26X249MA)

$

$

Not available

14

Murray 1401050E701

Plate, Hitch
(Superseded to 1401050E701MA)

$46.99

$

Usually ships in 2-12 days

0

15

Murray 1401087

Cover

$8.49

$

Usually ships in 2-12 days

0

16

Murray 26X263

Screw
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

17

Murray 1401076E701MA

TRAY, Battery

$54.99

$

Usually ships in 2-12 days

0

18

Murray 015X79

Nut, Flange

$5.49

$

In Stock, Qty 20+

0

19

Murray 017X45

Washer
(Superseded to 017X45MA)

$

$

Not available

20

Murray 0031X6

Pin, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

21

Murray 92317

Cap, Fuel Tank *
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

22

Murray 7601045

Tank, Fuel

$88.99

$

Usually ships in 2-12 days

0

23

Murray 06X111

Screw *

$5.99

$

Usually ships in 2-12 days

0

24

Murray 26X253

Screw

$4.49

$

In Stock, only 1 left!

0

25

Murray 26X263

Screw
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

26

Murray 1401110

Rod, Hood Prop

$12.99

$

Usually ships in 2-12 days

0

27

Murray 1401282

Spring, Seat Deck

$23.99

$

Usually ships in 2-12 days

0

28

Murray 1401297E701

Bracket, Prop Rod

$21.99

$

Usually ships in 2-12 days

0

29

Murray 26X201

Screw
(Superseded to 26X201MA)

$4.49

$

In Stock, only 2 left!

0

30

Murray 15X116

Nut, NY-Lock

$4.49

$

In Stock, Qty 20+

0

31

Murray 1401248

Control, Throttle

$39.99

$

Usually ships in 2-12 days

0

32

Murray 1401084

Cover, Detent (Black)

$6.99

$

Usually ships in 2-12 days

0

33

Murray 009X47

Bolt, Shoulder
(Superseded to 009X47MA)

$4.49

$

Usually ships in 2-12 days

0

36

Murray 1401229

Footmat, Left (Black)

$12.99

$

Usually ships in 2-12 days

0

37

Murray 1401228

Footmat, Right (Black)

$9.49

$

Usually ships in 2-12 days

0

39

Murray 1401298E701

Frame

$

$

Not available

40

Murray 1401316E201

Deck, Seat

$

$

Not available

41

Murray 94744

Bumper
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

42

Murray 15X116

Nut *

$4.49

$

In Stock, Qty 20+

0

43

Murray 0025X2

Screw
(Superseded to 197886GS)

$4.49

$

Usually ships in 2-12 days

0

44

Murray 7601036

Kit, Foil Heat Shield

$

$

Not available

45

Murray 1401073

Trim, Left

$52.99

$

Usually ships in 2-12 days

0

46

Murray 1401072

Trim, Right

$65.99

$

Usually ships in 2-12 days

0

47

Murray 0193X1

Fastener, Panel
(Superseded to 0193X1MA)

$3.99

$

In Stock, only 1 left!

0

49

Murray 1401331

Cover, Long Black

$29.99

$

Usually ships in 2-12 days

0

50

Murray 028X78

Nut, Push

$18.99

$

Usually ships in 2-12 days

0

--

Murray F-040606L

Book, Instruction

$

$

Currently unavailable
