C950-60107-1 (7800819 A) - Craftsman ZTS7000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton, Canada (2011) 52" Mower Deck - Idler Group Parts Diagram

ZTS7000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton, Canada

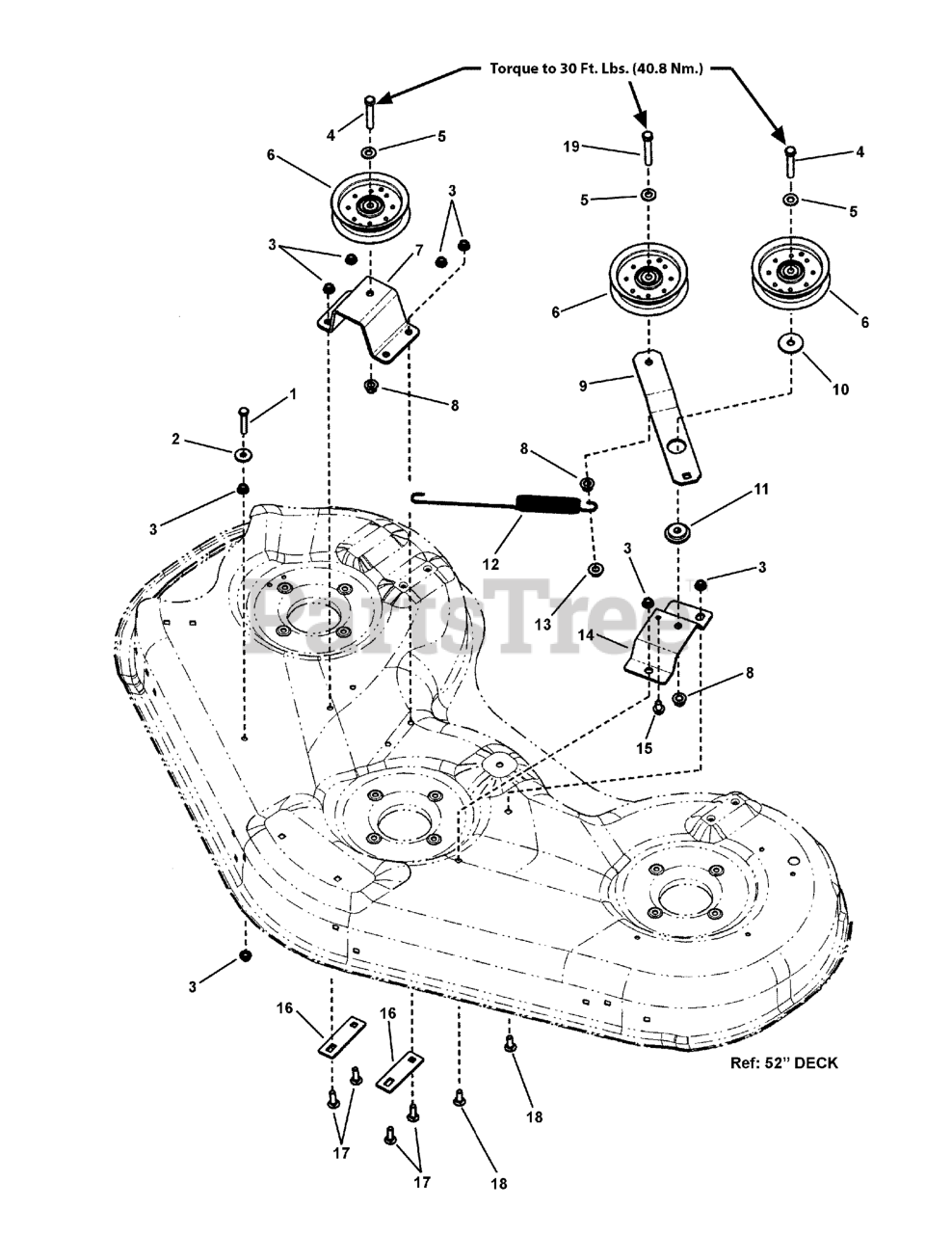

52" Mower Deck - Idler Group Parts Diagram

  • Title
1

Murray 1922127SM

SCREW, Hex Head Cap, 5/16-18 x 1 3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

2

Murray 1919381SM

WASHER, 5/16" Flat (.341 ID x 1.00 OD x .13 Thick) Black
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

3

Murray 1927557SM

NUT, 5/16-18 Hex Flange Lock, Large, Black

$4.99

$

Usually ships in 2-12 days

0

4

Murray 1922130SM

SCREW, 3/8-16 x 2-1/2" Hex Head Cap, GR 5 Black
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

5

Murray 1924940SM

WASHER, 3/8" Flat (.41 ID x .87 OD)
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

6

Murray 1736540YP

PULLEY, Idler

$35.99

$

In Stock, only 3 left!

0

7

Murray 7301102BMYP

BRACKET, Idler, Rear, RZT

$

$

Not available

8

Murray 1931211SM

NUT, 3/8-16 Hex Flange lock, GR F, BZ
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

9

Murray 7301100BMYP

ARM, Idler, 46/52 RZT

$

$

Not available

10

Murray 7091331SM

WASHER, .406 x 1.50 x .120 Flat, Yellow Zinc
(Superseded to 703591)

$5.49

$

In Stock, Qty 20+

0

11

Murray 1714255SM

SPACER, .406 ID x 1.50 OD x .350 Thick, PM

$6.49

$

In Stock, Qty 17

0

12

Murray 1737415YP

SPRING, Extension

$12.99

$

In Stock, only 1 left!

0

13

Murray 1960339SM

NUT, 3/8-16 Hex Flange Lock, Large, Black

$

$

Not available

14

Murray 1736437BMYP

BRACKET, Idler Mount Front, Black

$21.99

$

Usually ships in 2-12 days

0

15

Murray 1664847SM

SCREW, 5/16-18 x 3/4" Hex Washer Head Self-Tap, Black
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

16

Murray 1737229BMYP

PLATE, Idler Bracket 46/52 Mowers

$8.49

$

Usually ships in 2-12 days

0

17

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

18

Murray 1931334SM

BOLT, 5/16-18 x 7/8" Round Head Short Square Neck, GR 5, Black
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

19

Murray 1933685SM

SCREW, 3/8-16 x 2-1/2" Hex Head Cap GR 5 Black

$5.49

$

In Stock, only 1 left!

0
