C950-60107-0 (7800819) - Craftsman ZTS7000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton, Canada (2011) Wheel & Tire Group Parts Diagram

ZTS7000 Series 52" Zero-Turn Mower, 26hp Briggs & Stratton, Canada

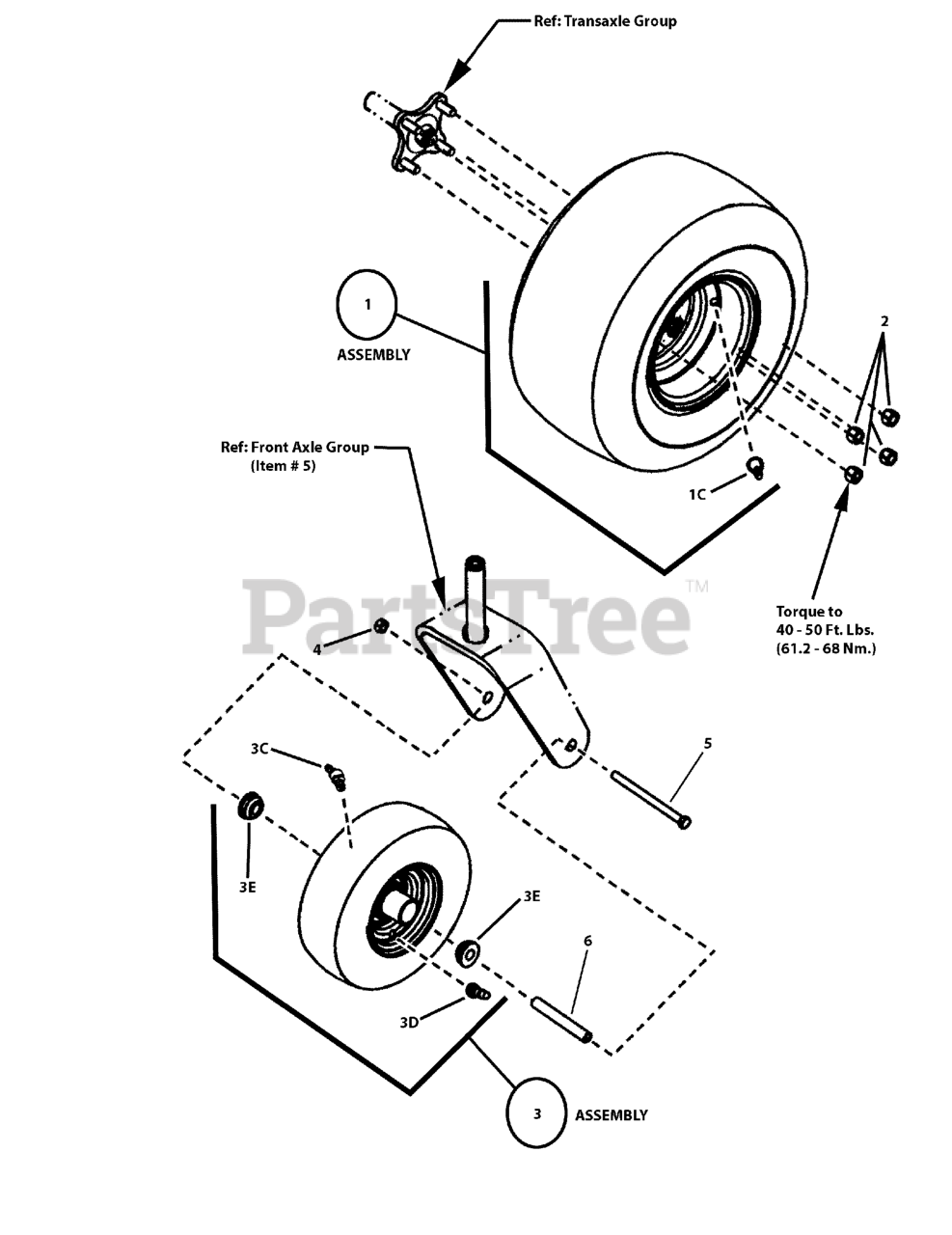

Wheel & Tire Group Parts Diagram

  • Title

1

Murray 7103403YP

ASSEMBLY, Tire & Wheel (Rim)

Note: (Incl. Ref. 1C)

$256.99

$

In Stock, only 2 left!

0

1C

Murray 7012234SM

AIR VALVE STEM, Snap-In

Note: (Included with Ref. 1)

$6.49

$

Usually ships in 2-12 days

0

2

Murray 7027192SM

LUG NUT, 1/2 - 20 Tapered Seat, YZ

$2.49

$

Usually ships in 2-12 days

0

3

Murray 1734013SM

ASSEMBLY, Wheel & Tire Sears ZTS 11 x 4-5

Note: (Incl. Ref. 3C, 3D, 3E)

$110.99

$

In Stock, Qty 20+

0

3C

Murray 7104428YP

GREASE FITTING, (8M x 1 threads, 45 degree)

Note: (Included with Ref. 3)

$5.49

$

In Stock, Qty 10

0

3D

Murray 2172353SM

VALVE, Air
(Superseded to 024373MA)

Note: (Included with Ref. 3)

$

$

Not available

3E

Murray 1739281YP

BUSHING, 0.632ID 1.377OD, .62
(Superseded to 1759320YP)

Note: (Included with Ref. 3)

$12.99

$

In Stock, Qty 20+

0

4

Murray 7090839SM

NUT, 7/16-14 Hex Center Lock, GR 5 or B

$4.99

$

In Stock, Qty 5

0

5

Murray 7091772SM

SCREW, 7/16-14NC x 6", Hex Head Cap, GR 5, YZ

$8.49

$

In Stock, Qty 20+

0

6

Murray 1734841SM

TUBE, Caster Wheel

$12.99

$

In Stock, Qty 20+

0
