C950-60106-1 (7800820 A) - Craftsman ZTS7000 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton, Canada (2011) Fuel Tank Group - EVAP Compliant (7502193) Parts Diagram

ZTS7000 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton, Canada

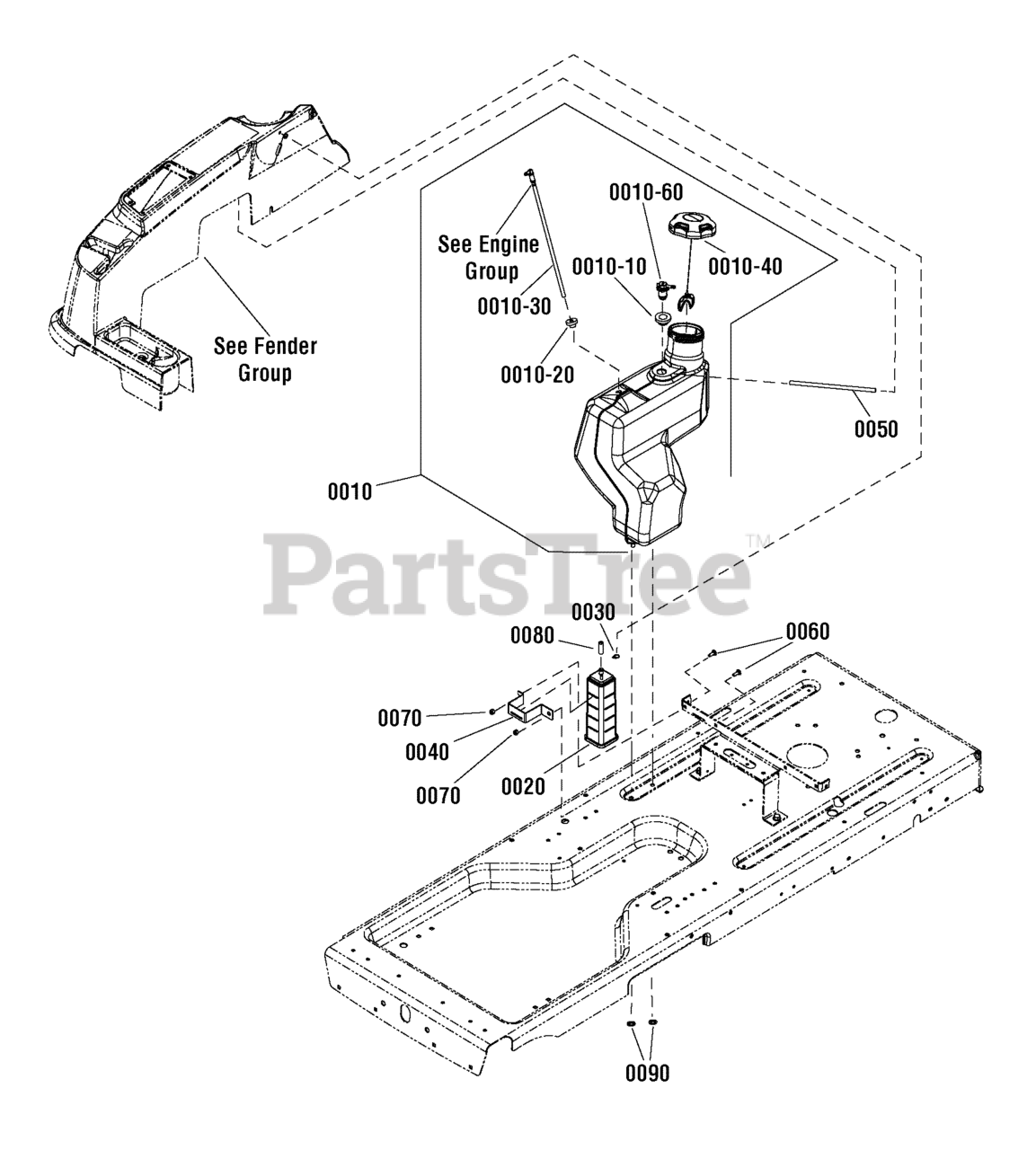

Fuel Tank Group - EVAP Compliant (7502193) Parts Diagram

  • Title

0010

Murray 7104646YP

TANK ASSEMBLY

Note: (Incl. Ref. 0010-10, 0010-20, 0010-30, 0010-40, & 0010-60)

$292.99

$

Usually ships in 2-12 days

0

0010-10

Murray 799624

GROMMET

Note: (Included with Ref. No. 0010)

$8.99

$

In Stock, Qty 16

0

0010-20

Murray 1726400SM

BUSHING, Fuel Tank
(Superseded to 1654930SM)

Note: (Included with Ref. No. 0010)

$7.99

$

In Stock, Qty 20+

0

0010-30

Murray 7103536YP

ASSEMBLY, Fuel Hose
(Superseded to 1753791YP)

Note: (Included with Ref. No. 0010)

$279.99

$

Usually ships in 2-12 days

0

0010-40

Murray 7104639YP

CAP, Fuel, Emissions, 3 1/2

Note: (Included with Ref. No. 0010)

$48.99

$

Usually ships in 2-12 days

0

0010-60

Murray 7104638YP

REMOTE VENT ASSEMBLY

Note: (Included with Ref. No. 0010)

$

$

Not available

0020

Murray 7101425YP

CANISTER

$45.99

$

In Stock, only 1 left!

0

0030

Murray 795230

HOSE CLAMP

$3.99

$

Usually ships in 2-12 days

0

0040

Murray 7301099BZYP

BRACKET, Vaper Canister

$16.99

$

Usually ships in 2-12 days

0

0050

Murray 7200141YP

HOSE, Vapor 16" Length

$12.99

$

Usually ships in 2-12 days

0

0060

Murray 7091530SM

BOLT, Carriage, Short Neck, 1/4-20 x 3/4, G5

$3.99

$

In Stock, only 3 left!

0

0070

Murray 7091603SM

NUT, 1/4-20 Hex Nyloc, YZ
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0080

Murray 7014361YP

CAP, Canister

$4.49

$

Usually ships in 2-12 days

0

0090

Murray 7013847YP

RETAINER, Bolt 3/8"
(Superseded to 703986)

$4.49

$

Usually ships in 2-12 days

0
