C950-60106-1 (7800820 A) - Craftsman ZTS7000 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton, Canada (2011) Control Group - Left Hand (7502144) Parts Diagram

ZTS7000 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton, Canada

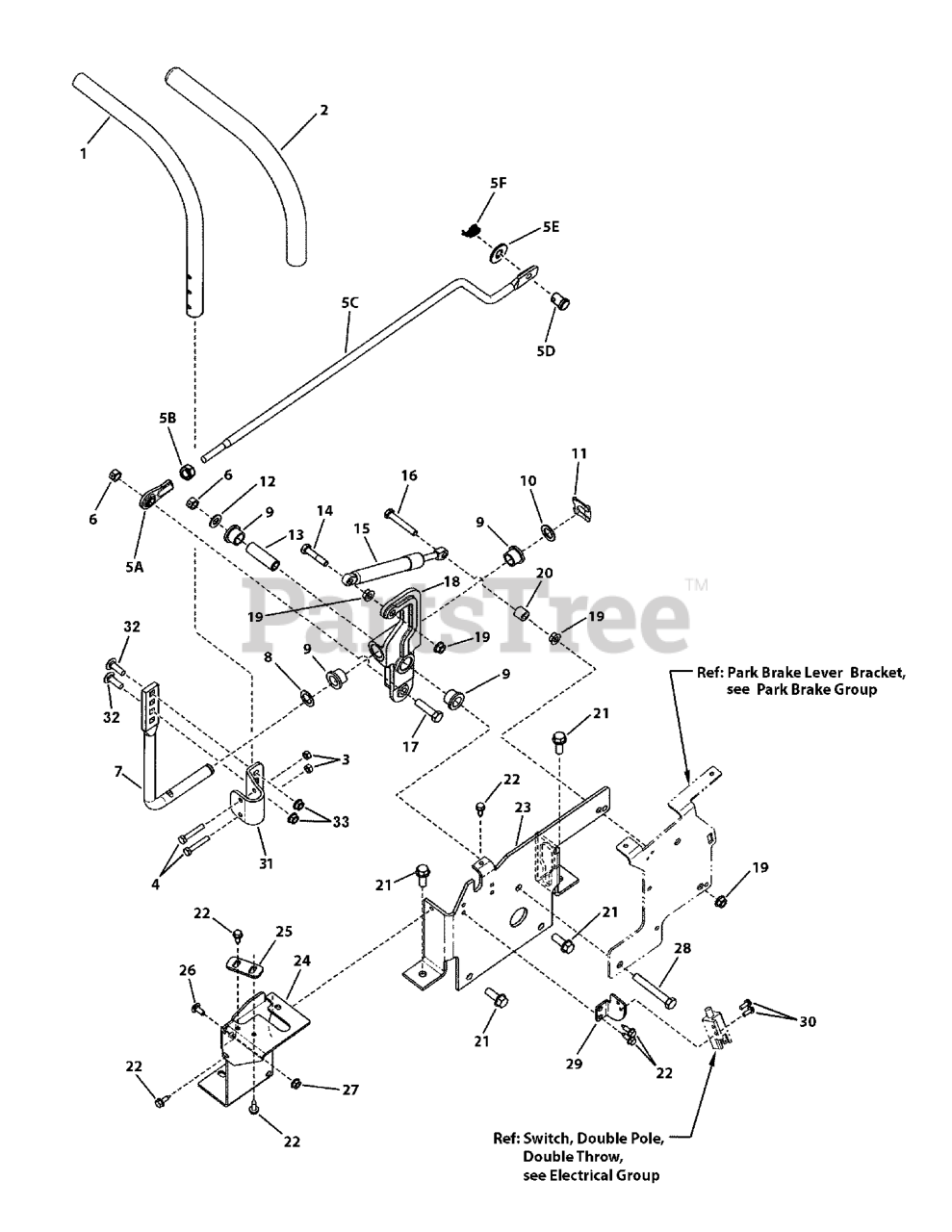

Control Group - Left Hand (7502144) Parts Diagram

  • Title

1

Murray 7301168BZYP

HANDLE, Adjustable

$30.99

$

Usually ships in 2-12 days

0

2

Murray 7100051YP

GRIP, Handle

$10.99

$

Usually ships in 2-12 days

0

3

Murray 7090372SM

NUT, Hex, Center Lock, 1/4-20, GR 5
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

4

Murray 1922837SM

CAPSCREW, Hex Head, 1/4-20 x 1-1/2, GR 5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

5A

Murray 7100743YP

ROD END, (3/8-24 thread)

$10.99

$

In Stock, only 2 left!

0

5B

Murray 7091630SM

NUT, Hex, 3/8-24, GR 5
(Superseded to 703895)

$4.49

$

Usually ships in 2-12 days

0

5C

Murray 7104168YP

ROD, Link Forward/Reverse

$30.99

$

Usually ships in 2-12 days

0

5D

Murray 7900000SM

CLEVIS PIN, 7/16 x 1

$6.99

$

Usually ships in 2-12 days

0

5E

Murray 7031961YP

WASHER, Flat, 7/16
(Superseded to 703964)

$4.49

$

In Stock, Qty 20+

0

5F

Murray 7091594SM

COTTER PIN, Self Locking, 1/2

$2.99

$

In Stock, only 2 left!

0

6

Murray 7091585SM

NUT, Hex, Center Lock, 3/8-16, GR 5
(Superseded to 703347)

$4.99

$

In Stock, only 2 left!

0

7

Murray 7104677YP

ROD, Handle, Adjustable

$40.99

$

In Stock, only 1 left!

0

8

Murray 7091628SM

WASHER, Flat, 5/8

$4.49

$

In Stock, only 3 left!

0

9

Murray 7013874SM

BUSHING, Bronze, 5/8 x 5/8

$5.99

$

In Stock, Qty 5

0

10

Murray 7900016SM

WASHER, Nylon, 5/8 ID x 1" OD

$3.49

$

Usually ships in 2-12 days

0

11

Murray 7104704YP

CLIP, Spring, 5/8 OD Shaft

$5.49

$

Usually ships in 2-12 days

0

12

Murray 7090122SM

WASHER, Flat, 3/8 (SAE)

$

$

Not available

13

Murray 7100714YP

SPACER, Sleeve, RZT

$16.99

$

Usually ships in 2-12 days

0

14

Murray 7091540YP

CAPSCREW, Hex Head, 5/16-18 x 1-1/2,GR 5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

15

Murray 5100728SM

DAMPENER, Control
(Superseded to 5103511YP)

$62.99

$

In Stock, Qty 16

0

16

Murray 7027174SM

CAPSCREW, Hex Head, 5/16-18 x 2, GR 5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

17

Murray 7091497SM

CAPSCREW, Hex Head, 3/8-16 x 1-1/2, GR 5
(Superseded to 703406)

$4.99

$

In Stock, only 1 left!

0

18

Murray 7100715YP

ARM, Control, Die Cast, LH

$28.99

$

Usually ships in 2-12 days

0

19

Murray 7090372SM

NUT, Hex Center Lock, 5/16-18
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

20

Murray 7023206YP

SPACER, .625 OD x .380 ID x .564 L

$8.49

$

Usually ships in 2-12 days

0

21

Murray 7090324SM

SCREW, Hex Washer Head, Self-Tap, 3/8-16 x 1
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

22

Murray 7090290SM

SCREW, Hex Washer Head, Self-Tap, 1/4-20 x 3/4
(Superseded to 703466)

$3.99

$

In Stock, Qty 10

0

23

Murray 7043302BMYP

BRACKET, Control, LH

$33.99

$

Usually ships in 2-12 days

0

24

Murray 7301128BMYP

BRACKET, Guide, Stick, Control, LH

$27.99

$

Usually ships in 2-12 days

0

25

Murray 7300009AYP

PLATE, Fwd/Rev Adjust

$7.99

$

Usually ships in 2-12 days

0

26

Murray 7091573YP

BOLT, Carriage, Short Neck, 1/4-20 x 5/8, GR 5

$4.49

$

In Stock, only 1 left!

0

27

Murray 1960294SM

NUT, Hex Flange Lock, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

28

Murray 1922918SM

CAPSCREW, Hex Head, 3/8-16 x 3-1/4, GR 5
(Superseded to 703874)

$4.49

$

In Stock, Qty 11

0

29

Murray 7300032BMYP

BRACKET, Switch

$9.99

$

Usually ships in 2-12 days

0

30

Murray 7090913SM

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 9

0

31

Murray 7074628BZYP

BRACKET, Handle Adjustment

$12.99

$

Usually ships in 2-12 days

0

32

Murray 7091714YP

BOLT, Carriage, 5/16-18 x 1, GR 5
(Superseded to 703483)

$3.99

$

In Stock, only 1 left!

0

33

Murray 1935048SM

NUT, Hex Flange Two-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0
