C950-60106-0 (7800820) - Craftsman ZTS7000 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton, Canada (2011) 42" Mower Deck - Housing Group (7502142) Parts Diagram

ZTS7000 Series 42" Zero-Turn Mower, 21hp Briggs & Stratton, Canada

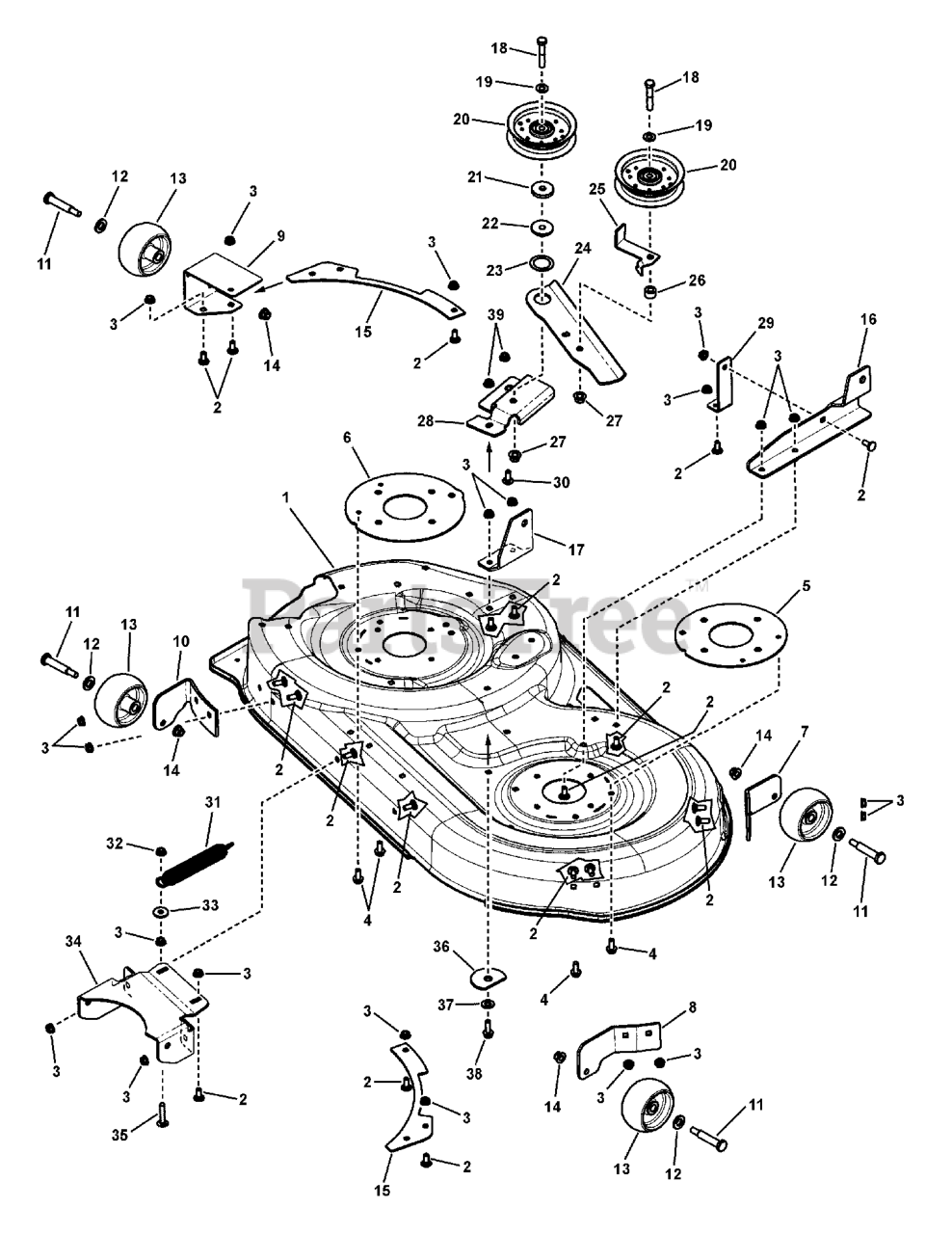

42" Mower Deck - Housing Group (7502142) Parts Diagram

  • Title

1

Murray 1736504CAYP

HOUSING, Mower, 42"
(Superseded to 1736504ZYP)

$506.99

$

In Stock, only 1 left!

0

2

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

3

Murray 1931277SM

NUT, Hex Flange Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

4

Murray 7091524YP

SCREW, Hex Washer Head, Self Tap, 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, Qty 7

0

5

Murray 1750458BZYP

PLATE, Spindle, LH
(Superseded to 1750458BMYP)

$28.99

$

Usually ships in 2-12 days

0

6

Murray 1750457BZYP

PLATE, Spindle
(Superseded to 1750457BMYP)

$28.99

$

In Stock, only 1 left!

0

7

Murray 1731403ASM

SUPPORT, Gauge Wheel, LH

$14.99

$

In Stock, only 1 left!

0

8

Murray 1732258BMYP

BRACKET, Gage Wheel, Front, LH

$29.99

$

In Stock, Qty 8

0

9

Murray 7301171BZYP

BRACKET, Gage Wheel, Rear, RH
(Superseded to 7301171BMYP)

$30.99

$

Usually ships in 2-12 days

0

10

Murray 1731402ASM

SUPPORT, Gauge Wheel, RH

$14.99

$

Usually ships in 2-12 days

0

11

Murray 2108765SM

BOLT, Shoulder, 3/8-16

$6.49

$

In Stock, Qty 20+

0

12

Murray 1960170SM

WASHER, Flat, 1/2
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

13

Murray 1714760SM

GAUGE WHEEL

$6.49

$

In Stock, Qty 20+

0

14

Murray 1960687SM

NUT, Hex Flange, ESNA, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

15

Murray 094058E700MA

PLATE, Rear
(Superseded to 690539E701MA)

$54.99

$

Usually ships in 2-12 days

0

16

Murray 7301165BZYP

BRACKET, Support, Deck, Rear, LH

$31.99

$

Usually ships in 2-12 days

0

17

Murray 7301172BZYP

BRACKET, Support, Deck, Rear, RH

$24.99

$

Usually ships in 2-12 days

0

18

Murray 7091560YP

CAPSCREW, Hex Head, 3/8-16 x 2-1/4, GR 5
(Superseded to 703872)

$4.99

$

In Stock, Qty 20+

0

19

Murray 7090122YP

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 12

0

20

Murray 1736540YP

PULLEY, Idler

$35.99

$

In Stock, Qty 6

0

21

Murray 1960534SM

WASHER, Flat, 3/8

$

$

Not available

22

Murray 1714255SM

SPACER, 13/32 ID x 1-1/2 OD

$6.49

$

In Stock, Qty 17

0

23

Murray 7031079YP

WASHER, Thrust

$6.99

$

In Stock, Qty 20+

0

24

Murray 1734243BMYP

ARM, Idler

$

$

Not available

25

Murray 7301201BZYP

BELT GUIDE, Idler

$17.99

$

Usually ships in 2-12 days

0

26

Murray 7016719YP

SPACER, 3/4 OD x 3/8 ID x 1/2"

$7.49

$

Usually ships in 2-12 days

0

27

Murray 1931211SM

NUT, Hex Flange Lock, 3/8-16, GR F
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

28

Murray 7300569BZYP

BRACKET, Idler

$46.99

$

Usually ships in 2-12 days

0

29

Murray 1733577BMYP

SUPPORT, Brace

$24.99

$

Usually ships in 2-12 days

0

30

Murray 1931334SM

BOLT, Carriage, Short Neck, 5/16-18 x 7/8, GR 5
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

31

Murray 1733844SM

SPRING, Extension

$22.99

$

Usually ships in 2-12 days

0

32

Murray 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

33

Murray 1919381SM

WASHER, Flat, .34 ID x 1" OD
(Superseded to 703298)

$4.49

$

In Stock, only 1 left!

0

34

Murray 7301170BZYP

BRACKET, Hanger, Front

$76.99

$

Usually ships in 2-12 days

0

35

Murray 1931338SM

BOLT, Carriage, Short Neck, 5/16-18 x 1-3/4, GR 5
(Superseded to 703175)

$3.99

$

In Stock, only 2 left!

0

36

Murray 7091775SM

WASHER, Flat, Special, 1/2 ID x 2-1/2 OD

$7.49

$

Usually ships in 2-12 days

0

37

Murray 1924940SM

WASHER, Flat, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

38

Murray 7091591SM

BOLT, Hex Flange Lock, 5/16-18 x 1, GR 5
(Superseded to 703410)

$4.49

$

In Stock, only 2 left!

0

39

Murray 1927557SM

NUT, Hex Flange Lock, Large, 5/16-18

$4.99

$

Usually ships in 2-12 days

0
