C950-52955-0 (1695745) - Craftsman 27" Snow Thrower, Canada (2009) Auger Drive Group Parts Diagram

27" Snow Thrower, Canada

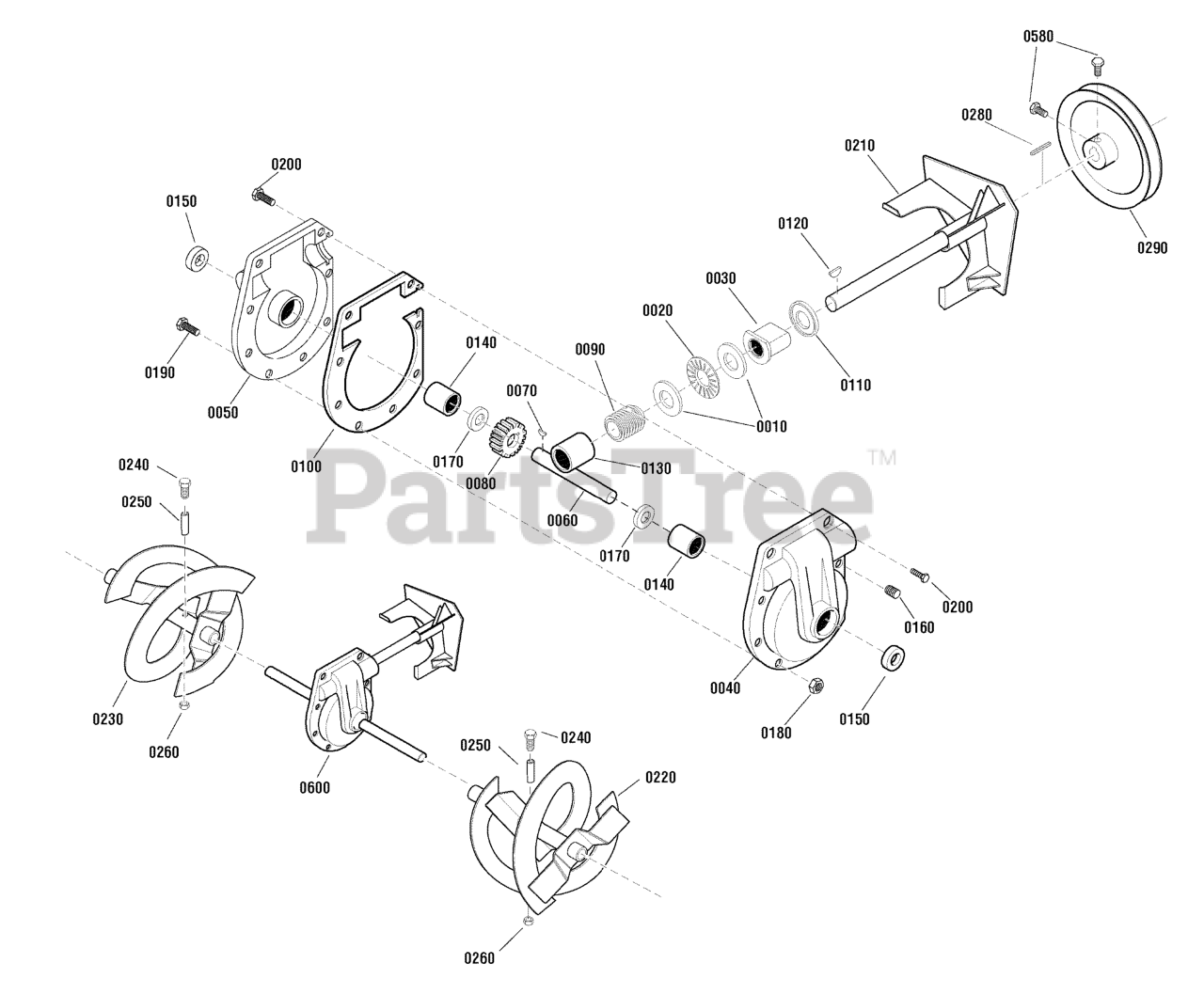

Auger Drive Group Parts Diagram

  • Title

0010

Murray 48275MA

WASHER, FLAT

$6.49

$

In Stock, Qty 6

0

0020

Murray 50684MA

BEARING, Roll, 3/4ID x 1-1/4OD

$6.49

$

In Stock, only 1 left!

0

0030

Murray 583126MA

BEARING, FLANGE

$13.99

$

In Stock, Qty 6

0

0040

Murray 895MA

CASE, GEAR, LH

$

$

Not available

0050

Murray 896MA

CASE, GEAR, RH

$32.99

$

In Stock, only 4 left!

0

0060

Murray 760529MA

SHAFT, AUGER OUTPUT

$76.99

$

Usually ships in 2-12 days

0

0070

Murray 73905MA

KEY, WOODRUFF #91
(Superseded to 704280)

$4.99

$

In Stock, Qty 9

0

0080

Murray 53730MA

WORM GEAR
(Superseded to 1752500YP)

$79.99

$

In Stock, Qty 5

0

0090

Murray 53732MA

WORMGEAR, 1-3/4OD x 1-9/16

$49.99

$

In Stock, only 1 left!

0

0100

Murray 897MA

GASKET, GEAR BOX

$

$

Not available

0110

Murray 53737MA

RING, QUAD 0.924 ID

$4.99

$

In Stock, Qty 8

0

0120

Murray 50795MA

KEY

$5.99

$

In Stock, only 1 left!

0

0130

Murray 53731MA

BEARING, SLEEVE

$5.49

$

In Stock, Qty 11

0

0140

Murray 53743MA

BEARING, SLEEVE

$9.99

$

Usually ships in 2-12 days

0

0150

Murray 780151MA

SEAL, OIL

$10.99

$

In Stock, Qty 6

0

0160

Murray 53749MA

PLUG, PIPE 0.25-18
(Superseded to 703122)

$3.49

$

Usually ships in 2-12 days

0

0170

Murray 53748MA

WASHER, FLAT

$9.99

$

In Stock, only 2 left!

0

0180

Murray 71100MA

NUT, 5/16-24
(Superseded to 703123)

$3.49

$

In Stock, Qty 20+

0

0190

Murray 910828MA

SCREW, 5/16-24 x 1.00
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

0200

Murray 330434MA

SCREW, 5/16-24 x 1.50
(Superseded to 703568)

$4.99

$

Usually ships in 2-12 days

0

0210

Murray 1737372AYP

WELD, IMPELLER

$77.99

$

Usually ships in 2-12 days

0

0220

Murray 760603E701MA

AUGER, ASSEMBLY, LH

$136.99

$

Usually ships in 2-12 days

0

0230

Murray 760604E701MA

AUGER, ASSEMBLY, RH

$

$

Not available

0240

Murray 9524MA

SCREW, 1/4-20 X 1.75
(Superseded to 703057)

$5.99

$

In Stock, Qty 6

0

0250

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

0260

Murray 73826MA

NUT, 1/4 - 20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0280

Murray 2001022MA

KEY, SQUARE 3/16 X 3/4

$4.49

$

In Stock, Qty 12

0

0290

Murray 1737261YP

PULLEY ASSEMBLY

$54.99

$

Usually ships in 2-12 days

0

0580

Murray 1930540SM

SETSCREW, 5/16-18 X 1/2, G8

$4.49

$

In Stock, Qty 11

0

0600

Murray 1739734YP

GEAR CASE ASSEMBLY

Note: Inc. Ref No. 0010, 0020, 0030, 0040, 0050, 0060, 0070, 0080, 0090, 0100, 0110, 0120, 0120, 0130, 0140, 0150, 0160, 0170, 0180, 0190, 0200, 0210

$

$
