C950-52951-0 (1695744) - Craftsman 31" Snow Thrower, Canada (2010) Auger Drive Group Parts Diagram

31" Snow Thrower, Canada

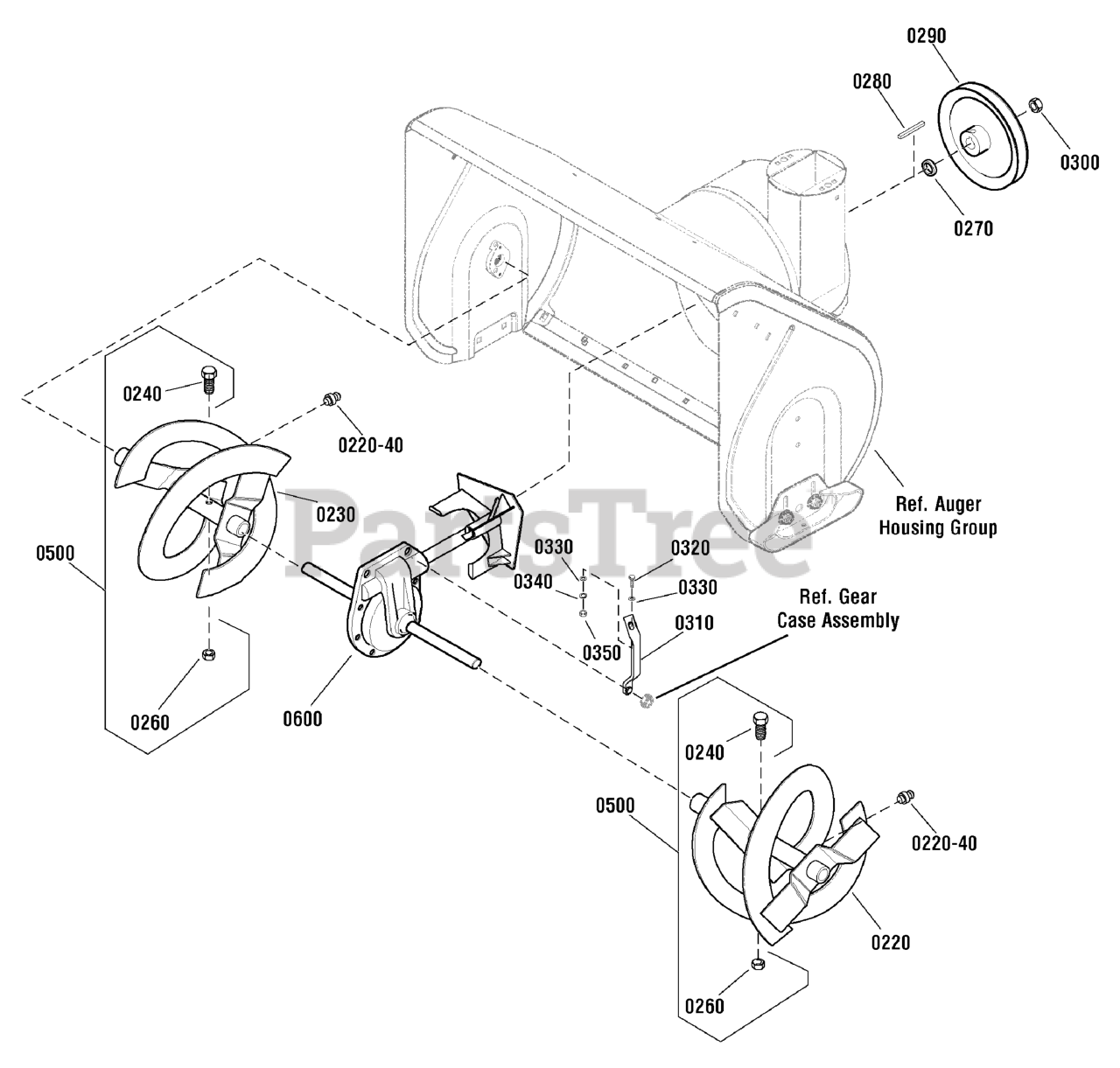

Auger Drive Group Parts Diagram

  • Title

0220

Murray 1739139AYP

AUGER, 31, Left

Note: (Includes Ref. No. 0220-40)

$243.99

$

Usually ships in 2-12 days

0

0230

Murray 1739138AYP

AUGER, 31, Right

Note: (Includes Ref. No. 0220-40)

$

$

Not available

0220-40

Murray 10104MA

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0240

Murray 9524MA

SCREW, Hex Head, 1/4-20 x 1-3/4
(Superseded to 703057)

Note: (Grade 2)

$5.99

$

In Stock, only 4 left!

0

0260

Murray 73842MA

NUT, Centerlock, 1/4-20
(Superseded to 500016MA)

$15.99

$

In Stock, only 1 left!

0

0270

Murray 1501158MA

SPACER, Friction Pulley

$4.99

$

In Stock, Qty 9

0

0280

Murray 2001022MA

KEY,Square

$4.49

$

In Stock, Qty 11

0

0290

Murray 583146MA

PULLEY, 8.4, V4L

$

$

Not available

0300

Murray 15X112MA

NUT, Hex Flange, Serrated, 1/2-20

$5.49

$

In Stock, only 2 left!

0

0310

Murray 1740570MA

BRACE, Gear Box
(Superseded to 703131)

Note: (Included with Ref. No. 0600)

$9.49

$

Usually ships in 2-12 days

0

0320

Murray 302636MA

SCREW, Hex Head, 5/16-18 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

0330

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

0340

Murray 71060MA

WASHER, Splitlock
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

0350

Murray 15X144MA

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

0500

Murray 1501217MA

SHEAR BOLT KIT

Note: (Includes Ref. Nos. 0240 & 0260)

$8.99

$

Usually ships in 2-12 days

0

0600

Murray 1738607YP

GEAR CASE ASSEMBLY

$1025.99

$

Usually ships in 2-12 days

0
