C950-52948-0 (1695737) - Craftsman 30" Snow Thrower, Canada (2009) Discharge Chute Parts Diagram

30" Snow Thrower, Canada

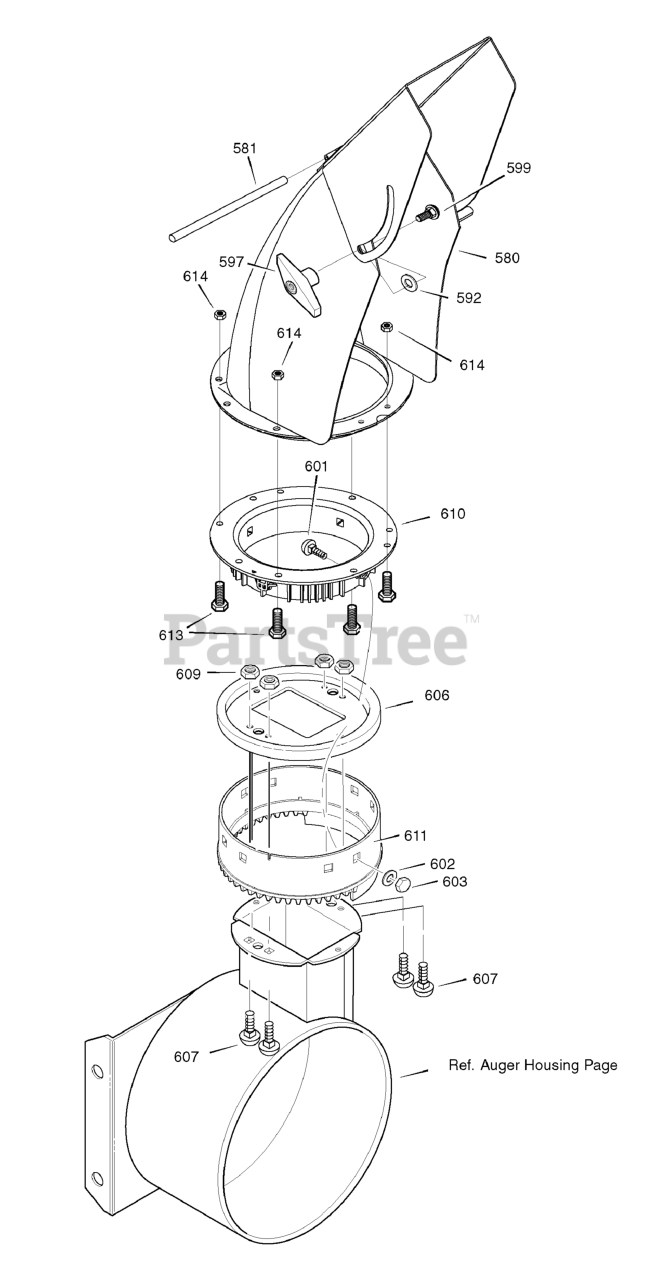

Discharge Chute Parts Diagram

  • Title

580

Murray 1736380AYP

CHUTE ASSEMBLY

$185.99

$

In Stock, only 1 left!

0

581

Murray 305216MA

PIN

$6.49

$

Usually ships in 2-12 days

0

592

Murray 2860210SM

WASHER, PLASTIC

$4.49

$

In Stock, only 3 left!

0

597

Murray 1501260MA

KNOB, T 3.00

$7.99

$

In Stock, Qty 8

0

599

Murray 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

601

Murray 2X100MA

CARRIAGE BOLT, 5/16-18 x 1.00
(Superseded to 704217)

$

$

Not available

602

Murray 71071MA

WASHER
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

603

Murray 71038MA

NUT, Hex, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

606

Murray 1501932YZMA

CHUTE COLLAR

$28.99

$

In Stock, only 1 left!

0

607

Murray 02X101MA

BOLT, CARRIAGE 1/4-20 X 0.75
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

609

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray 1741917YP

RETAINER RING INNER

$22.99

$

Usually ships in 2-12 days

0

611

Murray 1501282MA

RETAINER RING OUTER

$26.99

$

In Stock, only 2 left!

0

613

Murray 7091530SM

BOLT, Carriage, Hex Flange Head, 1/4-20 x 3/4

$3.99

$

In Stock, only 3 left!

0

614

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0
