C950-52946-1 (1695739) - Craftsman 24" Snow Thrower, Canada (2010) Handles & Controls Group Parts Diagram

24" Snow Thrower, Canada

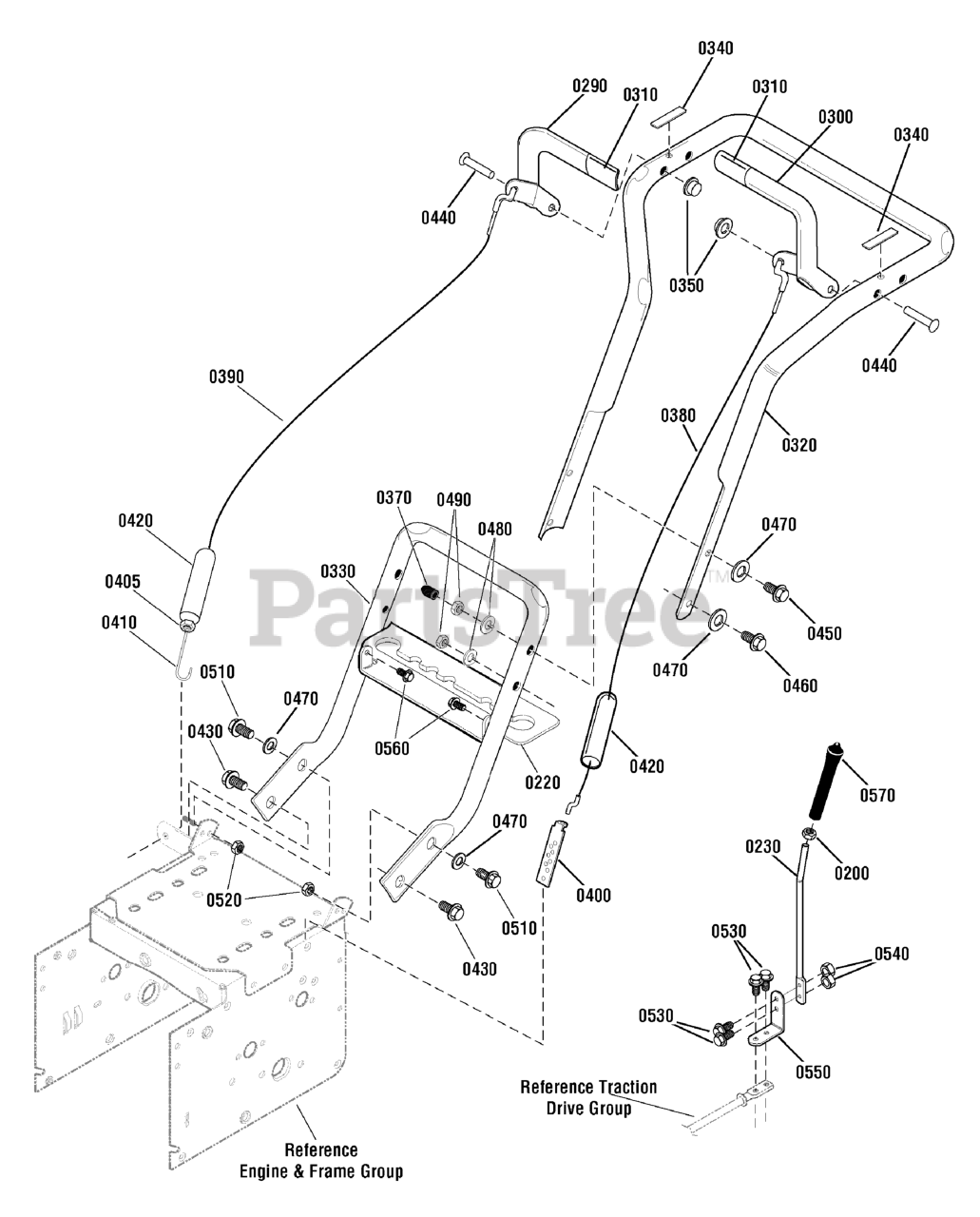

Handles & Controls Group Parts Diagram

  • Title
0200

Murray 318486MA

NUT, Hex Jam, 1/2-13

$3.99

$

In Stock, only 1 left!

0

0220

Murray 1740698ASM

BRACKET, Gear Select

$19.99

$

Usually ships in 2-12 days

0

0230

Murray 1739507AYP

ROD, Shift

$12.99

$

Usually ships in 2-12 days

0

0290

Murray 1740690AYP

LEVER, Control, R.H.

$38.99

$

Usually ships in 2-12 days

0

0300

Murray 1740719AYP

LEVER, Control, L.H.

$35.99

$

Usually ships in 2-12 days

0

0310

Murray 333927MA

GRIP, Clutch

$5.49

$

In Stock, only 2 left!

0

0320

Murray 1740697AYP

HANDLE, Upper

$136.99

$

Usually ships in 2-12 days

0

0330

Murray 1740701ASM

HANDLE, Lower

$140.99

$

Usually ships in 2-12 days

0

0340

Murray 4049MA

BUMPER

$

$

Not available

0350

Murray 3535MA

NUT, Push Cap, 5/16

$4.99

$

Usually ships in 2-12 days

0

0370

$4.49

$

Usually ships in 2-12 days

0

0380

Murray 1501123MA

CABLE, Front Drive

$12.99

$

In Stock, Qty 20+

0

0390

Murray 761589MA

CABLE, Auger

$15.99

$

In Stock, only 3 left!

0

0400

Murray 313441MA

BRACKET, Cable Adjusting

$

$

Not available

0405

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0410

Murray 1673MA

SPRING, Auger Control

$8.99

$

In Stock, Qty 12

0

0420

Murray 308146MA

BOOT, Spring End Cover

$6.49

$

In Stock, only 2 left!

0

0430

Murray 25X021MA

CAPSCREW, Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0440

Murray 1501477MA

PIN, Compact Handle

$

$

Not available

0450

Murray 11234MA

CAPSCREW, Hex Head, 5/16-18 x 2-3/4, G5

$5.99

$

Usually ships in 2-12 days

0

0460

Murray 302900MA

CAPSCREW, Hex Head, 5/16-18 x 1-3/4

$4.49

$

Usually ships in 2-12 days

0

0470

Murray 71071MA

WASHER, Flat, 3/8
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

0480

Murray 71060MA

WASHER, Splitlock, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0490

Murray 15X144MA

NUT, Hex, 5/16-18

$3.99

$

In Stock, only 1 left!

0

0510

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0520

Murray 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0530

Murray 302628MA

CAPSCREW, Hex Head, 1/4-20 x 3/4, G5

$4.49

$

In Stock, Qty 7

0

0540

Murray 73826MA

NUT, Hex Centerlock, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0550

Murray 760564MA

LEVER, Spring Shift

$9.99

$

Usually ships in 2-12 days

0

0560

Murray 310169MA

CAPSCREW, Hex Washer Head, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0570

Murray 304438MA

GRIP, Lever

$19.99

$

In Stock, only 1 left!

0
