C950-52946-1 (1695739) - Craftsman 24" Snow Thrower, Canada (2010) Auger Housing Parts Diagram

24" Snow Thrower, Canada

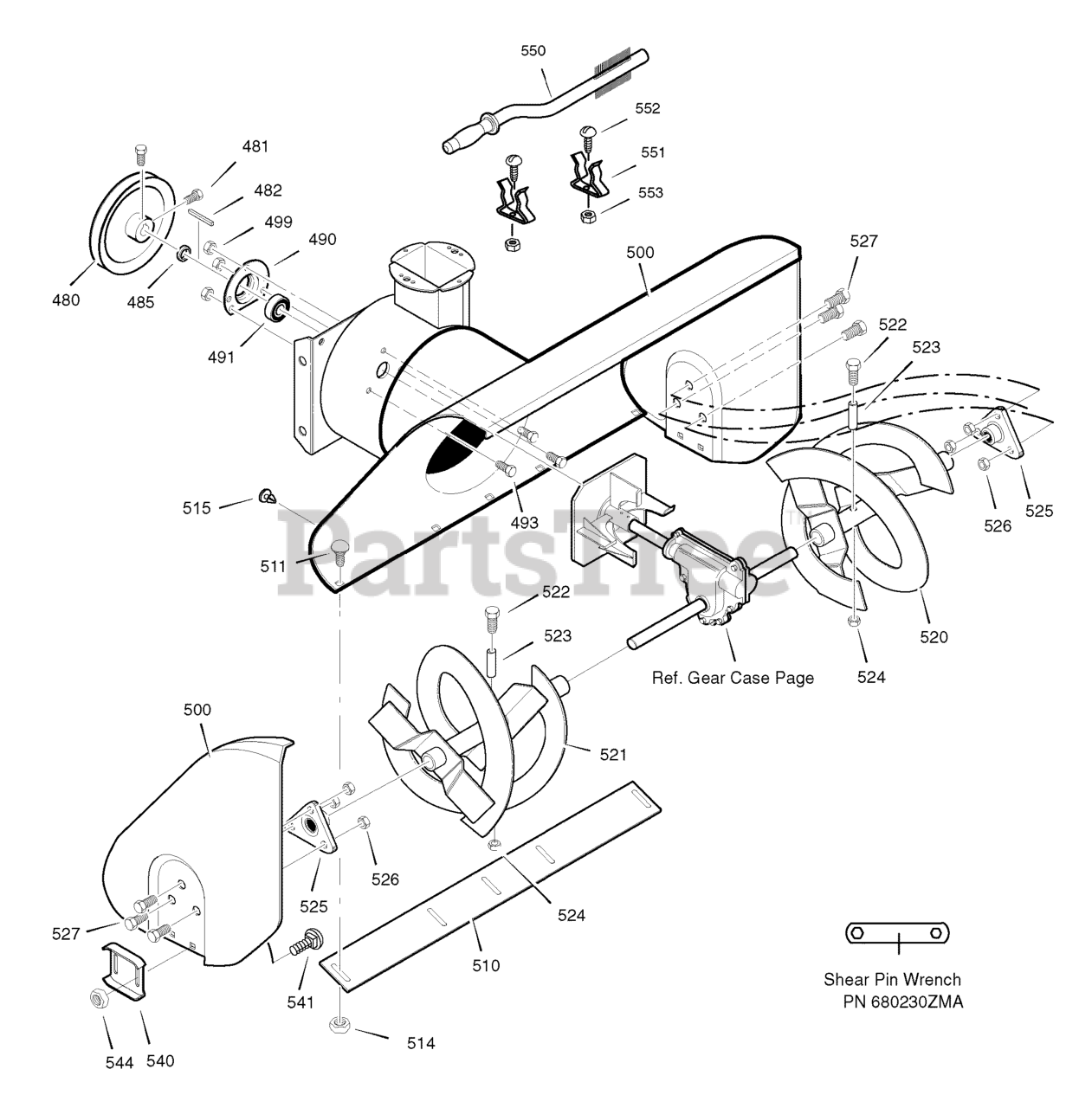

Auger Housing Parts Diagram

  • Title
480

Murray 762146MA

PULLEY, 4L 6.12 X .67

$70.99

$

Usually ships in 2-12 days

0

481

Murray 577400MA

SCREW, 5/16-18 x 0.63

$4.99

$

Usually ships in 2-12 days

0

482

Murray 2001022MA

KEY, SQUARE 3/16 X 3/4

$4.49

$

In Stock, Qty 12

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 10

0

490

Murray 582957YZMA

RETAINER, BALL BEARING
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1705897SM

BEARING, BALL

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X45MA

BOLT, HEX 5/16-18 X .62
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

499

Murray 710026MA

NUT, 5/16-18 HEXWDFLLK
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

500

Murray 1741105LYP

HOUSING, ASSEMBLY

$376.99

$

Usually ships in 2-12 days

0

510

Murray 1740909AYP

BLADE, SCRAPER 24"
(Superseded to 1740909BMYP)

$40.99

$

In Stock, only 3 left!

0

511

Murray 7091530SM

BOLT, Carriage, 1/4 x 3/4, G5

$3.99

$

In Stock, only 3 left!

0

514

Murray 780285MA

NUT, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

515

Murray 309235MA

FASTENER, RATCHET

$3.99

$

Usually ships in 2-12 days

0

520

Murray 1738934AYP

AUGER, ASSEMBLY, LH

$176.99

$

Usually ships in 2-12 days

0

521

Murray 1738933AYP

AUGER, ASSEMBLY, RH

$108.99

$

Usually ships in 2-12 days

0

522

Murray 9524MA

SCREW, 1/4-20 X 1.75
(Superseded to 703057)

$5.99

$

In Stock, Qty 5

0

523

Murray 3943MA

SPACER, SLEEVE
(Superseded to 703058)

$7.49

$

In Stock, only 3 left!

0

524

Murray 73826MA

NUT, 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

525

Murray 9517MA

BEARING, FLANGE

$5.99

$

In Stock, Qty 20+

0

526

Murray 711862MA

NUT, 5/16-18

$4.99

$

In Stock, Qty 5

0

527

Murray 9357MA

SCREW, 5/16-18 x 0.75
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

540

Murray 1740718AYP

SKID, HEIGHT ADJUST

$8.99

$

In Stock, only 4 left!

0

541

Murray 7090731SM

BOLT, 5/16-18 X .50
(Superseded to 703798)

$4.49

$

In Stock, Qty 8

0

544

Murray 710026MA

NUT, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

550

Murray 1736094YP

BRUSH, CLEANOUT

$34.99

$

In Stock, Qty 7

0

551

Murray 1736620YP

CLAMP, SPRING

$6.49

$

In Stock, only 3 left!

0

552

Murray 1960569SM

SCREW
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

553

Murray 7091290SM

NUT
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

--

Murray 1501216MA

KIT, SHEAR BOLT

$4.99

$

In Stock, Qty 20+

0

--

$10.99

$

Usually ships in 2-12 days

0
