C950-52913-1 (1695741) - Craftsman 27" Snow Thrower, Canada (2010) Wheels and Tires Group Parts Diagram

27" Snow Thrower, Canada

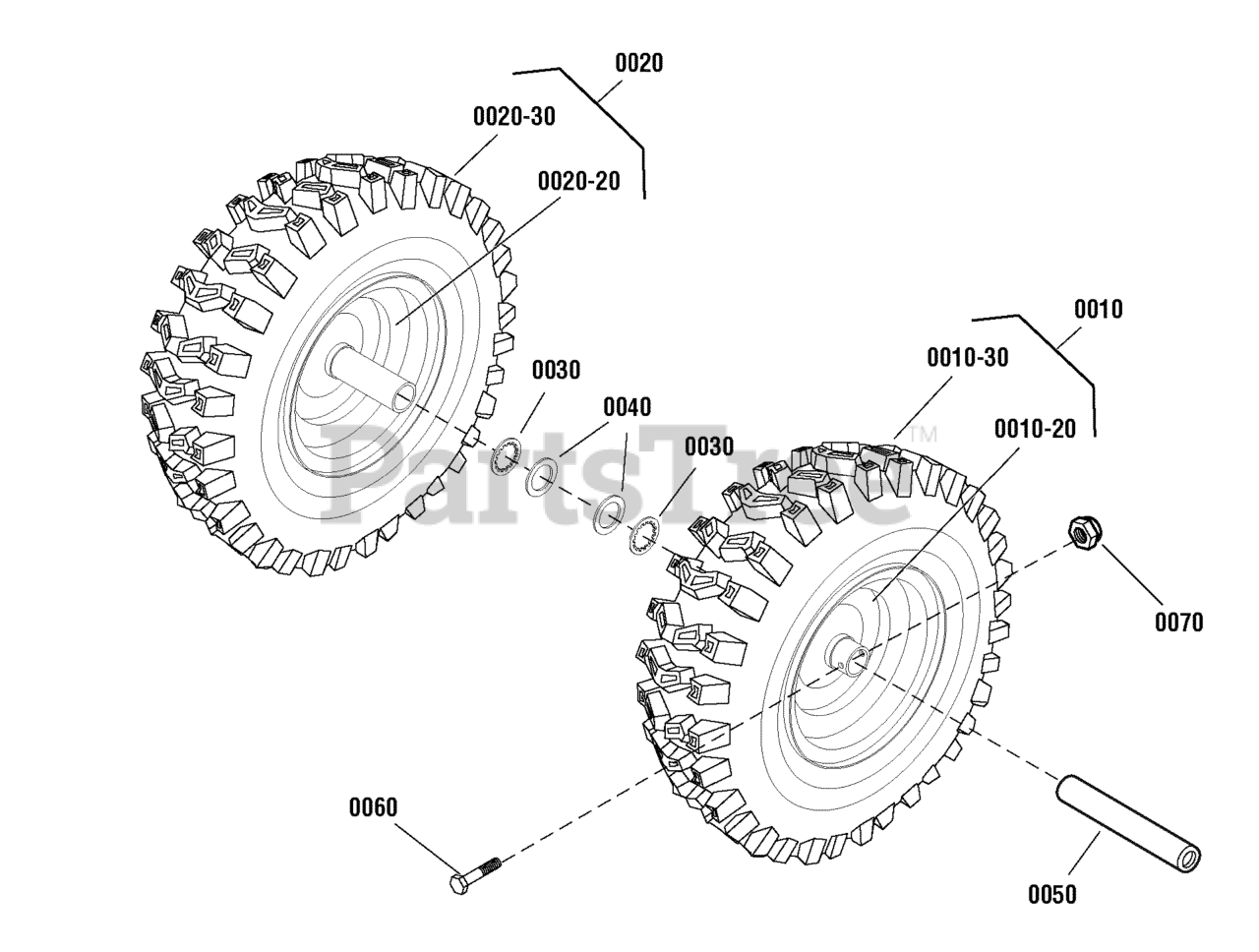

Wheels and Tires Group Parts Diagram

  • Title
0010

Murray 1736781YP

TIRE & RIM, LEFT

Note: (Includes Ref. Nos. 0010-20 & 0010-30)

$159.99

$

Usually ships in 2-12 days

0

0010-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0010-30

Murray 1737156YP

TIRE, 16 x 6.50-8 2PLY K467

$75.99

$

Usually ships in 2-12 days

0

0020

Murray 1736780YP

TIRE & RIM, RIGHT

Note: (Includes Ref. Nos. 0020-20 & 0020-30)

$136.99

$

Usually ships in 2-12 days

0

0020-20

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0020-30

Murray 1737156YP

TIRE, 16 x 6.50-8 2PLY K467

$75.99

$

Usually ships in 2-12 days

0

0030

Murray 1657528SM

RING, Retaining

$4.49

$

In Stock, Qty 20+

0

0040

$4.99

$

In Stock, Qty 20+

0

0050

Murray 1501138MA

BUSHING, Wheel, 5-1/2, 16 Tire

$

$

Not available

0060

Murray 577015MA

BOLT, Hex, 1/4-20 x 1-3/4

Note: (Grade 5)

$4.99

$

In Stock, only 3 left!

0

0070

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
