C950-52913-1 (1695741) - Craftsman 27" Snow Thrower, Canada (2010) Engine & Frame Group Parts Diagram

27" Snow Thrower, Canada

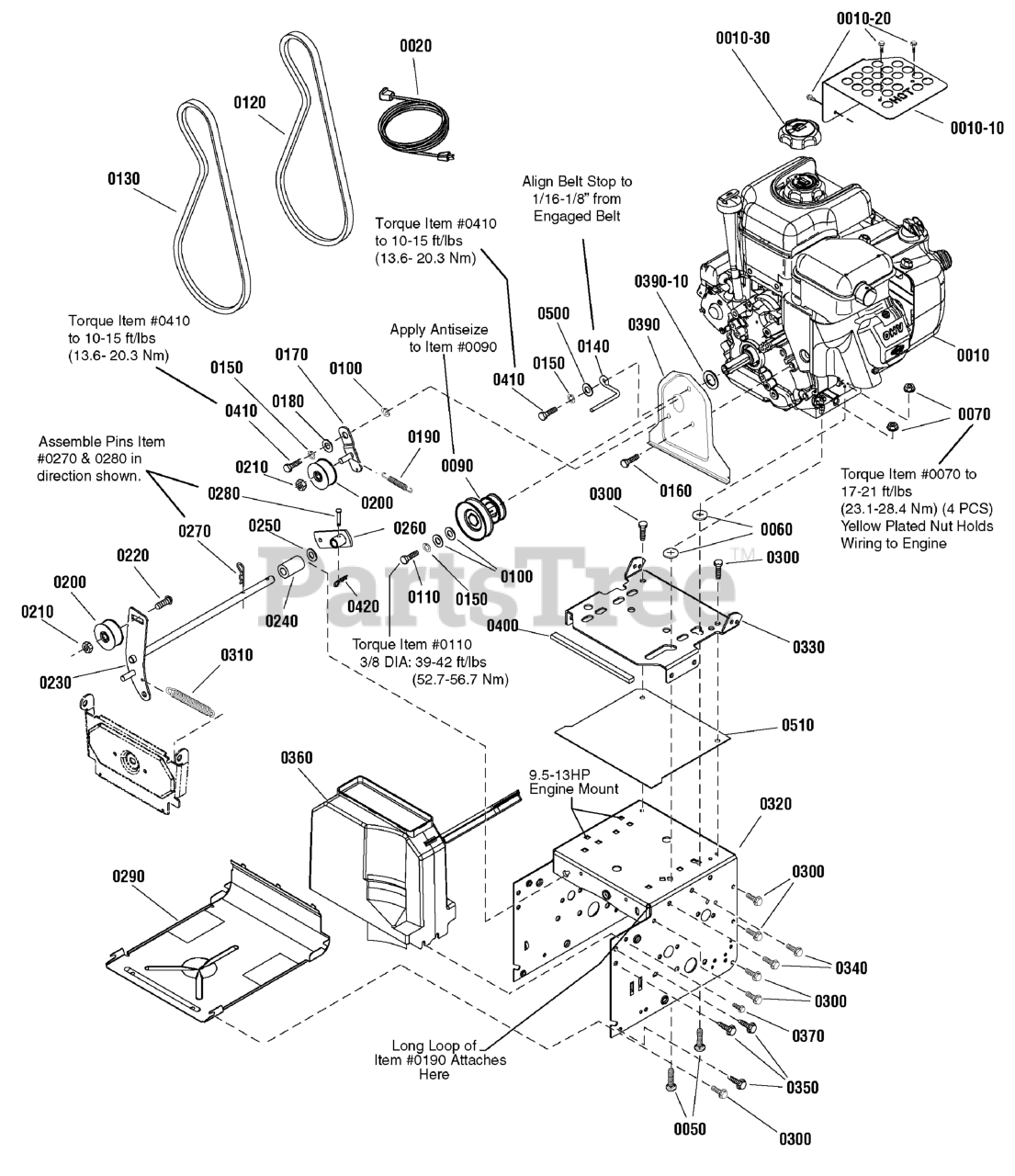

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 20M114-0143-E1

* ENGINE, 14.5 TP Briggs & Stratton

Note: (Engine Model: 20M114-0143-E1)

$

$

Currently unavailable

0010-10

Murray 797095

GUARD, Muffler

Note: (Includes Ref. No. 0010-20)

$45.99

$

Usually ships in 2-12 days

0

0010-20

Murray 699234

SCREW, Muffler Guard

$3.99

$

In Stock, only 2 left!

0

0010-30

Murray 698109

CAP, Fuel Tank

$

$

Not available

0020

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 2 left!

0

0050

Murray 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

0060

Murray 028X76MA

PUSHNUT, 1/4

$4.49

$

Usually ships in 2-12 days

0

0070

Murray 1739305YP

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0090

Murray 1501109MA

PULLEY, Engine

$41.99

$

In Stock, only 2 left!

0

0100

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

0110

Murray 1960428SM

CAPSCREW, Hex Head, 3/8-24 x 1-1/4, G8
(Superseded to 703165)

$3.99

$

Usually ships in 2-12 days

0

0120

Murray 1733324SM

V-BELT, Traction Drive, 3L 33.13

$19.99

$

In Stock, Qty 20+

0

0130

Murray 585416MA

BELT, Auger Drive, V4L 38.10

$22.99

$

In Stock, Qty 20+

0

0140

Murray 1739070YP

BELT GUIDE

$7.99

$

In Stock, Qty 5

0

0150

Murray 1917356SM

LOCKWASHER, Spring, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

0160

Murray 1921515SM

CAPSCREW, Hex Head, 5/16-24 x 3/4, G5

$3.99

$

Usually ships in 2-12 days

0

0170

Murray 1501112YZMA

BRACKET, Idler
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

0180

Murray 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, only 2 left!

0

0190

Murray 53704MA

SPRING, Extension, Idler

$8.49

$

In Stock, only 2 left!

0

0200

Murray 1502120MA

IDLER, Plastic Ball Bearing

$21.99

$

In Stock, Qty 6

0

0210

Murray 1960251SM

NUT, Hex Centerlock Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

0220

Murray 585781MA

BOLT, Carriage, Short Neck, 3/8-16 x 1-1/4, G5
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 1502051YZMA

IDLER, Auger

$79.99

$

Usually ships in 2-12 days

0

0240

Murray 1501200MA

SPACER, 1/2 ID x 1 OD x 1-3/4"

$5.99

$

Usually ships in 2-12 days

0

0250

Murray 1960027SM

WASHER, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0260

Murray 1733451SM

ARM, Control

$20.99

$

In Stock, only 3 left!

0

0270

Murray 0031X6MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

0280

Murray 1736381YP

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 5

0

0290

Murray 1740906ASM

PANEL, Bottom
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

0300

Murray 1927429SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

0310

Murray 165X159MA

SPRING, Extension, Auger

$6.99

$

In Stock, Qty 9

0

0320

Murray 1740641BNYP

FRAME

$94.99

$

Usually ships in 2-12 days

0

0330

Murray 1733583BNYP

PLATE, Engine Mount

$43.99

$

Usually ships in 2-12 days

0

0340

Murray 1924856SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0350

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1733923SM

BELT COVER ASSEMBLY

$75.99

$

Usually ships in 2-12 days

0

0370

Murray 26X306MA

SCREW, Hex Washer Head, Tapping, SEMS, 1/4 x 3/4

$4.99

$

Usually ships in 2-12 days

0

0390

Murray 1750241YP

PLATE, Seal

Note: (Incl. Ref. 0390-10)

$13.99

$

Usually ships in 2-12 days

0

0390-10

Murray 1750185YP

SEAL, Shaft

Note: (Included with Ref. No. 0390)

$6.99

$

Usually ships in 2-12 days

0

0400

Murray 1750172YP

STRIP, Seal

$7.49

$

Usually ships in 2-12 days

0

0410

Murray 910828MA

CAPSCREW, Hex, 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

0420

Murray 7023590SM

COTTER PIN, Self Locking, 1/4

$3.99

$

In Stock, Qty 20+

0

0470

Murray 1916965SM

LOCKWASHER, Spring, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

0480

Murray 1922755SM

WASHER, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

0500

Murray 7091528SM

WASHER, Flat, 3/8

$3.99

$

Usually ships in 2-12 days

0

0510

Murray 1750134YP

SEAL, Engine Plate

$17.99

$

Usually ships in 2-12 days

0
