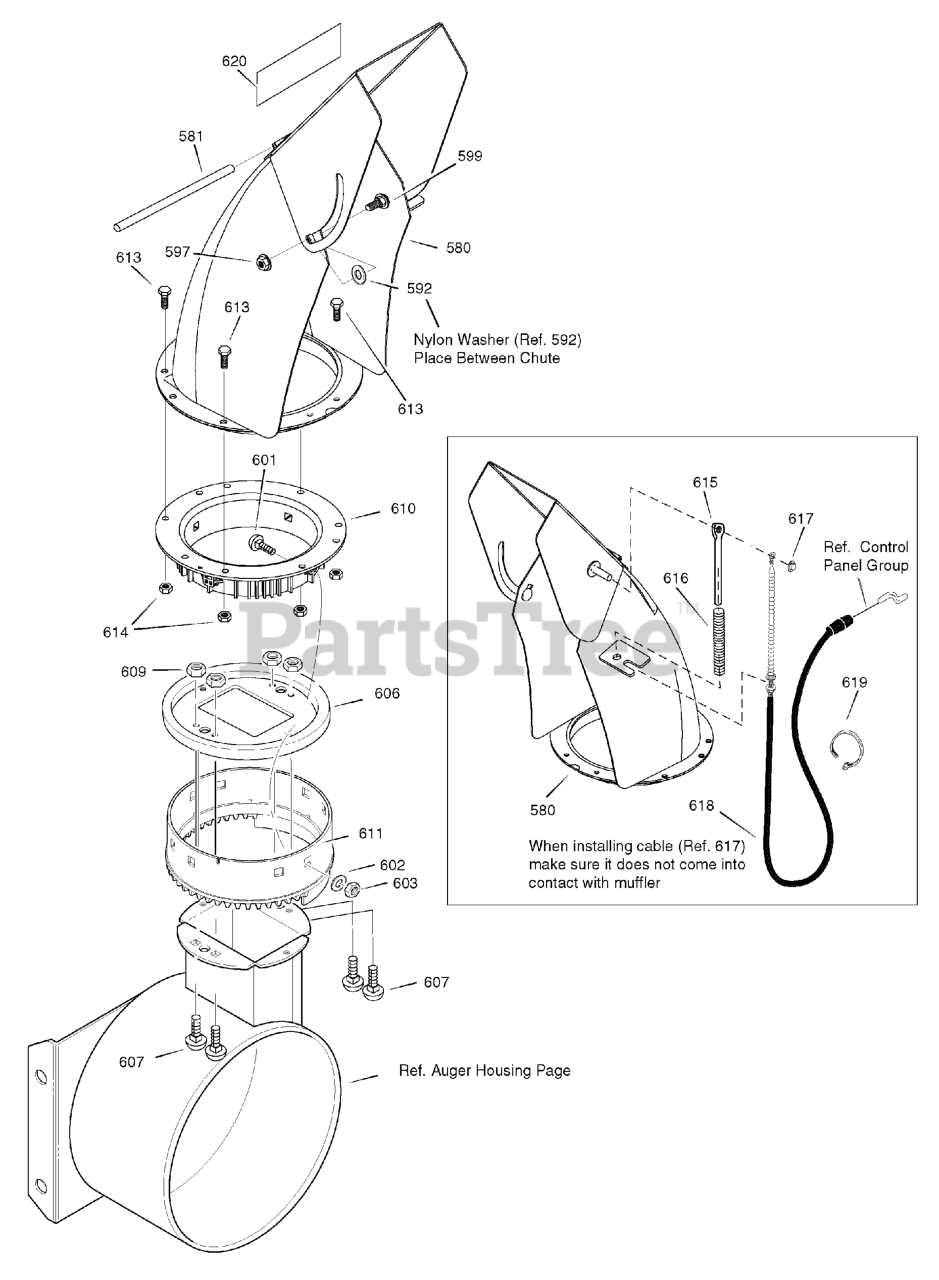

C950-52913-1 (1695741) - Craftsman 27" Snow Thrower, Canada (2010) Discharge Chute Parts Diagram

27" Snow Thrower, Canada

Discharge Chute Parts Diagram

  • Title

580

Murray 1736562AYP

CHUTE ASSEMBLY

$131.99

$

Usually ships in 2-12 days

0

581

Murray 1734657YP

PIN, HINGE

$4.99

$

Usually ships in 2-12 days

0

592

Murray 2860210SM

WASHER, Nylon

$4.49

$

In Stock, only 3 left!

0

597

Murray 1739305SM

NUT, Hex-Flange, 5/16-18

$

$

Currently unavailable

599

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 8

0

601

Murray 2X100MA

BOLT, 5/16-18 X 1.00
(Superseded to 704217)

$

$

Not available

602

Murray 71071MA

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

603

Murray 71038MA

NUT, Hex, Nylock, 5/16-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

606

Murray 1501932YZMA

CHUTE COLLAR

$28.99

$

In Stock, only 1 left!

0

607

Murray 02X101MA

SCREW, 1/4-20 X 0.75
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

609

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

610

Murray 1741917YP

RING, Retainer, Inner

$22.99

$

Usually ships in 2-12 days

0

611

Murray 1501476MA

RING, Retainer, Outer

$26.99

$

Usually ships in 2-12 days

0

613

Murray 1935450SM

CAPSCREW, Hex-Flange, 1/4-20 x .75

$4.49

$

Usually ships in 2-12 days

0

614

Murray 703463

NUT, Nylock Flanged, 1/4-20

$4.49

$

In Stock, Qty 20+

0

615

Murray 1734708ASM

ROD, Spring

$13.99

$

Usually ships in 2-12 days

0

616

Murray 1734647SM

SPRING, Compression
(Superseded to 703135)

$3.99

$

Usually ships in 2-12 days

0

617

Murray 1932718SM

NUT, Push-Cap, 5/16
(Superseded to 704028)

$5.49

$

In Stock, only 4 left!

0

618

Murray 1501310MA

LEVER & CABLE, CHUTE DEFLECTOR

$117.99

$

In Stock, only 1 left!

0

619

Murray 071372MA

TIE, Cable

$4.49

$

In Stock, only 1 left!

0

620

Murray 1733601SM

DECAL, Hinge

$12.99

$

In Stock, only 1 left!

0
