C950-52913-0 (1695741) - Craftsman 27" Snow Thrower, Canada (2009) Auger Housing Assembly Parts Diagram

27" Snow Thrower, Canada

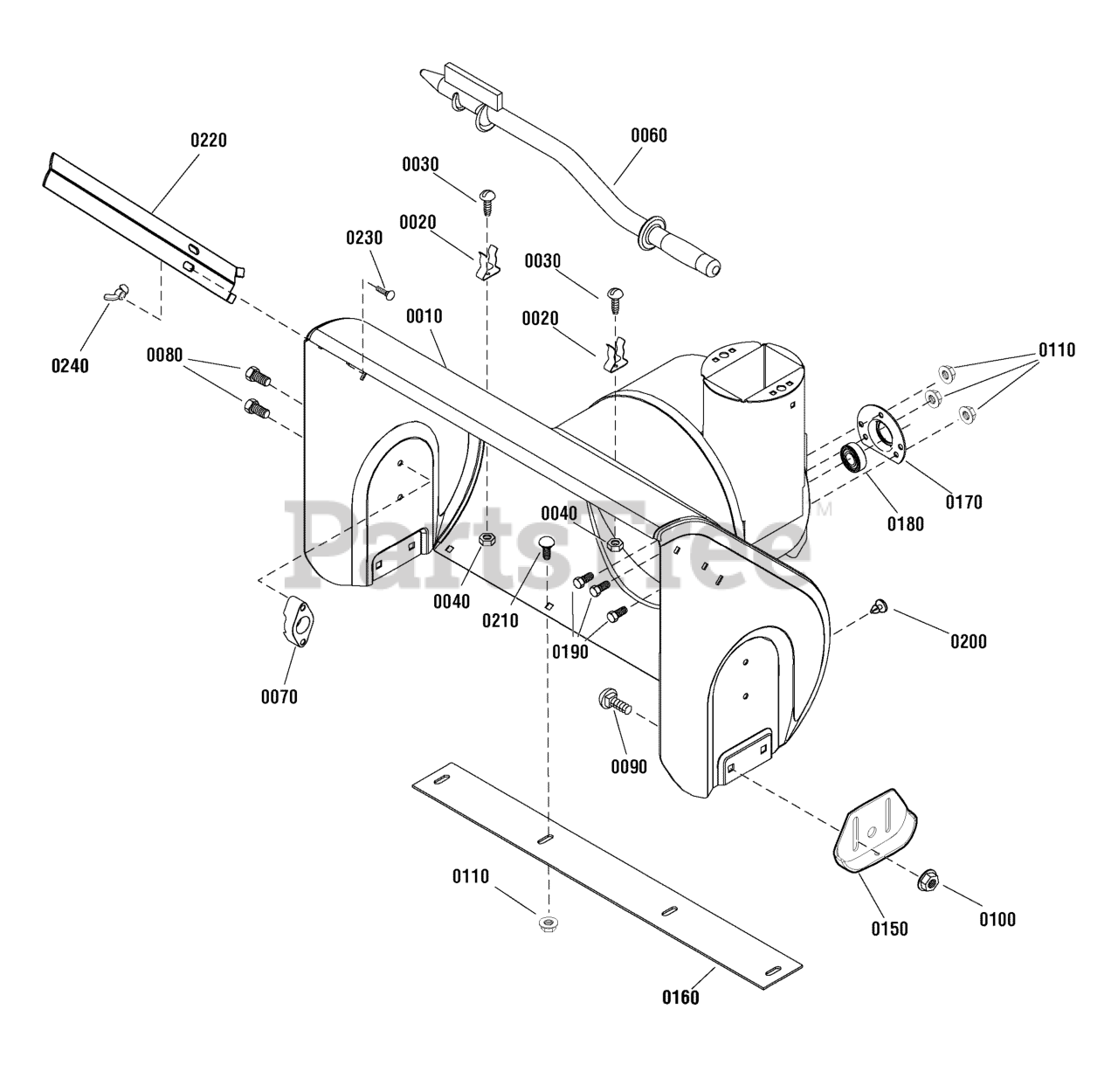

Auger Housing Assembly Parts Diagram

  • Title
0010

Murray 1737905BNYP

HOUSING, ASSEMBLY
(Superseded to 1687528YP)

$473.99

$

Usually ships in 2-12 days

0

0020

Murray 1736620YP

CLAMP, SPRING

$6.49

$

In Stock, only 2 left!

0

0030

Murray 1960569SM

SCREW, Truss Head Torx, #10-24 x 3/8
(Superseded to 706144)

$4.49

$

Usually ships in 2-12 days

0

0040

Murray 15X146MA

NUT, Nylock, 10 x 24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0060

Murray 1736094YP

BRUSH, CLEANOUT

$34.99

$

In Stock, only 4 left!

0

0070

Murray 53757MA

BEARING, FLANGE

$9.99

$

In Stock, only 2 left!

0

0080

Murray 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 7091547YP

BOLT, Shoulder, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

0100

Murray 7091619SM

NUT, Hex Flange, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0110

Murray 710026MA

NUT, Hex Flange Serrated Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1737986AYP

SKID, Height Adjust
(Superseded to 1740912BMYP)

$13.99

$

In Stock, Qty 10

0

0160

Murray 1740949AYP

BLADE, SCRAPER
(Superseded to 1740949BMYP)

$35.99

$

In Stock, only 1 left!

0

0170

Murray 582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

0180

Murray 1705897SM

BEARING, Ball, 11/16 x 1-9/16 x 15/32

$8.49

$

In Stock, Qty 20+

0

0190

Murray 001X45MA

BOLT, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

0200

Murray 760040MA

PLUG, PANEL

$4.49

$

Usually ships in 2-12 days

0

0210

Murray 7090799SM

BOLT, Carriage, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

0220

Murray 1733102ASM

DRIFT CUTTER

$31.99

$

In Stock, only 4 left!

0

0230

Murray 340720MA

BOLT, Shoulder, 3/8-16 x 3/4
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

0240

Murray 711604MA

NUT, Wing, Serrated, 5/16-18

$3.49

$

In Stock, only 3 left!

0
