C950-52903-0 (1695717) - Craftsman 21" Snow Thrower, Canada (2009) Wiring Diagram Parts Diagram

21" Snow Thrower, Canada

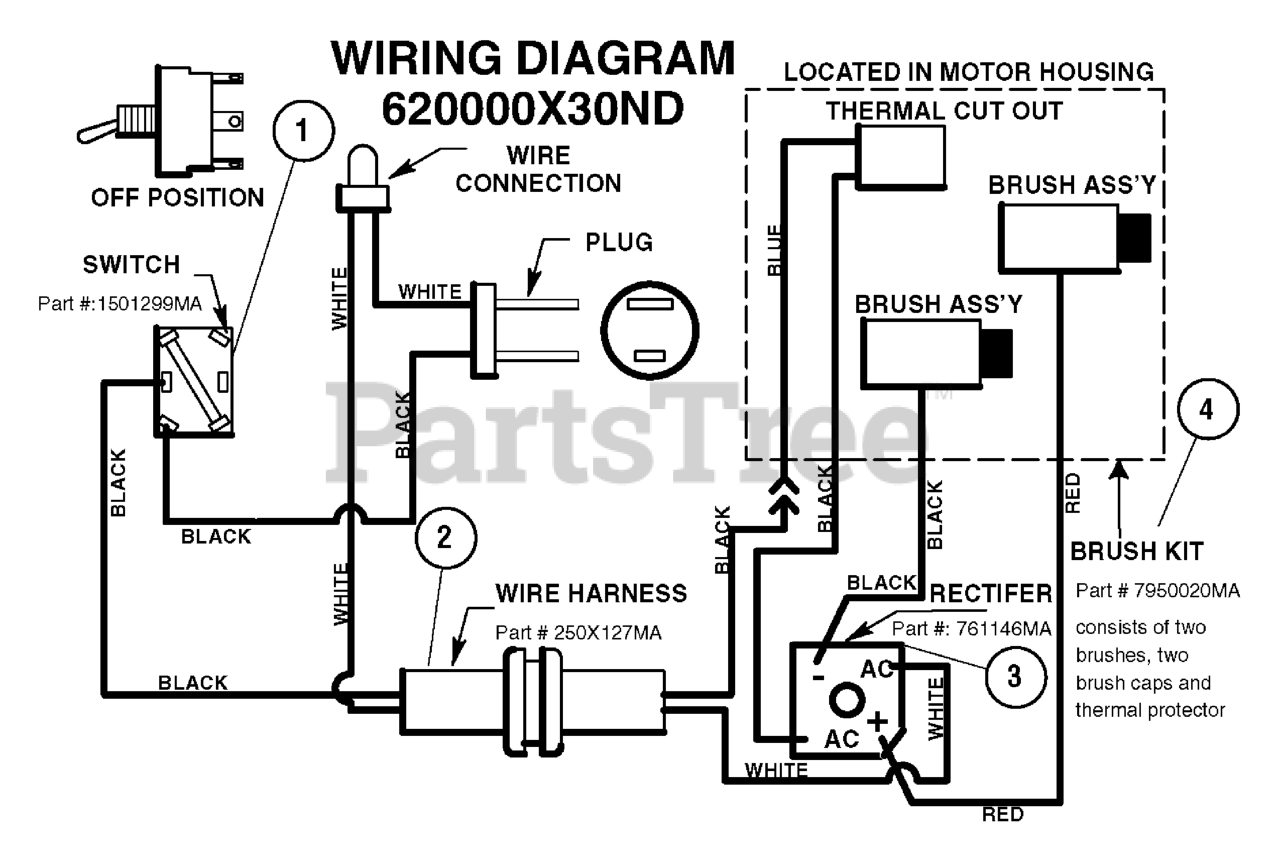

Wiring Diagram Parts Diagram

  • Title

1

Murray 342757MA

ASSEMBLY, SWITCH BOX

$

$

Not available

2

Murray 250X127MA

WIRE HARNESS
(Superseded to 342757MA)

$

$

Not available

3

Murray 761146MA

RECTIFER

$

$

Currently unavailable

4

Murray 7950020MA

BRUSH KIT

$

$

Not available
