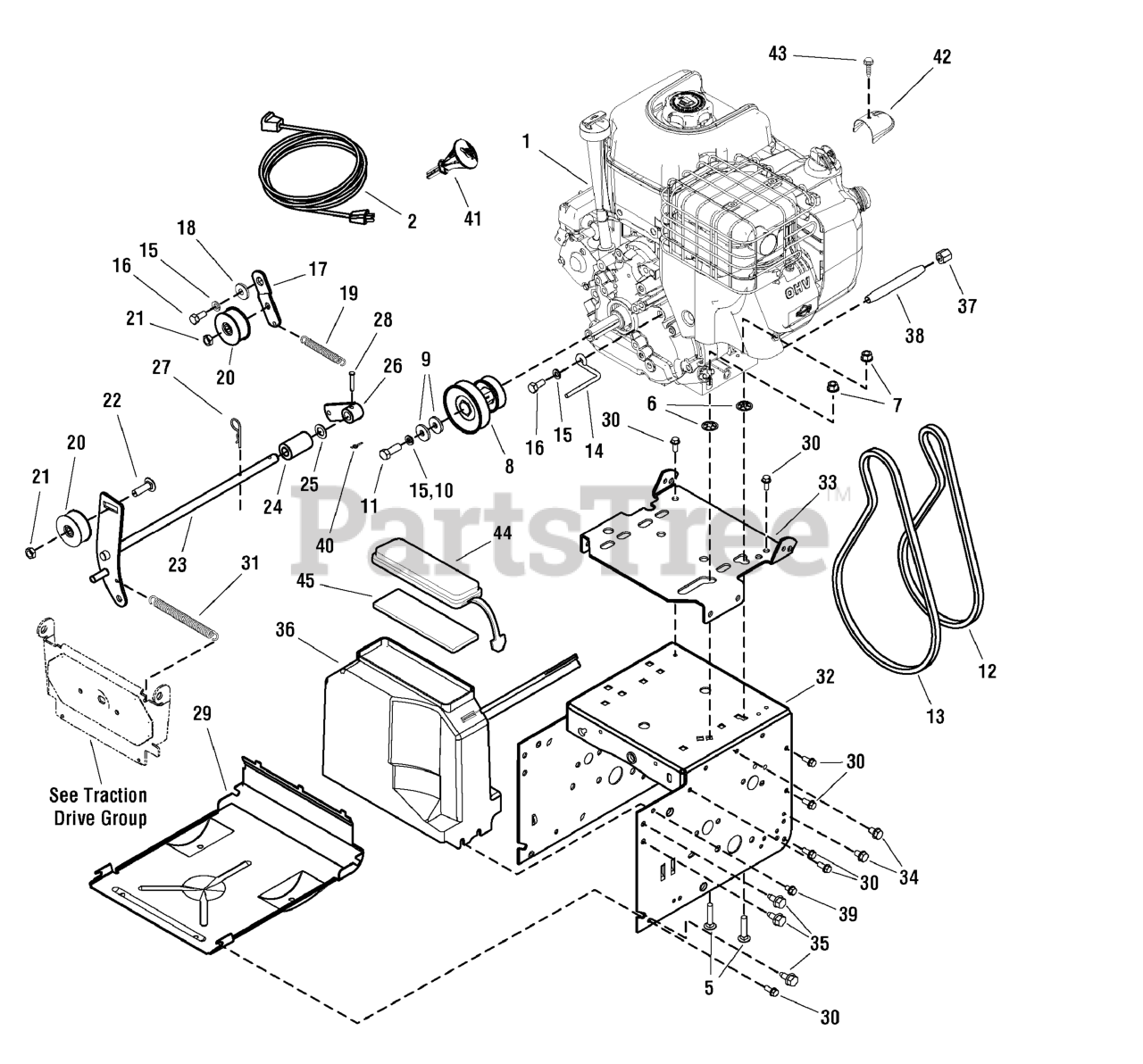

C950-52871-0 (1695564) - Craftsman 31" Snow Thrower, Canada (2008) Engine & Frame Parts Diagram

31" Snow Thrower, Canada

Engine & Frame Parts Diagram

  • Title

1

Murray 21M4140120E1

ENGINE

$

$

Currently unavailable

2

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 2 left!

0

5

Murray 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

6

Murray 028X76MA

NUT, Speed, 1/4

$4.49

$

Usually ships in 2-12 days

0

7

Murray 2831277SM

NUT, 5/16-18

$3.49

$

Usually ships in 2-12 days

0

8

Murray 1501109MA

PULLEY, Engine

$41.99

$

In Stock, only 2 left!

0

9

Murray 1922755SM

WASHER, Flat, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

10

Murray 1916965SM

WASHER, Locking, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

11

Murray 1960428SM

CAPSCREW, Hex-Head, 3/8-24 x 1-1/4
(Superseded to 703165)

$3.99

$

Usually ships in 2-12 days

0

12

Murray 1733324SM

V-BELT, Drive, 3L

$19.99

$

In Stock, Qty 20+

0

13

Murray 1736421YP

V-Belt, Auger, 4L

$30.99

$

In Stock, Qty 20+

0

14

Murray 1733014SM

GUIDE, Belt
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

15

Murray 1917356SM

WASHER, Locking, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

16

Murray 1921515SM

BOLT, Hex-Head, 5/16-24 x 3/4

$3.99

$

Usually ships in 2-12 days

0

17

Murray 1501112YZMA

ASSEMBLY, Idler Bracket
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

18

Murray 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, only 2 left!

0

19

Murray 53704MA

SPRING, Extension

$8.49

$

In Stock, only 2 left!

0

20

Murray 1502120MA

IDLER, Plastic, Ball Bearing

$21.99

$

In Stock, Qty 6

0

21

Murray 1960251SM

NUT, Hex-Jam, 3/8-16
(Superseded to 703230)

$4.99

$

In Stock, Qty 9

0

22

Murray 585781MA

BOLT, Carriage, 3/8-16 x 1-1/4
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

23

Murray 1501628YZMA

IDLER, Auger Assembly

$55.99

$

Usually ships in 2-12 days

0

24

Murray 1501200MA

SPACER, Auger Idler

$5.99

$

Usually ships in 2-12 days

0

25

Murray 1960027SM

WASHER, Flat, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

26

Murray 1733451SM

ASSEMBLY, Spring Attachment

$20.99

$

In Stock, only 3 left!

0

27

Murray 711682MA

PIN, Hair
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

28

Murray 1736381YP

PIN, Clevis
(Superseded to 703313)

$4.99

$

In Stock, Qty 5

0

29

Murray 1740906ASM

PANEL, Bottom
(Superseded to 1753969BMYP)

$75.99

$

Usually ships in 2-12 days

0

30

Murray 1927429SM

SCREW, 1/4-20 x 5/8
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

31

Murray 165X159MA

SPRING, Extension

$6.99

$

In Stock, Qty 9

0

32

Murray 1740641KMA

FRAME, Steerable

$91.99

$

Usually ships in 2-12 days

0

33

Murray 1733583KYP

ENGINE MOUNT

$43.99

$

Usually ships in 2-12 days

0

34

Murray 1924856SM

SCREW, 3/8-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

35

Murray 1664847SM

SCREW, 3/8-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

36

Murray 1741069MA

COVER, Belt

$

$

Not available

37

Murray 695757

CAP, Pipe

$6.99

$

Usually ships in 2-12 days

0

38

Murray 696683

PIPE, Oil Drain

$

$

Not available

39

Murray 26X306MA

SCREW, Hex-Washer, 1/4 x 3/4, Self-Tapping

$4.99

$

Usually ships in 2-12 days

0

40

Murray 7023590SM

PIN, Cotter, 1/4, Self-Locking

$3.99

$

In Stock, Qty 20+

0

41

Murray 794696

KEY, Ignition

$7.49

$

In Stock, Qty 15

0

42

Murray 794213

DEFLECTOR, Muffler

$15.99

$

Usually ships in 2-12 days

0

43

Murray 699479

SCREW

$3.99

$

Usually ships in 2-12 days

0

44

Murray 760539MA

LID, Toolbox

$10.99

$

Usually ships in 2-12 days

0

45

Murray 761187MA

PAD, Faom

$6.49

$

Usually ships in 2-12 days
