C950-52844-1 (1695771) - Craftsman 22" Snow Thrower, Canada (2009) Frame Parts Diagram

22" Snow Thrower, Canada

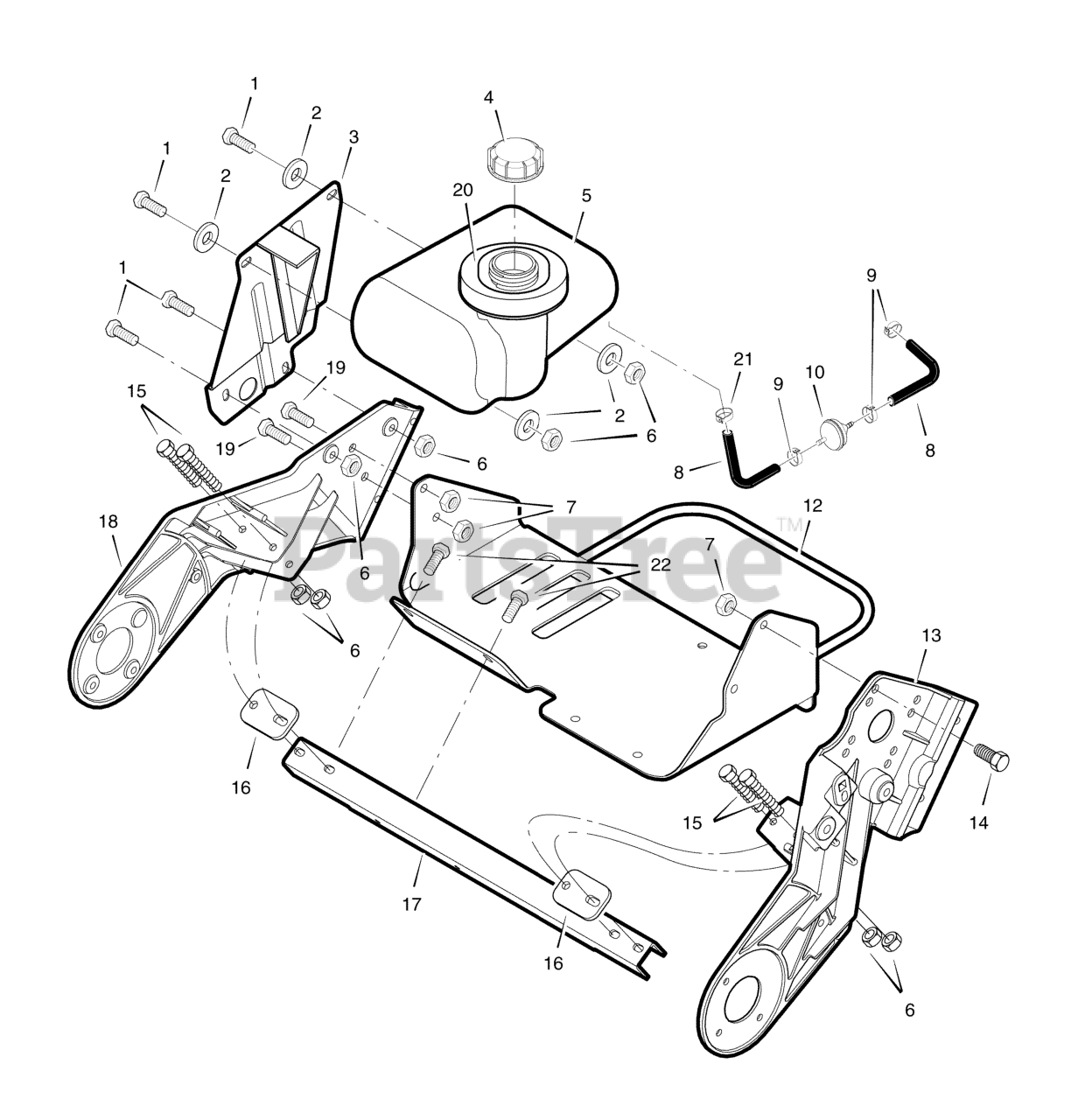

Frame Parts Diagram

  • Title

1

Murray 302628MA

Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 7

0

2

Murray 71067MA

Washer

$4.49

$

In Stock, only 1 left!

0

3

Murray 1741771HYP

Bracket, Fuel Tank

$21.99

$

Usually ships in 2-12 days

0

4

Murray 1715917SM

Cap, Fuel Tank
(Superseded to 5101651SM)

$30.99

$

In Stock, Qty 20+

0

5

Murray 1716634SM

Tank, Fuel
(Superseded to 1738435YP)

$237.99

$

Usually ships in 2-12 days

0

6

Murray 73826MA

Nut, Hex 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

7

Murray 71391MA

Nut, Hex 5/16-18

$4.49

$

Usually ships in 2-12 days

0

8

Murray 7200111YP

HOSE, Fuel Line

Note: (Cut to length)

$8.99

$

In Stock, only 1 left!

0

9

Murray 323387MA

Clamp, Fuel Line

$4.49

$

Usually ships in 2-12 days

0

10

Murray 298090S

Filter, Fuel Line

$

$

Not available

12

Murray 1741989HYP

Cradle Assembly, Engine

$176.99

$

Usually ships in 2-12 days

0

13

Murray 1501872E701MA

Frame, LH

$

$

Not available

14

Murray 48901MA

Screw, 5/16-18 x 0.63

$3.99

$

Usually ships in 2-12 days

0

15

Murray 180044MA

Screw, 1/4-20 x 2.00

$3.99

$

Usually ships in 2-12 days

0

16

Murray 335351MA

Plate, Mounting Support

$3.99

$

Usually ships in 2-12 days

0

17

Murray 1501851MA

Support, Frame

$34.99

$

Usually ships in 2-12 days

0

18

Murray 1741988AYP

Frame, RH

$100.99

$

Usually ships in 2-12 days

0

19

Murray 180077MA

Screw, 5/16-18 x 0.75
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

20

Murray 1740032MA

Ring, Foam

$12.99

$

In Stock, only 1 left!

0

21

Murray 47345MA

Clamp, Fuel Line -Screw Type

$9.49

$

Usually ships in 2-12 days

0

22

Murray 310169MA

Screw, 1/4-20 x .625
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0
