C950-52844-1 (1695771) - Craftsman 22" Snow Thrower, Canada (2009) Engine Drive System Parts Diagram

22" Snow Thrower, Canada

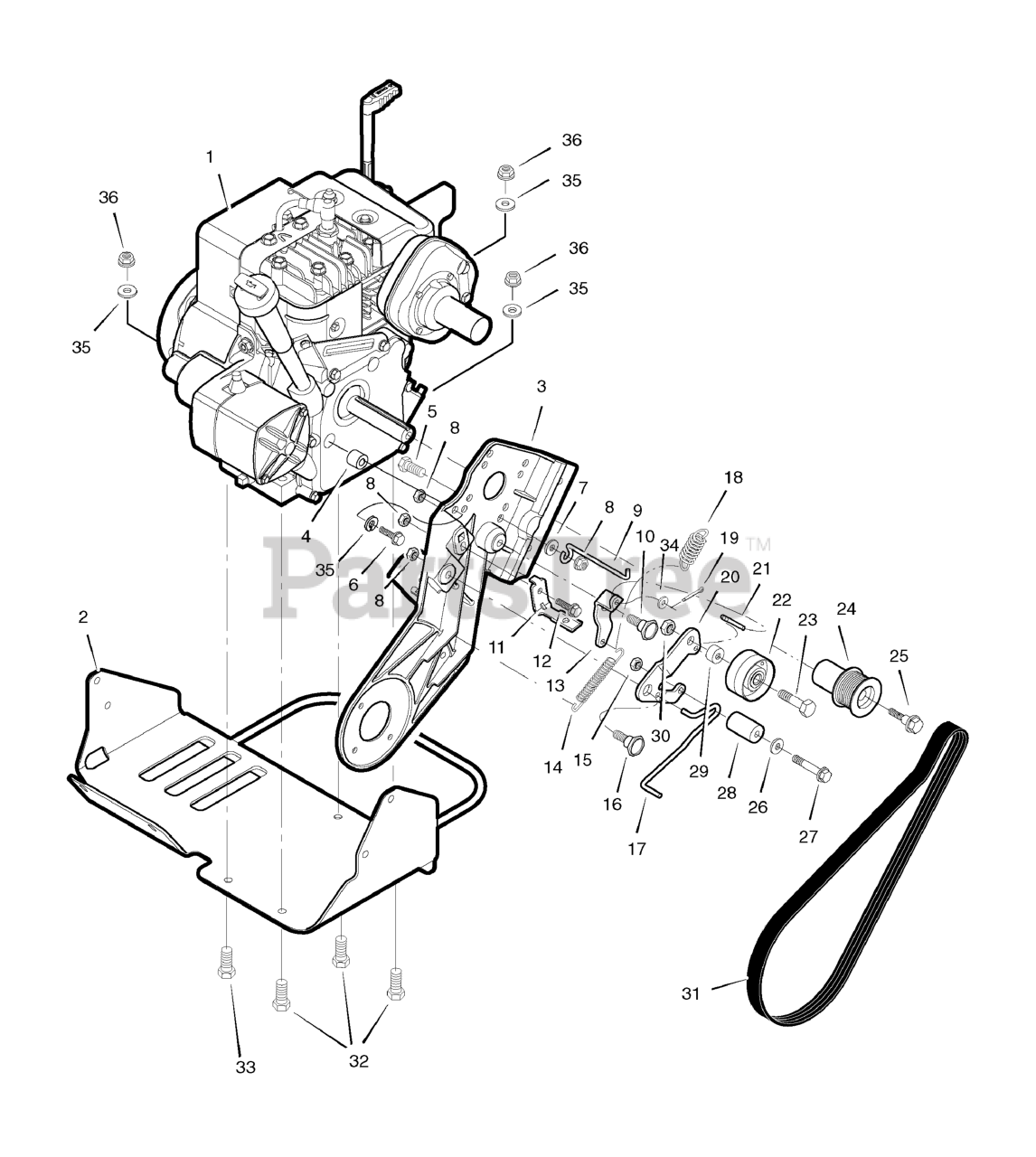

Engine Drive System Parts Diagram

  • Title
1

Murray 09A413-0202-E1

Engine, 5HP 4CY B&S

$

$

Not available

2

Murray 1741989HYP

Cradle Assembly, Engine

$176.99

$

Usually ships in 2-12 days

0

3

$

$

Not available

4

Murray 1502027MA

Antivibration Mount, Engine

$4.49

$

Usually ships in 2-12 days

0

5

Murray 1X216MA

Bolt, Hex 5/16-18 x 0.865

$3.99

$

Usually ships in 2-12 days

0

6

Murray 6X118MA

Bolt, Hex 5/16-24 x 1.1125

$3.99

$

Usually ships in 2-12 days

0

7

Murray 71071MA

Washer, Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

8

Murray 71391MA

Locknut, Hex Center 5/16-18

$4.49

$

Usually ships in 2-12 days

0

9

Murray 334079MA

Guide, Belt

$7.99

$

Usually ships in 2-12 days

0

10

$20.99

$

In Stock, only 1 left!

0

11

Murray 333970MA

Pad, Brake

$5.49

$

Usually ships in 2-12 days

0

12

Murray 579052MA

Screw, 1/4-20 x .63

$9.99

$

In Stock, only 1 left!

0

13

Murray 313444MA

Idler, Arm Pivot

$

$

Not available

14

$6.49

$

In Stock, only 1 left!

0

15

Murray 73826MA

Nut Hex 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

16

$20.99

$

In Stock, only 1 left!

0

17

Murray 1501009MA

Wire, Brake

$9.99

$

Usually ships in 2-12 days

0

18

$4.99

$

In Stock, only 1 left!

0

19

Murray 121223MA

Pin, Cotter

$3.49

$

Usually ships in 2-12 days

0

20

Murray 1741727YP

Arm, Idler

$10.99

$

Usually ships in 2-12 days

0

21

Murray 313436MA

Rod, Clutch Linkage

$5.49

$

Usually ships in 2-12 days

0

22

Murray 48924MA

Pulley, Idler

$31.99

$

Usually ships in 2-12 days

0

23

Murray 1741500MA

Screw, 3/8-16 x 1.62

$3.49

$

Usually ships in 2-12 days

0

24

Murray 1501908MA

Pulley, Model 9 Engine

$28.99

$

Usually ships in 2-12 days

0

25

Murray 1501907MA

Bolt, Engine Pulley

$9.99

$

Usually ships in 2-12 days

0

26

Murray 71067MA

Washer, Flat

$4.49

$

In Stock, only 1 left!

0

27

Murray 180044MA

Screw, 1/4-20 x 2.00

$3.99

$

Usually ships in 2-12 days

0

28

Murray 1501010MA

Pinch Roller

$6.49

$

Usually ships in 2-12 days

0

29

Murray 1741499MA

Spacer, Idler

$4.49

$

Usually ships in 2-12 days

0

30

Murray 590MA

Nut, Hex
(Superseded to 703996)

$4.99

$

In Stock, Qty 11

0

31

Murray 37X130MA

Belt, Drive
(Superseded to 333721MA)

$

$

Not available

32

Murray 001X81MA

Bolt, Hex 5/16-18

$3.49

$

In Stock, only 2 left!

0

33

Murray 47792MA

Screw 3/8-16 x 1.00

$3.99

$

Usually ships in 2-12 days

0

34

Murray 414106MA

Washer, Flat

$3.49

$

Usually ships in 2-12 days

0

35

Murray 71060MA

Lockwasher, Split
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

36

Murray 71037MA

Nut, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

--

Murray 1739127

Instruction Book

$

$

Currently unavailable
