C950-52844-1 (1695771) - Craftsman 22" Snow Thrower, Canada (2009) Electric Starter Parts Diagram

22" Snow Thrower, Canada

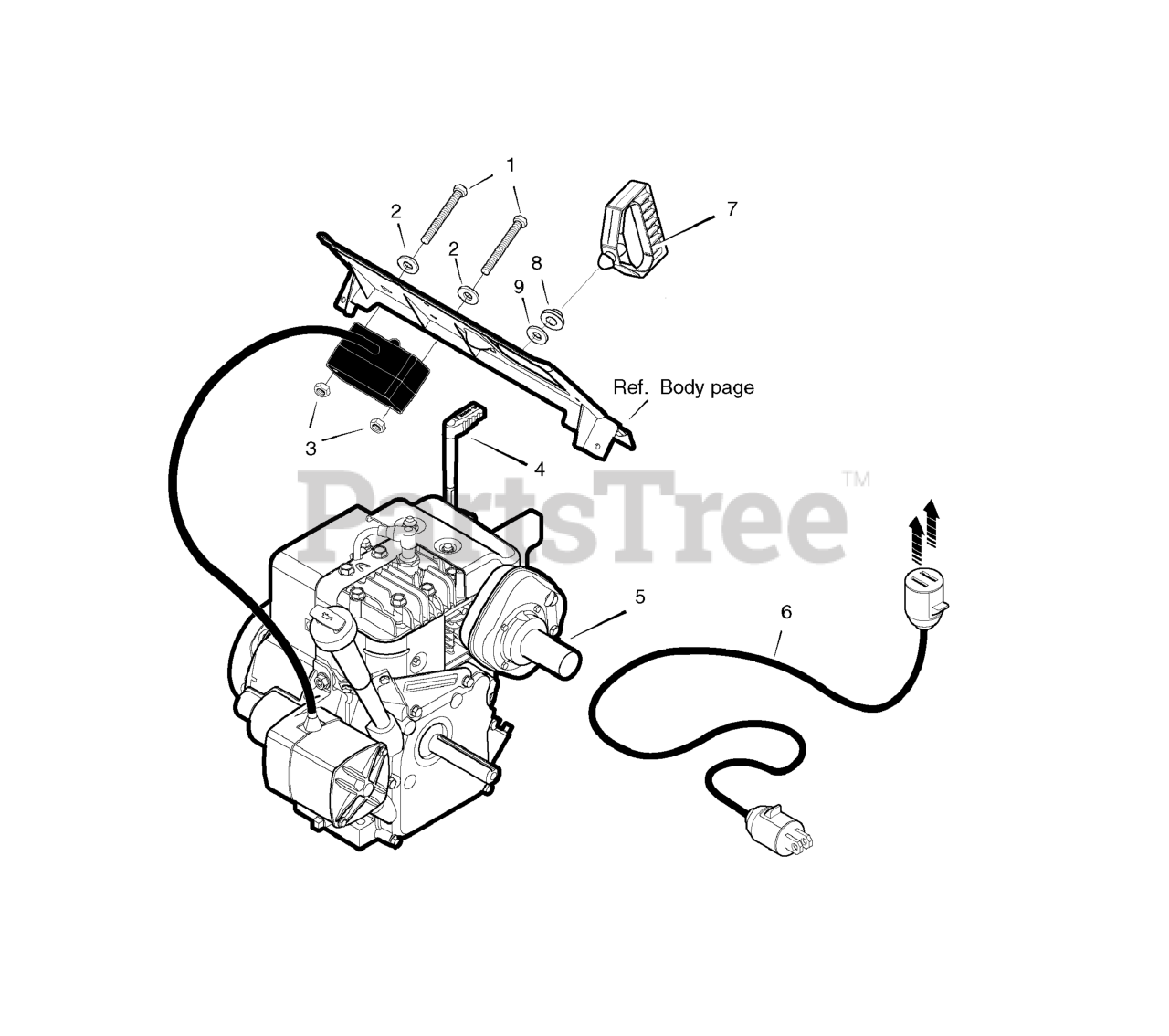

Electric Starter Parts Diagram

  • Title

1

Murray 311633MA

Screw, No. 8-32 x 3.00

$3.99

$

Usually ships in 2-12 days

0

2

Murray 414106MA

Washer

$3.49

$

Usually ships in 2-12 days

0

3

Murray 271163MA

Nut, Keps No. 8

$3.99

$

Usually ships in 2-12 days

0

4

Murray 791534

Lever, Choke
(Superseded to 790553)

$19.99

$

In Stock, only 2 left!

0

5-1

Murray 699565

Muffler

$53.99

$

Usually ships in 2-12 days

0

5-2

Murray 691880

Gasket, Muffler

$5.49

$

In Stock, Qty 5

0

5-3

Murray 699554

Bolt, Muffler

$3.99

$

Usually ships in 2-12 days

0

5-4

Murray 71060MA

Washer, Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

5-5

Murray 71037MA

Nut, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5-6

Murray 001X81MA

Bolt, Hex 5/16-18

$3.49

$

In Stock, only 2 left!

0

6

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 2 left!

0

7

Murray 699334

GRIP, Starter Rope

$13.99

$

Usually ships in 2-12 days

0

8

Murray 57587MA

Grommet, Rope

$3.99

$

Usually ships in 2-12 days

0

9

Murray 1502075MA

Washer
(Superseded to 57587MA)

$3.99

$

Usually ships in 2-12 days

0
