C950-52844-1 (1695771) - Craftsman 22" Snow Thrower, Canada (2009) Auger Housing Parts Diagram

22" Snow Thrower, Canada

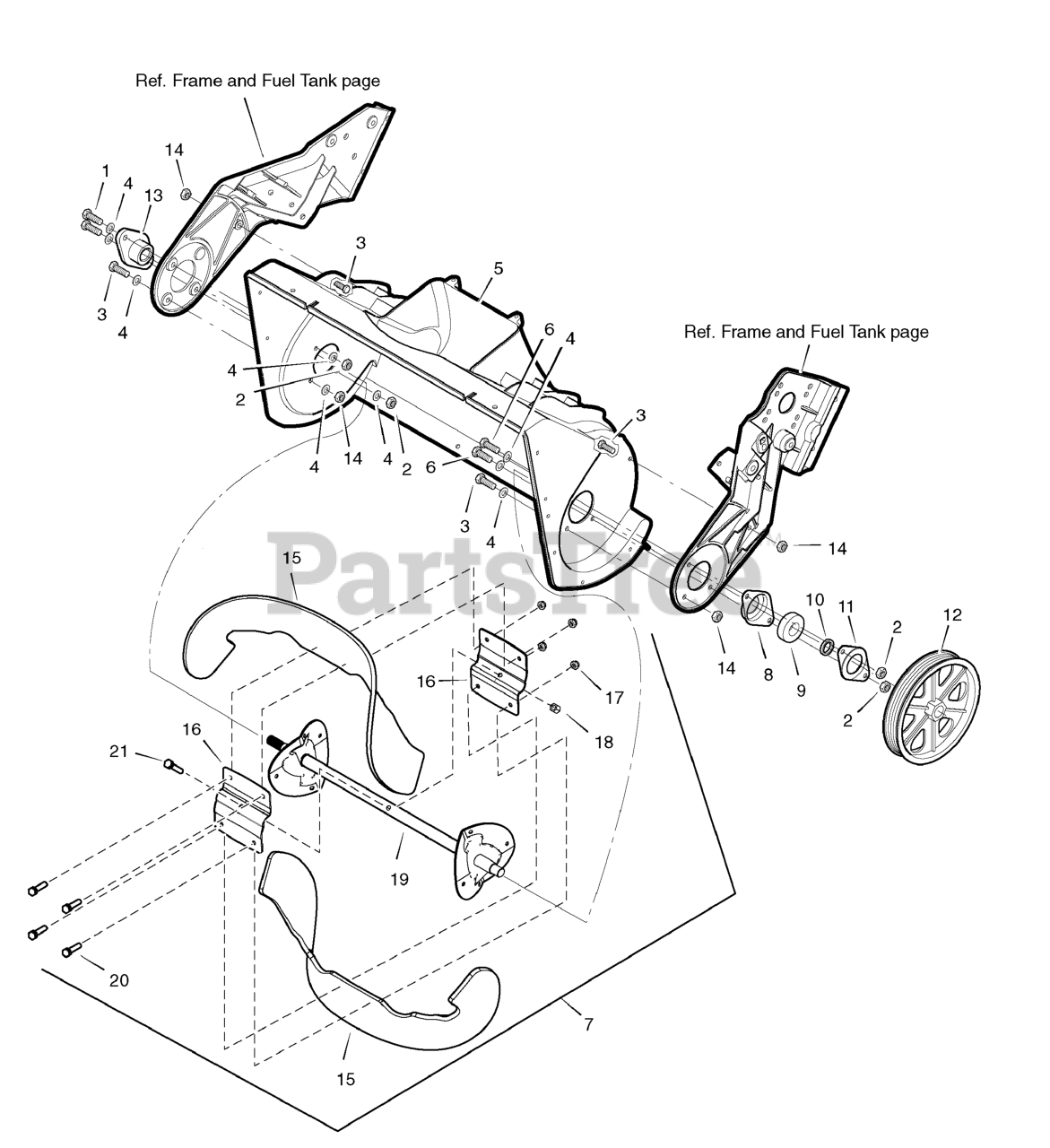

Auger Housing Parts Diagram

  • Title

1

Murray 710263MA

Screw, 1/4-20 x 1.00

$3.99

$

Usually ships in 2-12 days

0

2

Murray 73826MA

Nut, Hex 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

3

Murray 302628MA

Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 7

0

4

Murray 71067MA

Washer, Flat

$4.49

$

In Stock, only 1 left!

0

5

Murray 1742262YP

Housing Assembly, Auger

$243.99

$

Usually ships in 2-12 days

0

6

Murray 579052MA

Screw, 1/4-20 x .63

$9.99

$

In Stock, only 1 left!

0

7

Murray 1735771YP

Auger Assembly, 22"

$154.99

$

Usually ships in 2-12 days

0

8

Murray 580251MA

Retainer, Bearing

$16.99

$

Usually ships in 2-12 days

0

9

Murray 43846MA

Bearing
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

10

Murray 578101MA

Sleeve, Spacer

$4.99

$

Usually ships in 2-12 days

0

11

Murray 334287MA

Plate, Bearing Retainer

$7.49

$

In Stock, only 1 left!

0

12

Murray 333446MA

Pulley, Auger Drive V6

$22.99

$

Usually ships in 2-12 days

0

13

Murray 577023MA

Bearing, Flange

$5.99

$

In Stock, only 3 left!

0

14

Murray 73826MA

Nut, Centerlock 1/4-20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

15

Murray 1735606YP

Blade, Auger. Black

$

$

Not available

16

Murray 1735609YP

Bracket, Center Auger

$13.99

$

Usually ships in 2-12 days

0

17

Murray 1920397SM

Nut, Nylock
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

18

Murray 1919438SM

Nut, Hex-Lock, ESNA Light, 5/16-18, NC38, Blavk
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

19

Murray 1735610YP

Shaft, Sub

$107.99

$

Usually ships in 2-12 days

0

20

Murray 5025299X8YP

CAPSCREW

$4.49

$

Usually ships in 2-12 days

0

21

Murray 1921221SM

Capscrew, Hex-Head, 5/16-x 1.5, G5 Black
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0
