C950-52771-0 (1695386) - Craftsman 31" Snow Thrower, Canada (2007) Auger Housing Parts Diagram

31" Snow Thrower, Canada

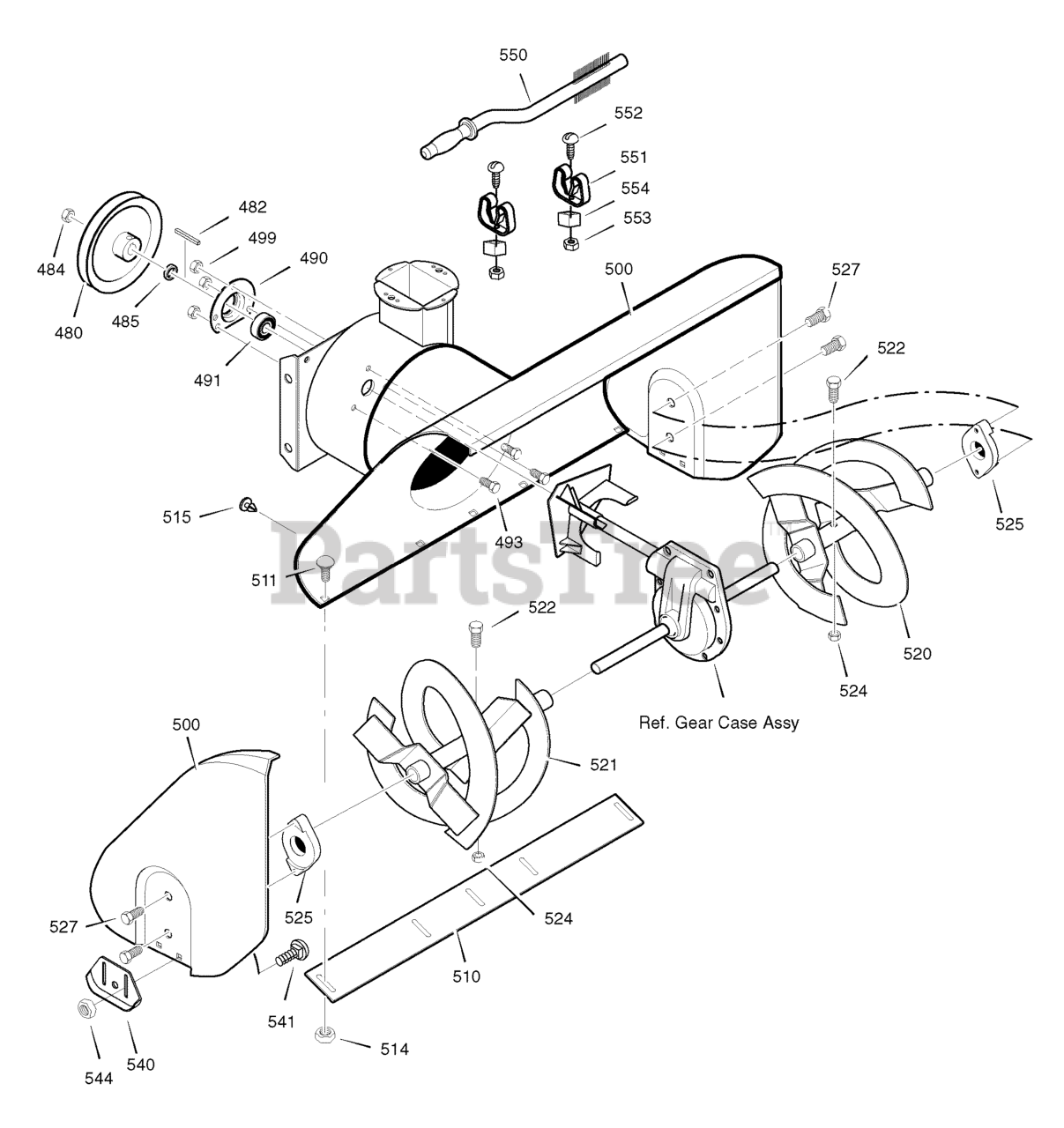

Auger Housing Parts Diagram

  • Title

480

Murray 583146MA

PULLEY, 4L 8.40 OD.

$

$

Not available

482

Murray 2001022MA

KEY, SQUARE 3/16 X 3/4

$4.49

$

In Stock, Qty 12

0

484

Murray 15X112MA

NUT, .50-20 HEXWDFLLK

$5.49

$

In Stock, only 2 left!

0

485

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 10

0

490

Murray 582957YZMA

RETAINER, BALL BEARING
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray 1501389MA

BEARING, BALL
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

493

Murray 001X45MA

BOLT, HEX 5/16-18 X .62
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

499

Murray 710026MA

NUT, 5/16-18 HEXWDFLLK
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

500

Murray 1502174E201MA

HOUSING, ASSEMBLY

$598.99

$

Usually ships in 2-12 days

0

510

Murray 760665E701MA

BLADE, SCRAPER

$42.99

$

Usually ships in 2-12 days

0

511

Murray 340720MA

BOLT, 1/4-18 X .75
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

514

Murray 710026MA

NUT, 5/16- 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

515

Murray 760040MA

PLUG, PANEL

$4.49

$

Usually ships in 2-12 days

0

520

Murray 760321E701MA

AUGER, ASSEMBLY, LH

$274.99

$

Usually ships in 2-12 days

0

521

Murray 760311E701MA

AUGER, ASSEMBLY, RH

$302.99

$

Usually ships in 2-12 days

0

522

Murray 578647MA

BOLT .467 X .235 X 2.00
(Superseded to 703335)

$6.49

$

Usually ships in 2-12 days

0

524

Murray 71391MA

NUT, 1/4-20

$4.49

$

Usually ships in 2-12 days

0

525

Murray 53757MA

BEARING, FLANGE

$9.99

$

In Stock, only 2 left!

0

527

Murray 25X021MA

SCREW, 5/16-18 X 0.75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

540

Murray 1741194HMA

SKID, HEIGHT ADJUST

$

$

Not available

541

Murray 7090731SM

BOLT, 5/16-18 X .50
(Superseded to 703798)

$4.49

$

In Stock, Qty 7

0

544

Murray 710026MA

NUT, 5/16- 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

550

Murray 1501576MA

BRUSH, CLEANOUT
(Superseded to 1736094YP)

$34.99

$

In Stock, Qty 8

0

551

Murray 1501672MA

CLIP, RETAINER

$8.99

$

In Stock, Qty 18

0

552

Murray 06X115MA

SCREW

$3.99

$

Usually ships in 2-12 days

0

553

Murray 15X146MA

NUT
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

554

Murray 578063MA

BLOCK

$5.49

$

In Stock, only 4 left!

0

--

Murray 1501216MA

KIT, SHEAR BOLT

$4.99

$

In Stock, Qty 20+

0

--

Murray 680230ZMA

WRENCH

$10.99

$

Usually ships in 2-12 days

0
