C950-52731-0 (1695384) - Craftsman 27" Snow Thrower, Canada (2007) Handle Assembly Parts Diagram

27" Snow Thrower, Canada

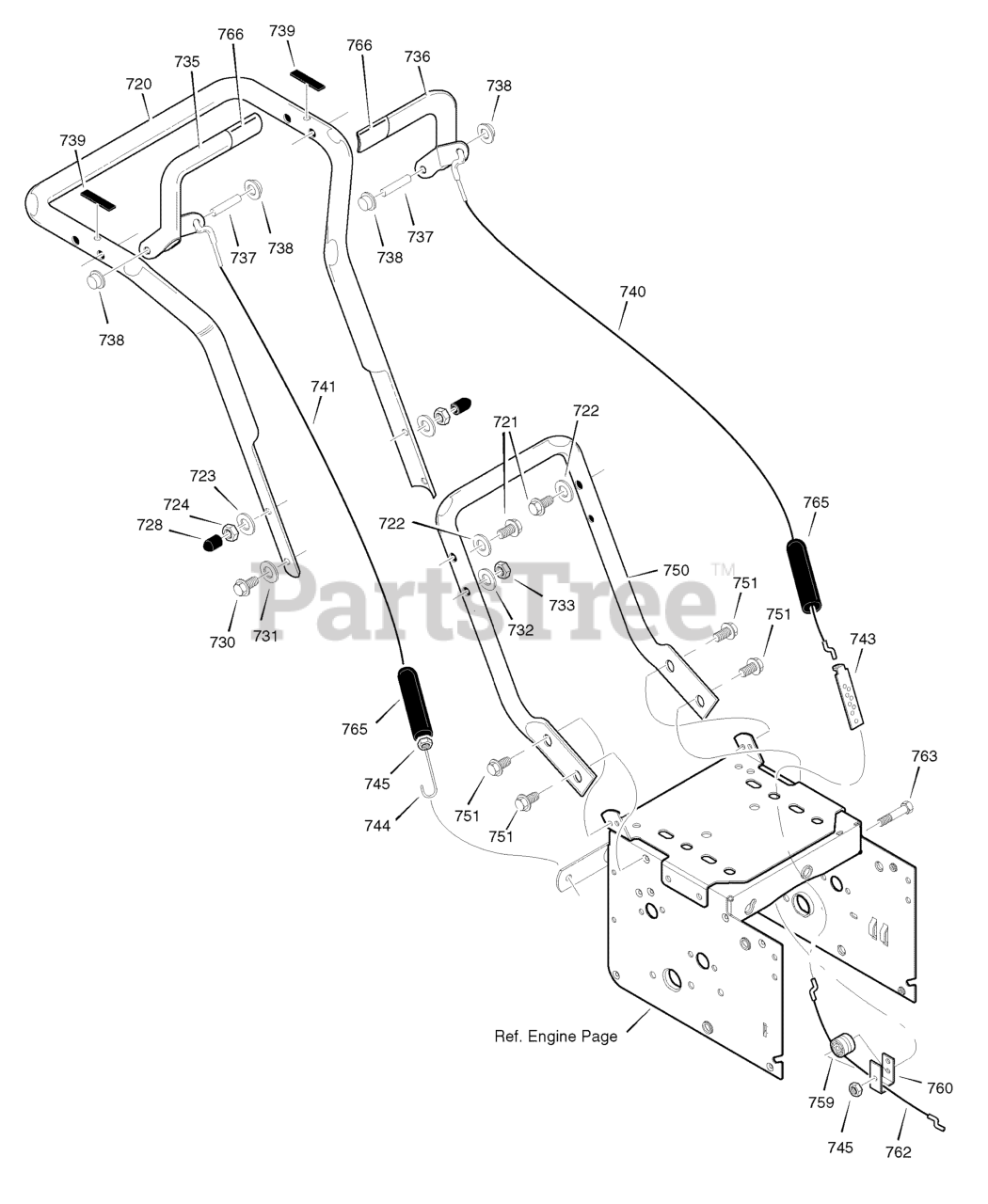

Handle Assembly Parts Diagram

  • Title
720

Murray 1741120HMA

HANDLE, UPPER

$119.99

$

Usually ships in 2-12 days

0

721

Murray 7288MA

SCREW, 3/8- 16 X 3

$4.49

$

Usually ships in 2-12 days

0

722

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

723

$3.49

$

Usually ships in 2-12 days

0

724

Murray 71044MA

NUT, 3/8- 16

$3.49

$

Usually ships in 2-12 days

0

728

Murray 7289MA

STOP, PLASTIC

$4.49

$

Usually ships in 2-12 days

0

730

Murray 71007MA

SCREW, 3/8- 16 X 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

731

Murray 71072MA

WASHER, Flat, 13/32

$4.49

$

In Stock, only 4 left!

0

732

$3.49

$

Usually ships in 2-12 days

0

733

Murray 71044MA

NUT, 3/8- 16

$3.49

$

Usually ships in 2-12 days

0

735

Murray 5146E701MA

HANDLE, RIGHT

$31.99

$

Usually ships in 2-12 days

0

736

Murray 5142E701MA

HANDLE, LEFT

$

$

Not available

737

Murray 760074MA

PIN, PIVOT CLUTCH

$10.99

$

Usually ships in 2-12 days

0

738

Murray 3535MA

NUT, PUSH ON CAP

$4.99

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER, RECTANGLE

$

$

Not available

740

Murray 1502113MA

CABLE, DRIVE

$22.99

$

In Stock, Qty 20+

0

741

Murray 761872MA

CABLE, AUGER CLUTCH

$15.99

$

In Stock, Qty 10

0

743

Murray 313441MA

BRACKET, CABLE ADJUSTER

$

$

Not available

744

Murray 1673MA

SPRING, AUGER CLUTCH

$8.99

$

In Stock, Qty 13

0

745

Murray 15X145MA

NUT, 1/4- 20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

750

Murray 1740580HMA

HANDLE, LOWER

$148.99

$

Usually ships in 2-12 days

0

751

Murray 25X021MA

SCREW, TAP 5/16-18 X .75
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

759

Murray 579860MA

SPOOL-CABLE, AUGRT CLUTCH

$5.99

$

In Stock, Qty 10

0

760

Murray 1501059YZMA

BRACKET, CABLE SPOOL YZ

$3.49

$

In Stock, only 1 left!

0

762

Murray 1501122MA

CABLE, LOWER DRIVE 12"

$8.49

$

In Stock, Qty 20+

0

763

Murray 001798MA

BOLT, HEX 1/4-20 X 1.5

$4.49

$

In Stock, only 1 left!

0

765

Murray 308146MA

BOOT, CLUTCH SPRING

$6.49

$

In Stock, only 3 left!

0

766

$4.49

$

Usually ships in 2-12 days

0
