C950-52731-0 (1695384) - Craftsman 27" Snow Thrower, Canada (2007) Control Panel Parts Diagram

27" Snow Thrower, Canada

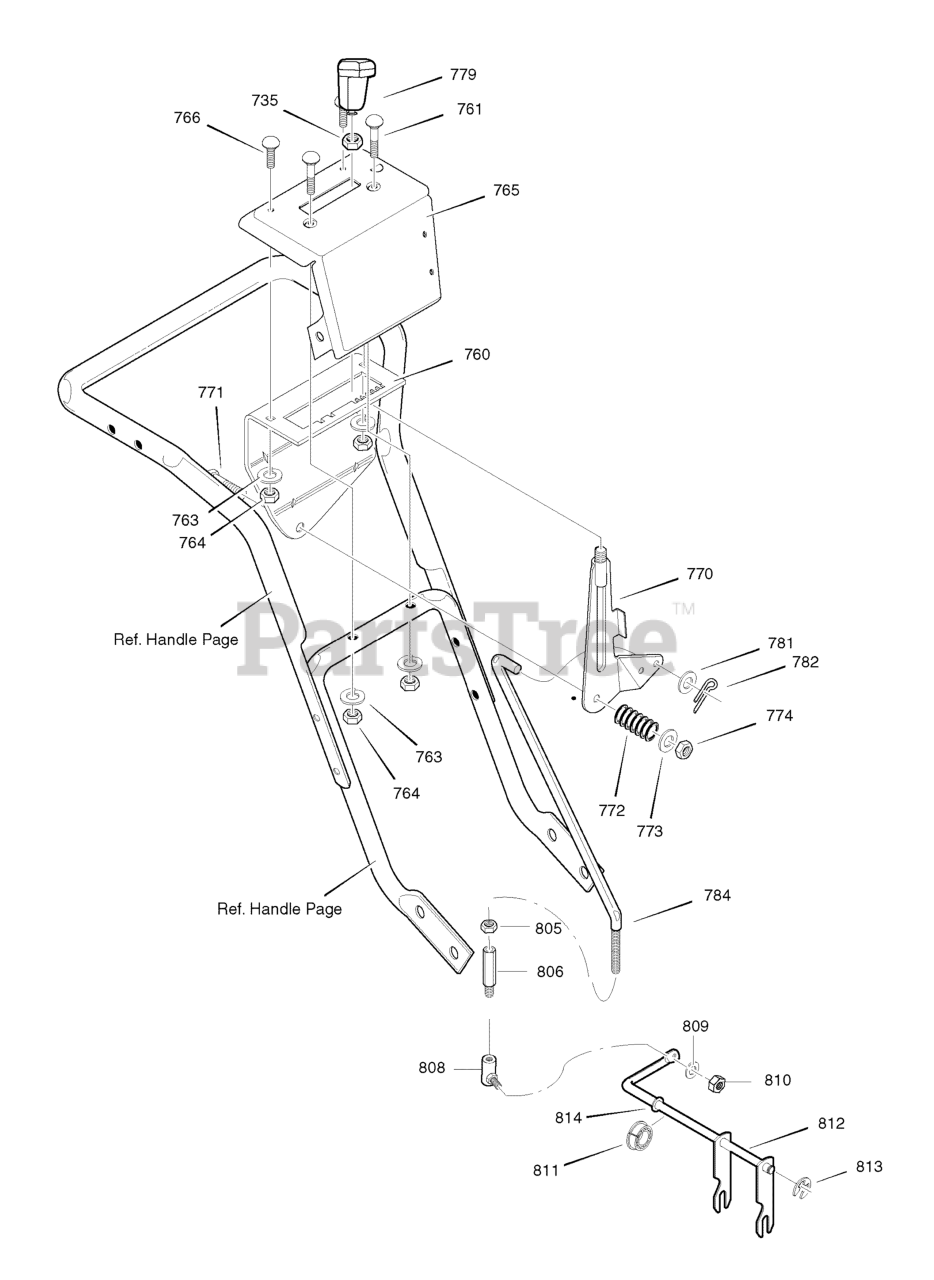

Control Panel Parts Diagram

  • Title
735

Murray 71045MA

NUT, 3/8-16 HEXJAM

$4.99

$

Usually ships in 2-12 days

0

760

Murray 1741119HMA

BRACKET, SHIFT CONTROL

$18.99

$

Usually ships in 2-12 days

0

761

Murray 762148MA

CARRIAGE BOLT, 1/4-20 X 2.00

$3.49

$

Usually ships in 2-12 days

0

763

Murray 71059MA

WASHER, SPLIT

$3.99

$

In Stock, only 3 left!

0

764

Murray 71034MA

NUT, 1/4-20 HEX
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

765

Murray 1741123SMA

CONTROL PANEL

$23.99

$

Usually ships in 2-12 days

0

766

Murray 3809MA

CARRIAGE BOLT, 1/4-20 X .63

$3.49

$

Usually ships in 2-12 days

0

770

Murray 1741118HMA

SHIFT LEVER ASSEMBLY

$26.99

$

Usually ships in 2-12 days

0

771

Murray 302900MA

SCREW, 5/16-18 X 1.75

$4.49

$

Usually ships in 2-12 days

0

772

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71071MA

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

774

Murray 71038MA

NUT, 5/16-18 NYLON HEX
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

779

$11.99

$

Usually ships in 2-12 days

0

781

Murray 71071MA

WASHER, FLAT .349 X .69 X .066
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

782

Murray 71081MA

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

784

Murray 1502019MA

ROD, SPEED CONTROL

$58.99

$

Usually ships in 2-12 days

0

805

Murray 71042MA

NUT, 5/16-24

$4.49

$

Usually ships in 2-12 days

0

806

Murray 6352MA

ADAPTER, SPEED ROD -YZ

$95.99

$

Usually ships in 2-12 days

0

808

Murray 50782MA

BALLJOINT, STEEL -YZ

$21.99

$

In Stock, Qty 7

0

809

Murray 71060MA

WASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

810

Murray 71042MA

NUT, 5/16-24

$4.49

$

Usually ships in 2-12 days

0

811

Murray 579944MA

FLANGED BEARING

$15.99

$

In Stock, only 1 left!

0

812

Murray 1501110YZMA

ROD ASSEMBLY, YOKE PANEL

$50.99

$

In Stock, only 2 left!

0

813

Murray 11X30MA

RING, RETAINER

$4.49

$

In Stock, Qty 12

0

814

$4.49

$

In Stock, Qty 20+

0
