C950-52725-0 (1695430) - Craftsman 27" Snow Thrower, Canada (2007) Headlight Parts Diagram

27" Snow Thrower, Canada

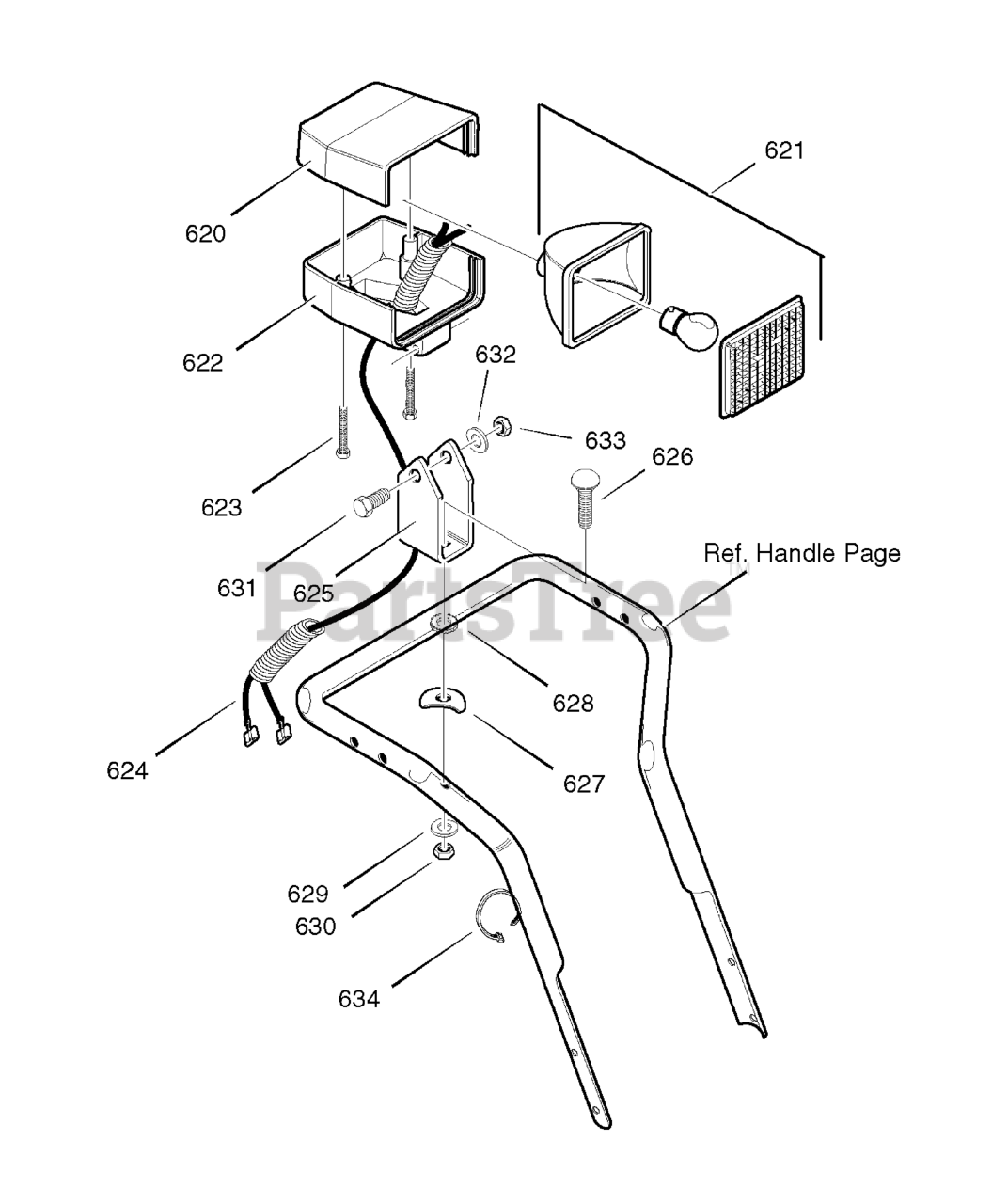

Headlight Parts Diagram

  • Title
620

Murray 583490MA

HOUSING, HEADLIGHT UPPER

$11.99

$

Usually ships in 2-12 days

0

621

Murray 762343MA

HEADLIGHT ASSEMBLY *

$69.99

$

In Stock, only 1 left!

0

622

Murray 1501514MA

HOUSING, HEADLIGHT LOWER

$19.99

$

Usually ships in 2-12 days

0

623

Murray 307781MA

SCREW, #8 X 1.75

$3.99

$

Usually ships in 2-12 days

0

624

Murray 1501455MA

WIRING HARNESS, HALOGEN

$12.99

$

Usually ships in 2-12 days

0

625

Murray 4029YZMA

BRACKET, HEADLIGHT

$30.99

$

Usually ships in 2-12 days

0

626

Murray 002X88MA

BOLT, CARRIAGE - 5/16-18 X 2.00

$3.49

$

In Stock, only 1 left!

0

627

Murray 580527MA

WASHER, SADDLE

$5.49

$

Usually ships in 2-12 days

0

628

Murray 71061MA

WASHER, EXLK .32 X .60 X .040

$3.49

$

Usually ships in 2-12 days

0

629

Murray 71060MA

WASHER, SPTLK .31 X .58 X .08
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

630

Murray 15X144MA

NUT, 5/16-18 REGHEX

$3.99

$

In Stock, only 1 left!

0

631

Murray 235MA

SCREW, 5/16-18 x 2.00

$4.49

$

Usually ships in 2-12 days

0

632

Murray 71060MA

WASHER, SPTLK
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

633

Murray 15X144MA

NUT, 5/16- 18 REGHEX

$3.99

$

In Stock, only 1 left!

0

634

Murray 032618MA

TIE, CABLE

$3.99

$

Usually ships in 2-12 days

0
