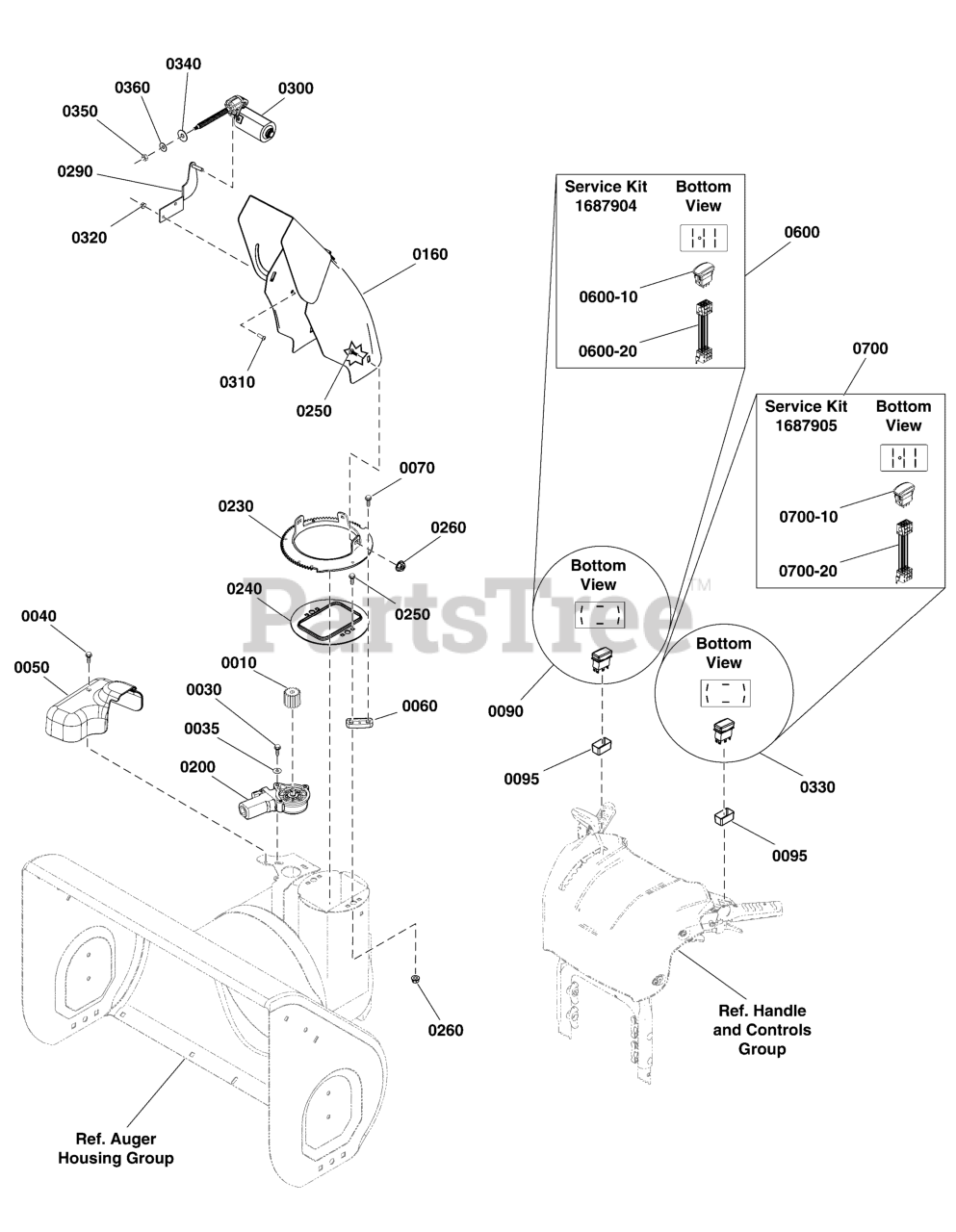

C950-52592-0 (1696675-00) - Craftsman 30" Snow Thrower, Canada (2016) Discharge Chute Group Parts Diagram

30" Snow Thrower, Canada

Discharge Chute Group Parts Diagram

  • Title

0010

Murray 1728967SM

PINION

$17.99

$

In Stock, only 4 left!

0

0030

Murray 1739621YP

SCREW, Torx Button Head, M5 x .8 x 14

$4.49

$

In Stock, Qty 13

0

0035

Murray 7091552SM

WASHER, Flat, 1/4

$3.99

$

In Stock, Qty 14

0

0040

Murray 703466

SCREW, Self Tapping, 1/4-20 x 3/4, GR5

$3.99

$

In Stock, Qty 10

0

0050

Murray 1752877YP

COVER, Electric Chute Rotation

$16.99

$

In Stock, only 1 left!

0

0060

Murray 7011938SM

RETAINER, Spout

$

$

Not available

0070

Murray 703062

SCREW, Hex Washer Head, Plastite, 10-14

$4.49

$

Usually ships in 2-12 days

0

0090

Murray 1754865YP

SWITCH, Chute Rotation
(Superseded to 1687904)

Note: (Used Before Serial No. 2017430819) (Order 0600 When Bottom View of Switch Terminal Pattern Matches 0090.)

$82.99

$

In Stock, Qty 14

0

0095

Murray 708156

COVER, Switch

Note: (Used Before Serial No. 2017430819)

$7.49

$

Usually ships in 2-12 days

0

0160

Murray 1738045ZYP

CHUTE

$133.99

$

Usually ships in 2-12 days

0

0200

Murray 1739309YP

MOTOR, Spout Rotator
(Superseded to 708703)

$86.99

$

In Stock, Qty 8

0

0230

Murray 1737465AYP

GEAR

$39.99

$

Usually ships in 2-12 days

0

0240

Murray 1737411YP

ADAPTER, Chute Ring

$19.99

$

Usually ships in 2-12 days

0

0250

Murray 703101

BOLT, Carriage, 1/4-20 x 3/4 , GR5

$3.99

$

In Stock, only 1 left!

0

0260

Murray 703061

NUT, 1/4-20, Keps, Conical Washer

$3.49

$

In Stock, Qty 11

0

0290

Murray 1738267BMYP

BRACKET, Weld Stud

$30.99

$

Usually ships in 2-12 days

0

0300

Murray 1737941YP

MOTOR, Chute Deflector

$143.99

$

In Stock, Qty 6

0

0310

Murray 1960715SM

SCREW, Truss Head Torx, 1/4-20 x 3/4
(Superseded to 770135)

$3.99

$

In Stock, Qty 15

0

0320

Murray 703463

NUT, Flange Nylock , 1/4-20

$4.49

$

In Stock, Qty 20+

0

0330

Murray 1737379YP

SWITCH, Chute Deflector
(Superseded to 1687905)

Note: (Used Before Serial No. 2017430819) (Order 0700 When Bottom View of Switch Terminal Pattern Matches 0330.)

$82.99

$

In Stock, Qty 14

0

0340

Murray 1738244YP

WASHER, Rubber

$4.49

$

In Stock, Qty 11

0

0350

Murray 703143

NUT, 1/4-20

$3.49

$

In Stock, Qty 6

0

0360

Murray 71067MA

WASHER, Flat, 1/4

$4.49

$

In Stock, only 1 left!

0

0600

Murray 1687904

WIRE HARNESS ADAPTER KIT, CHUTE ROTATION

Note: (Used Before Serial No. 2017430819) (Order 0600-10 When Bottom View of Switch Terminal Pattern Matches 0600.)

$82.99

$

In Stock, Qty 14

0

0600-10

Murray 709954

SWITCH, Chute Rotation

Note: (Used After Serial No. 2017430818)

$46.99

$

In Stock, Qty 6

0

0600-20

Murray 84003010

HARNESS, Wire

Note: (Used Before Serial No. 2017430819)

$45.99

$

In Stock, only 1 left!

0

0700

Murray 1687905

WIRE HARNESS ADAPTER KIT, DEFLECTOR CONT

Note: (Used Before Serial No. 2017430819) (Order 0700-10 When Bottom View of Switch Terminal Pattern Matches 0700.)

$82.99

$

In Stock, Qty 14

0

0700-10

Murray 709955

SWITCH, Deflector Control

Note: (Used After Serial No. 2017430818)

$35.99

$

Usually ships in 2-12 days

0

0700-20

Murray 84003010

HARNESS, Wire

Note: (Used Before Serial No. 2017430819)

$45.99

$

In Stock, only 1 left!
