C950-52544-0 (1696615-00) - Craftsman 24" Snow Thrower, Canada (2016) Auger Drive Group Parts Diagram

24" Snow Thrower, Canada

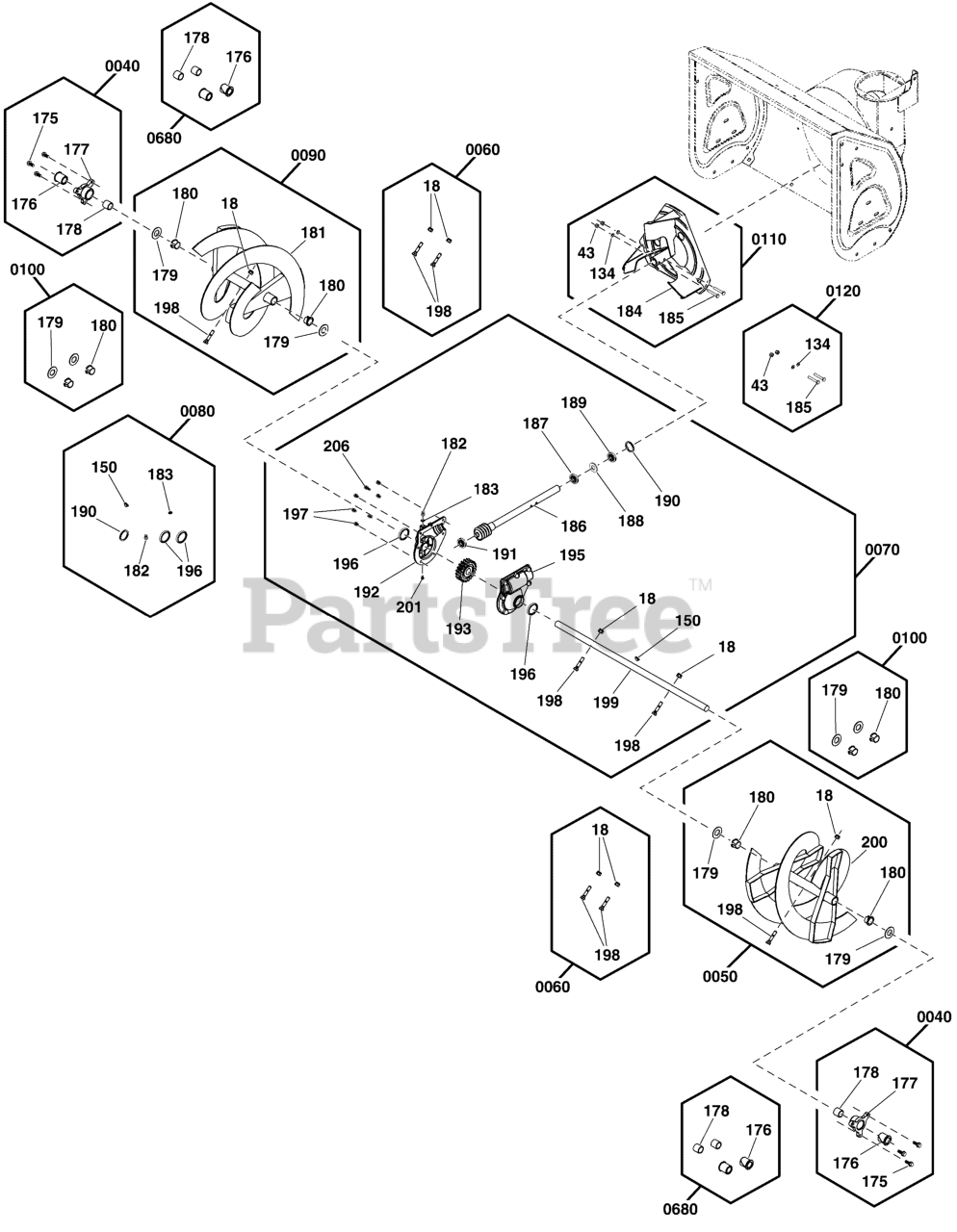

Auger Drive Group Parts Diagram

  • Title

0040

Murray 707553

KIT, Mounting Plate, Auger Housing

Note: (Incl. Ref. Nos. 175, 176, 177, 178)

$48.99

$

Usually ships in 2-12 days

0

175

SCREW, Hex Head, M8 X 16

$

$

Not available

176

BEARING, Auger Shaft

$

$

Not available

177

RETAINER, Auger Shaft

$

$

Not available

178

BEARING, Sleeve

$

$

Not available

0050

Murray 707744

KIT, Auger Assembly, Left

Note: (Incl. Ref. Nos. 18, 179, 180, 198, 200)

$102.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

179

WASHER, Flat

$

$

Not available

180

BEARING, Auger Shaft

$

$

Not available

198

BOLT, Hex, M8 X 38

$

$

Not available

200

AUGER, 24", Left, Black

$

$

Not available

0060

Murray 707555

KIT, SHEAR PIN, AUGER

Note: (Incl. Ref. Nos. 18, 198)

$12.99

$

In Stock, Qty 16

0

18

NUT, Lock, M8

$

$

Not available

198

BOLT, Hex, M8 X 38

$

$

Not available

0070

Murray 84001646

KIT, Gear Box, Auger
(Superseded to 84003700)

Note: (Incl. Ref. Nos. 18, 150, 182, 183, 186, 187, 188, 189, 190, 191, 192, 193, 195, 196, 197, 198, 199, 201, 206)

$271.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

150

KEY, WOODRUFF

$

$

Not available

182

ZERK, Grease Fitting

$

$

Not available

183

WASHER, Wave

$

$

Not available

186

SHAFT, Impeller, Wormgear

$

$

Not available

187

BEARING

$

$

Not available

188

WASHER, Flat

$

$

Not available

189

BEARING

$

$

Not available

190

SEAL, Oil

$

$

Not available

191

BEARING

$

$

Not available

192

GEAR CASE, Right

$

$

Not available

193

GEAR, Worm

$

$

Not available

195

GEAR CASE, Left

$

$

Not available

196

SEAL, Oil

$

$

Not available

197

SCREW, Hex Head, M6 X 20

$

$

Not available

198

BOLT, Hex, M8 X 38

$

$

Not available

199

SHAFT, Auger Out

$

$

Not available

201

BOLT, Phillips Head, M5 X 10

$

$

Not available

206

BOLT, Hex, M6 X 25

$

$

Not available

0080

Murray 84001647

KIT, Seal, Gearbox

Note: (Incl. Ref. Nos. 150, 182, 183, 190, 196)

$7.49

$

Usually ships in 2-12 days

0

150

KEY, WOODRUFF

$

$

Not available

182

ZERK, Grease Fitting

$

$

Not available

183

WASHER, Wave

$

$

Not available

190

SEAL, Oil

$

$

Not available

196

SEAL, Oil

$

$

Not available

0090

Murray 707763

KIT, Auger Assembly, Right

Note: (Incl. Ref. Nos. 18, 179, 180, 181, 198)

$109.99

$

Usually ships in 2-12 days

0

18

NUT, Lock, M8

$

$

Not available

179

WASHER, Flat

$

$

Not available

180

BEARING, Auger Shaft

$

$

Not available

181

AUGER, 24", Right, Black

$

$

Not available

198

BOLT, Hex, M8 X 38

$

$

Not available

0100

Murray 707554

KIT, Auger Shaft Hardware

Note: (Incl. Ref. Nos. 179, 180)

$20.99

$

Usually ships in 2-12 days

0

179

WASHER, Flat

$

$

Not available

180

BEARING, Auger Shaft

$

$

Not available

0110

Murray 707560

KIT, Impeller Assembly

Note: (Incl. Ref. Nos. 43, 134, 184, 185)

$93.99

$

In Stock, only 3 left!

0

43

NUT, Lock, M6

$

$

Not available

134

WASHER, 6x12x.7, Flat

$

$

Not available

184

IMPELLER

$

$

Not available

185

BOLT, Hex, M6 X 38

$

$

Not available

0120

Murray 707561

KIT,Shear Pin, Impeller

Note: (Incl. Ref. Nos. 18, 134, 185)

$15.99

$

In Stock, only 2 left!

0

43

NUT, Lock, M6

$

$

Not available

134

WASHER, 6x12x.7, Flat

$

$

Not available

185

BOLT, Hex, M6 X 38

$

$

Not available

0680

Murray 707552

KIT, Bearing, Mounting Plate

Note: (Incl. Ref. Nos. 176, 178)

$30.99

$

Usually ships in 2-12 days

0

176

BEARING, Auger Shaft

$

$

Not available

178

BEARING, Sleeve

$

$

Not available
