C950-52486-2 (1696555-02) - Craftsman 22" Snow Thrower, Canada (2017) Handles & Controls Group - Remote Parts Diagram

22" Snow Thrower, Canada

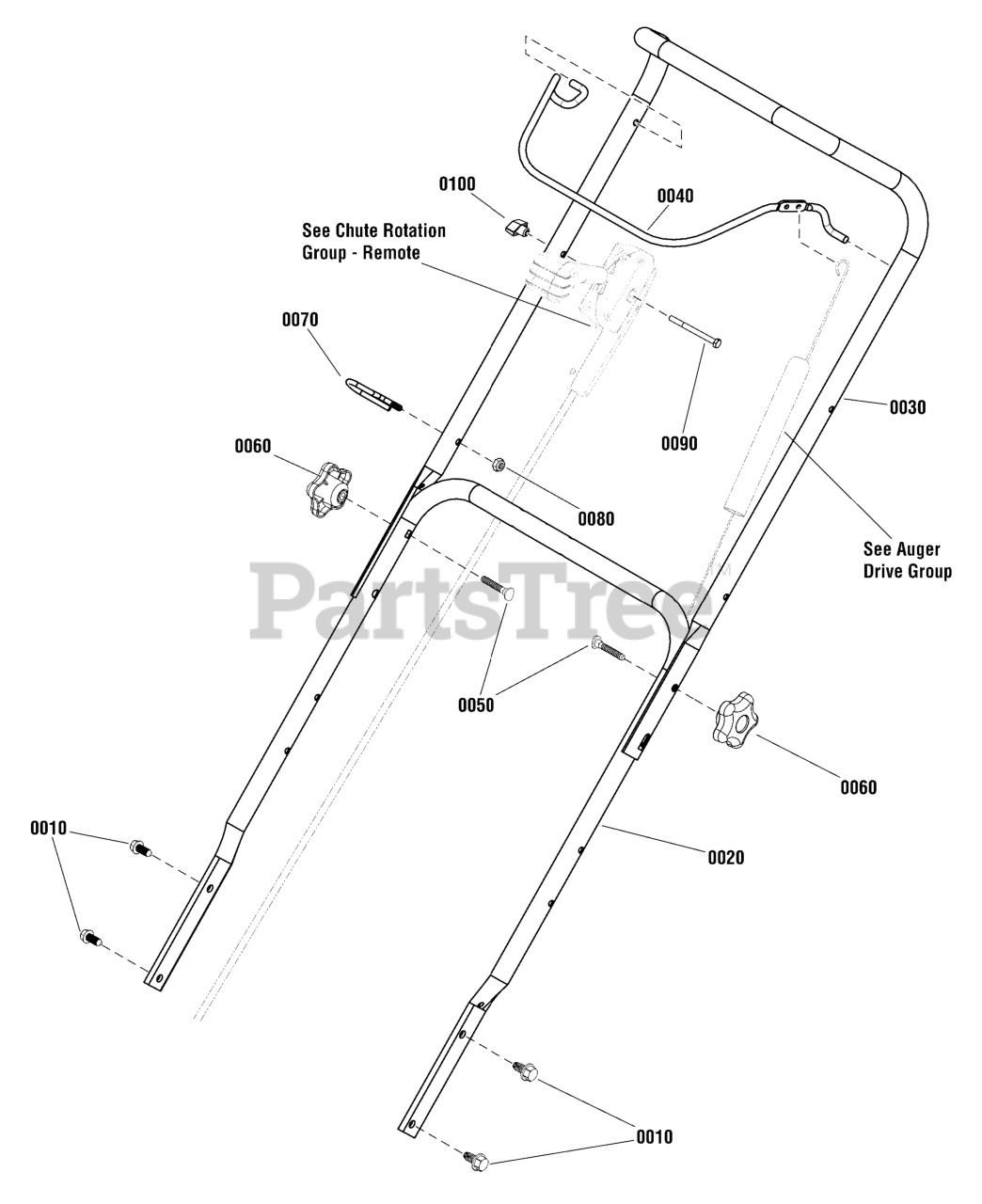

Handles & Controls Group - Remote Parts Diagram

  • Title
0010

Murray 703949

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8

$3.99

$

In Stock, only 3 left!

0

0020

Murray 770051

HANDLEBAR, Lower

$146.99

$

In Stock, only 1 left!

0

0030

Murray 705750

HANDLEBAR, Upper

$99.99

$

Usually ships in 2-12 days

0

0040

Murray 1739361BNYP

BAIL, Engine Stop

$34.99

$

Usually ships in 2-12 days

0

0050

Murray 703059

BOLT, Carriage, Curved Head, 5/16 x 2, G2

$4.49

$

In Stock, Qty 12

0

0060

Murray 7105085YP

KNOB, 5 Prong, 5/16-18

$3.99

$

In Stock, Qty 20+

0

0070

Murray 1739389YP

GUIDE, Rope

$5.49

$

Usually ships in 2-12 days

0

0080

Murray 703232

NUT, 1/4

$4.49

$

In Stock, Qty 20+

0

0090

Murray 704208

CAPSCREW, Hex Head, 1/4-20 x 3, G5

$4.49

$

Usually ships in 2-12 days

0

0100

Murray 194289GS

KNOB, Handle

$7.99

$

Usually ships in 2-12 days

0
