C950-52486-0 (1696555-01) - Craftsman 22" Snow Thrower, Canada (2016) Chute Rotation Group - Electric Parts Diagram
22" Snow Thrower, Canada

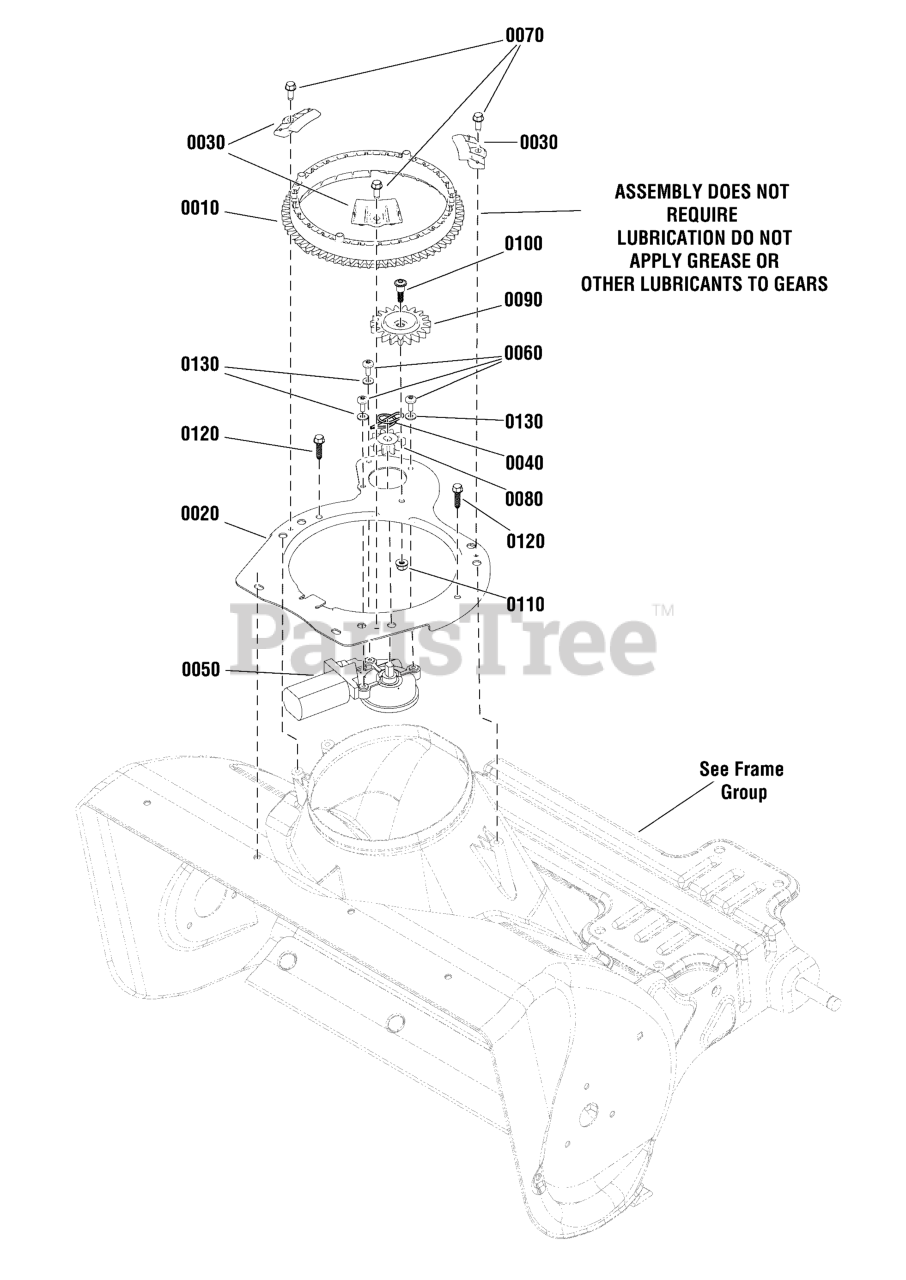

Chute Rotation Group - Electric Parts Diagram
Murray 706509
GEAR, Chute Rotation
$38.99
$
Usually ships in 2-12 days
Murray 706510
PLATE, Chute Mounting
$56.99
$
Usually ships in 2-12 days
0030
RETAINER, Chute
$
$
Not available
Murray 7091594SM
COTTER PIN, 1/2 Self, YZ
$2.99
$
In Stock, only 2 left!
$86.99
$
In Stock, Qty 7
Murray 1739621YP
SCREW, Torx Button Head, M5 x .8 x 14
$4.49
$
In Stock, Qty 13
Murray 703054
SCREW, Hex Washer Head, 1/4-20 x 5/8
$4.49
$
In Stock, Qty 5
Murray 706512
GEAR, 10T
$9.49
$
In Stock, only 3 left!
Murray 706513
GEAR, 19T
$14.99
$
Usually ships in 2-12 days
Murray 706514
SCREW, Shoulder Button Washer Head, 1/4-20 x 1.00
$7.49
$
In Stock, only 2 left!
Murray 703463
NUT, Flange Nylock , 1/4-20
$4.49
$
In Stock, Qty 20+
Murray 706516
SCREW, High-Low, 1/4-15 x 1.00
$3.49
$
In Stock, only 2 left!
Murray 7091552SM
WASHER, Flat, 1/4
$3.99
$
In Stock, Qty 14
