C950-52464-0 - Craftsman 30" Snow Thrower, Canada (2004) (Sears) Control Panel Parts Diagram

30" Snow Thrower, Canada

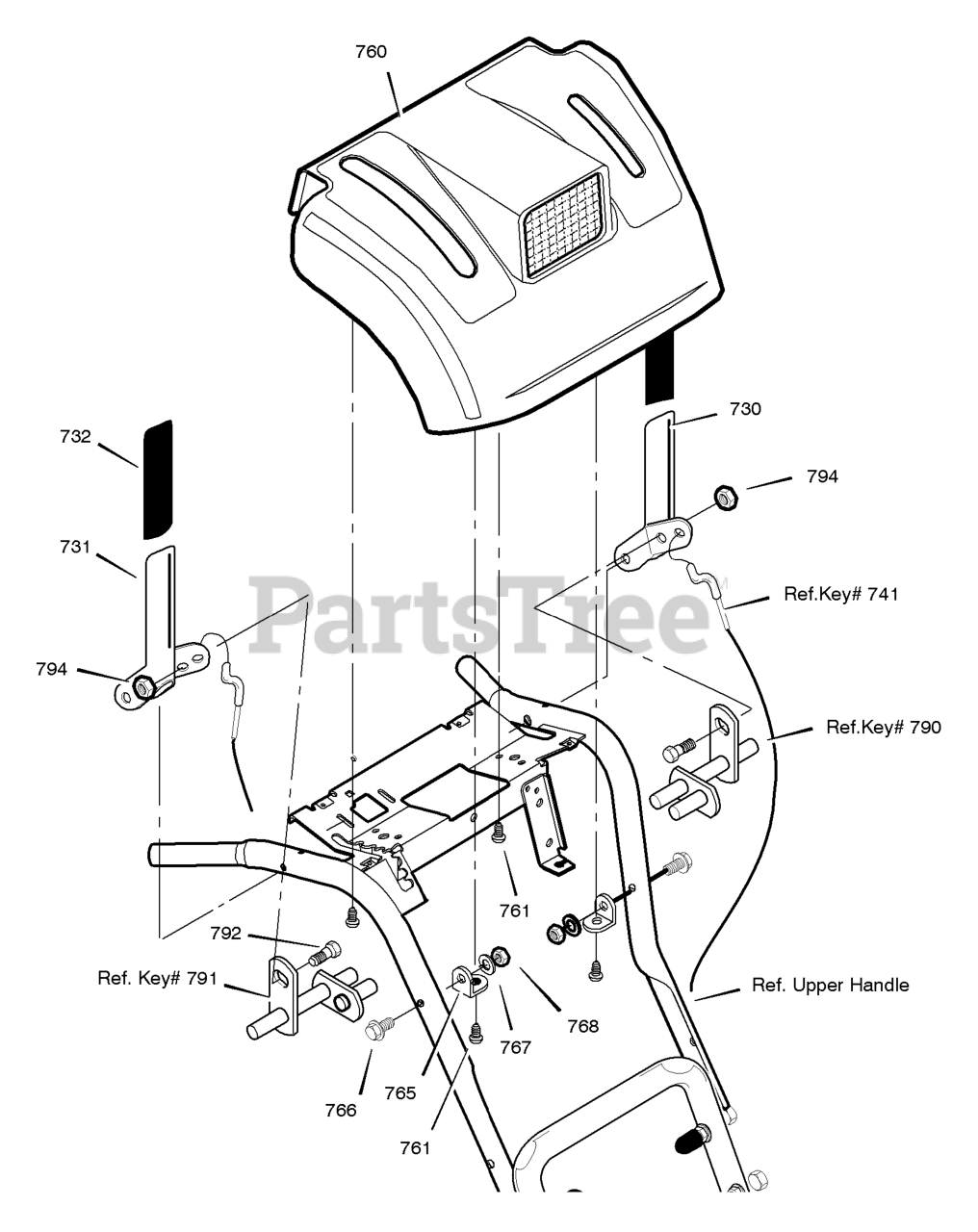

Control Panel Parts Diagram

  • Title
730

Murray 1501358E701MA

CLUTCH HANDLE LH

$158.99

$

Usually ships in 2-12 days

0

731

Murray 1501357E701MA

CLUTCH HANDLE RH

$152.99

$

Usually ships in 2-12 days

0

732

Murray 337380MA

GRIP, CLUTCH LEVER

$8.49

$

In Stock, only 2 left!

0

760

Murray 1501327

PANEL, CONTROL

$205.99

$

Usually ships in 2-12 days

0

761

$4.49

$

Usually ships in 2-12 days

0

765

Murray 578866E701

BRACKET, PANEL

$

$

Not available

766

Murray 302900MA

SCREW, 5/16-18 x 1.75

$4.49

$

Usually ships in 2-12 days

0

767

Murray 71060

WASHER
(Superseded to 1501670MA)

$

$

Not available

768

Murray 15X144

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

792

Murray 905531MA

BOLT, 1/4-20 X 0.50

$3.49

$

Usually ships in 2-12 days

0

794

Murray 908913MA

NUT, 1/4-20

$3.99

$

Usually ships in 2-12 days

0
